Objects

Objects are Python classes that take parameters as inputs and create 1D, 2D or 3D Shapes. For example, a Torus is defined by a major and minor radii. In Builder mode, objects are positioned with Locations while in Algebra mode, objects are positioned with the * operator and shown in these examples:

with BuildPart() as disk:
    with BuildSketch():
        Circle(a)
        with Locations((b, 0.0)):
            Rectangle(c, c, mode=Mode.SUBTRACT)
        with Locations((0, b)):
            Circle(d, mode=Mode.SUBTRACT)
    extrude(amount=c)

sketch = Circle(a) - Pos(b, 0.0) * Rectangle(c, c) - Pos(0.0, b) * Circle(d)
disk = extrude(sketch, c)

The following sections describe the 1D, 2D and 3D objects:

Align

2D/Sketch and 3D/Part objects can be aligned relative to themselves, either centered, or justified right or left of each Axis. The following diagram shows how this alignment works in 2D:

For example:

with BuildSketch():
    Circle(1, align=(Align.MIN, Align.MIN))

creates a circle who's minimal X and Y values are on the X and Y axis and is located in the top right corner. The Align enum has values: MIN, CENTER and MAX.

In 3D the align parameter also contains a Z align value but otherwise works in the same way.

Note that the align will also accept a single Align value which will be used on all axes - as shown here:

with BuildSketch():
    Circle(1, align=Align.MIN)

Mode

With the Builder API the mode parameter controls how objects are combined with lines, sketches, or parts under construction. The Mode enum has values:

ADD: fuse this object to the object under construction
SUBTRACT: cut this object from the object under construction
INTERSECT: intersect this object with the object under construction
REPLACE: replace the object under construction with this object
PRIVATE: don't interact with the object under construction at all

The Algebra API doesn't use the mode parameter - users combine objects with operators.

1D Objects

The following objects all can be used in BuildLine contexts. Note that 1D objects are not affected by Locations in Builder mode.

Airfoil

Airfoil described by 4 digit NACA profile

Bezier

Curve defined by control points and weights

BlendCurve

Curve blending curvature of two curves

BSpline

B-spline from control points and knot data

CenterArc

Arc defined by center, radius, & angles

ConstrainedArcs

Arc(s) constrained by other geometric objects

ConstrainedLines

Line(s) constrained by other geometric objects

DoubleTangentArc

Arc defined by point/tangent pair & other curve

EllipticalCenterArc

Elliptical arc defined by center, radii & angles

EllipticalStartArc

Elliptical arc defined by start, tangent, radii & angles

ParabolicCenterArc

Parabolic arc defined by vertex, focal length & angles

HyperbolicCenterArc

Hyperbolic arc defined by center, radii & angles

FilletPolyline

Polyline with filleted corners defined by pts and radius

Helix

Helix defined pitch, radius and height

IntersectingLine

Intersecting line defined by start, direction & other line

JernArc

Arc define by start point, tangent, radius and angle

Line

Line defined by end points

PolarLine

Line defined by start, angle and length

Polyline

Multiple line segments defined by points

RadiusArc

Arc defined by two points and a radius

SagittaArc

Arc defined by two points and a sagitta

Spline

Curve define by points

TangentArc

Arc defined by two points and a tangent

ThreePointArc

Arc defined by three points

ArcArcTangentLine

Line tangent defined by two arcs

ArcArcTangentArc

Arc tangent defined by two arcs

PointArcTangentLine

Line tangent defined by a point and arc

PointArcTangentArc

Arc tangent defined by a point, direction, and arc

Reference

class BaseLineObject(curve: ~build123d.topology.one_d.Wire, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

BaseLineObject specialized for Wire.

パラメータ:

curve (Wire) -- wire to create
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Airfoil(airfoil_code: str, n_points: int = 50, finite_te: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Create an airfoil described by a 4-digit (or fractional) NACA airfoil (e.g. '2412' or '2213.323').

The NACA four-digit wing sections define the airfoil_code by: - First digit describing maximum camber as percentage of the chord. - Second digit describing the distance of maximum camber from the airfoil leading edge in tenths of the chord. - Last two digits describing maximum thickness of the airfoil as percent of the chord.

パラメータ:

airfoil_code -- str The NACA 4-digit (or fractional) airfoil code (e.g. '2213.323').
n_points -- int Number of points per upper/lower surface.
finite_te -- bool If True, enforces a finite trailing edge (default False).
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

property camber_line: Edge: Camber line of the airfoil as an Edge.

camber_pos: float: Chordwise position of max camber (0–1)

code: str: NACA code string (e.g. "2412")

finite_te: bool: If True, trailing edge is finite

max_camber: float: Maximum camber as fraction of chord

static parse_naca4(value: str | float) → tuple[float, float, float][ソース]: Parse NACA 4-digit (or fractional) airfoil code into parameters.

thickness: float: Maximum thickness as fraction of chord

class Bezier(*cntl_pnts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], weights: list[float] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Bezier Curve

Create a non-rational bezier curve defined by a sequence of points and include optional weights to create a rational bezier curve. The number of weights must match the number of control points.

パラメータ:

cntl_pnts (sequence[VectorLike]) -- points defining the curve
weights (list[float], optional) -- control point weights. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class BlendCurve(curve0: ~build123d.topology.one_d.Edge, curve1: ~build123d.topology.one_d.Edge, continuity: ~build123d.build_enums.ContinuityLevel = ContinuityLevel.C2, end_points: tuple[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]] | None = None, tangent_scalars: tuple[float, float] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: BlendCurve

Create a smooth Bézier-based transition curve between two existing edges.

The blend is constructed as a cubic (C1) or quintic (C2) Bézier curve whose control points are determined from the position, first derivative, and (for C2) second derivative of the input curves at the chosen endpoints. Optional scalar multipliers can be applied to the endpoint tangents to control the "tension" of the blend.

パラメータ:

curve0 (Edge) -- First curve to blend from.
curve1 (Edge) -- Second curve to blend to.
continuity (ContinuityLevel, optional) -- Desired geometric continuity at the join: - ContinuityLevel.C0: position match only (straight line) - ContinuityLevel.C1: match position and tangent direction (cubic Bézier) - ContinuityLevel.C2: match position, tangent, and curvature (quintic Bézier) Defaults to ContinuityLevel.C2.
end_points (tuple[VectorLike, VectorLike] | None, optional) -- Pair of points specifying the connection points on curve0 and curve1. Each must coincide (within TOLERANCE) with the start or end of the respective curve. If None, the closest pair of endpoints is chosen. Defaults to None.
tangent_scalars (tuple[float, float] | None, optional) -- Scalar multipliers applied to the first derivatives at the start of curve0 and the end of curve1 before computing control points. Useful for adjusting the pull/tension of the blend without altering the base curves. Defaults to (1.0, 1.0).
mode (Mode, optional) -- Boolean operation mode when used in a BuildLine context. Defaults to Mode.ADD.

例外:

ValueError -- tangent_scalars must be a pair of float values.
ValueError -- If specified end_points are not coincident with the start or end of their respective curves.

サンプル

>>> blend = BlendCurve(curve_a, curve_b, ContinuityLevel.C1, tangent_scalars=(1.2, 0.8))
>>> show(blend)

class BSpline(control_points: ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], knots: ~collections.abc.Iterable[float], degree: int, weights: ~collections.abc.Iterable[float] | None = None, periodic: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: BSpline

An exact B-spline edge defined directly from control points and knot data.

BSpline creates an exact B-spline from control points, a knot sequence, and optional weights. Control points define the control polygon that pulls the curve, but the curve does not generally pass through them. Knots define the parameter-space structure of the spline: they determine where polynomial spans begin and end and how smoothly those spans join. Repeated knot values indicate knot multiplicity. For a spline of degree p, a knot with multiplicity m has continuity C^(p-m) at that location, so increasing multiplicity reduces smoothness. Repeating the first and last knots degree + 1 times creates a clamped spline that starts and ends at the first and last control points. Optional weights create a rational B-spline, allowing some control points to pull more strongly than others and enabling exact representation of conic sections.`

Unlike Spline, which creates an interpolated curve through a set of points using GeomAPI_Interpolate, BSpline preserves the supplied spline definition by building the underlying OCCT Geom_BSplineCurve from its poles, knot vector, optional weights, degree, and periodic flag.

パラメータ:

control_points (Iterable[VectorLike]) -- Control points (poles) defining the spline shape. These are not generally points on the curve.
knots (Iterable[float]) -- Knot sequence for the spline. Repeated knot values are allowed and are converted internally into unique knot values plus multiplicities as required by OCCT.
degree (int) -- Polynomial degree of the spline.
weights (Iterable[float] | None, optional) -- Optional per-control-point weights for rational B-splines. If omitted, the spline is non-rational.
periodic (bool, optional) -- Whether to create a periodic spline. Defaults to False.
mode (Mode, optional) -- Builder combination mode. Defaults to Mode.ADD.

Line Object: Center Arc

Create a circular arc defined by a center point and radius.

パラメータ:

center (VectorLike) -- center point of arc
radius (float) -- arc radius
start_angle (float) -- arc starting angle from x-axis
arc_size (float | Shape | Axis | Location | Plane | VectorLike) --
angular size of arc or an arc limit.

When a limit object is provided instead of a numeric angular size, CenterArc constructs the valid arc(s) from the given start point, trims them at their first intersection with the limit, and returns the one requiring the shortest travel from the start. Therefore, one can only generate arcs < 180° using a limit. If neither valid arc intersects the limit, a ValueError is raised.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

Line Object: Arc(s) constrained by other geometric objects.

The result is always a Curve containing one or more Edges. If you need to access Edge-specific properties or methods (such as arc_center), extract the edge or edges first:

result = ConstrainedArcs(...)
arc = result.edge()           # extract the Edge
center = arc.arc_center       # now Edge methods are available

Note that in Builder mode the selector parameter must be provided or all results will be combined into the BuildLine context. In Algebra mode the selector can be applied as a parameter or in the normal way to the ConstrainedArcs object. The content of the selector is the same in both cases.

サンプル

An arc built from three edge constraints.

Algebra:

l4 = PolarLine((0, 0), 4, 60)
l5 = PolarLine((0, 0), 4, 40)
a3 = CenterArc((0, 0), 4, 0, 90)
ex_a3 = (
    ConstrainedArcs(l4, l5, a3, sagitta=Sagitta.BOTH).edges().sort_by(Edge.length)[0]
)

Builder:

with BuildLine() as arc_ex3:
    l4 = PolarLine((0, 0), 4, 60)
    l5 = PolarLine((0, 0), 4, 40)
    a3 = CenterArc((0, 0), 4, 0, 90)
    ex_a3 = ConstrainedArcs(
        l4,
        l5,
        a3,
        sagitta=Sagitta.BOTH,
        selector=lambda arcs: arcs.sort_by(Edge.length)[0],
    )

class ConstrainedLines(tangency_one: tuple[Edge, Tangency] | Edge, tangency_two: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, selector: Callable[[ShapeList[Edge]], Edge | ShapeList[Edge]] = lambda lines: ..., mode: Mode = Mode.ADD)

Line Object: Lines(s) constrained by other geometric objects.

The result is always a Curve containing one or more Edges. If you need to access Edge-specific properties or methods (such as length), extract the edge or edges first:

result = ConstrainedLines(...)
lines = result.edges()      # extract the Edges
length = lines[1].length    # now Edge methods are available

Note that in Builder mode the selector parameter must be provided or all results will be combined into the BuildLine context. In Algebra mode the selector can be applied as a parameter or in the normal way to the ConstrainedArcs object. The content of the selector is the same in both cases.

class DoubleTangentArc(pnt: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], tangent: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], other: ~build123d.topology.composite.Curve | ~build123d.topology.one_d.Edge | ~build123d.topology.one_d.Wire, keep: ~build123d.build_enums.Keep = <Keep.TOP>, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Double Tangent Arc

Create a circular arc defined by a point/tangent pair and another line find a tangent to.

The arc specified with TOP or BOTTOM depends on the geometry and isn't predictable.

Contains a solver.

パラメータ:

pnt (VectorLike) -- start point
tangent (VectorLike) -- tangent at start point
other (Curve | Edge | Wire) -- line object to tangent
keep (Keep, optional) -- specify which arc if more than one, TOP or BOTTOM. Defaults to Keep.TOP
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

RunTimeError -- no double tangent arcs found

class EllipticalCenterArc(center: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], x_radius: float, y_radius: float, start_angle: float = 0.0, end_angle: float | None = None, *, arc_size: float | ~build123d.topology.shape_core.Shape | ~build123d.geometry.Axis | ~build123d.geometry.Location | ~build123d.geometry.Plane | ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = 90.0, rotation: float = 0.0, angular_direction: ~build123d.build_enums.AngularDirection | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Elliptical Center Arc

Create an elliptical arc defined by a center point, x- and y- radii.

パラメータ:

center (VectorLike) -- ellipse center
x_radius (float) -- x radius of the ellipse (along the x-axis of plane)
y_radius (float) -- y radius of the ellipse (along the y-axis of plane)
start_angle (float, optional) -- arc start angle from x-axis. Defaults to 0.0
end_angle (float | None) -- arc end angle from x-axis. Defaults to None
arc_size (float | Shape | Axis | Location | Plane | VectorLike) --
angular size of arc (negative to change direction) or an arc limit.

When a limit object is provided instead of a numeric angular size, EllipticalCenterArc constructs the valid arc(s) from the given start point, trims them at their first intersection with the limit, and returns the one requiring the shortest travel from the start. Therefore, one can only generate arcs < 180° using a limit. If neither valid arc intersects the limit, a ValueError is raised.
rotation (float, optional) -- angle to rotate arc. Defaults to 0.0
angular_direction (AngularDirection | None) -- arc direction. Defaults to None.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class EllipticalStartArc(start_pnt: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], start_tangent: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], x_radius: float, y_radius: float, arc_size: float, *, start_angle: float | None = None, major_axis_dir: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: EllipticalStartArc

Create a circular arc defined by a start point/tangent pair, radius and arc size.

パラメータ:

start_pnt (VectorLike) -- start point
start_tangent (VectorLike) -- tangent at start point
x_radius (float) -- x radius of the ellipse (along the x-axis of plane)
y_radius (float) -- y radius of the ellipse (along the y-axis of plane)
arc_size (float) -- angular size of arc (negative to change direction)
start_angle (float) -- angular position of the start point
major_axis_dir (VectorLike) -- direction of ellipse x-axis
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

注釈

One of start_angle or major_axis_dir must be provided.

class ParabolicCenterArc(vertex: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], focal_length: float, start_angle: float = 0.0, end_angle: float | None = None, *, arc_size: float | ~build123d.topology.shape_core.Shape | ~build123d.geometry.Axis | ~build123d.geometry.Location | ~build123d.geometry.Plane | ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = 90.0, rotation: float = 0.0, angular_direction: ~build123d.build_enums.AngularDirection | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Parabolic Center Arc

Create a parabolic arc defined by a vertex point and focal length (distance from focus to vertex).

パラメータ:

vertex (VectorLike) -- parabola vertex
focal_length (float) -- focal length the parabola (distance from the vertex to focus along the x-axis of plane)
start_angle (float, optional) -- arc start angle. Defaults to 0.0
end_angle (float | None, optional) -- arc end angle. Defaults to None
arc_size (float | Shape | Axis | Location | Plane | VectorLike) --
angular size of arc (negative to change direction) or an arc limit.

When a limit object is provided instead of a numeric angular size, ParabolicCenterArc constructs candidate arcs from the given start point, trims them at their first intersection with the limit, and returns the one requiring the shortest travel from the start. If neither valid arc intersects the limit, a ValueError is raised.
rotation (float, optional) -- angle to rotate arc. Defaults to 0.0
angular_direction (AngularDirection | None, optional) -- arc direction. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class HyperbolicCenterArc(center: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], x_radius: float, y_radius: float, start_angle: float = 0.0, end_angle: float | None = None, *, arc_size: float | ~build123d.topology.shape_core.Shape | ~build123d.geometry.Axis | ~build123d.geometry.Location | ~build123d.geometry.Plane | ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = 90.0, rotation: float = 0.0, angular_direction: ~build123d.build_enums.AngularDirection | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Hyperbolic Center Arc

Create a hyperbolic arc defined by a center point and focal length (distance from focus to vertex).

パラメータ:

center (VectorLike) -- hyperbola center
x_radius (float) -- x radius of the ellipse (along the x-axis of plane)
y_radius (float) -- y radius of the ellipse (along the y-axis of plane)
start_angle (float, optional) -- arc start angle from x-axis. Defaults to 0.0
end_angle (float | None, optional) -- arc end angle from x-axis. Defaults to None
arc_size (float | Shape | Axis | Location | Plane | VectorLike) --
angular size of arc (negative to change direction) or an arc limit.

When a limit object is provided instead of a numeric angular size, HyperbolicCenterArc constructs candidate arcs from the given start point, trims them at their first intersection with the limit, and returns the one requiring the shortest travel from the start. If neither valid arc intersects the limit, a ValueError is raised.
rotation (float, optional) -- angle to rotate arc. Defaults to 0.0
angular_direction (AngularDirection | None, optional) -- arc direction. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class FilletPolyline(*pts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], radius: float | ~collections.abc.Iterable[float], close: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Fillet Polyline Create a sequence of straight lines defined by successive points that are filleted to a given radius.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of two or more points
radius (float | Iterable[float]) -- radius to fillet at each vertex or a single value for all vertices. A radius of 0 will create a sharp corner (vertex without fillet).
close (bool, optional) -- close end points with extra Edge and corner fillets. Defaults to False
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Two or more points not provided
ValueError -- radius must be non-negative

class Helix(pitch: float, height: float, radius: float, center: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = (0, 0, 0), direction: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = (0, 0, 1), cone_angle: float = 0, lefthand: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Helix

Create a helix defined by pitch, height, and radius. The helix may have a taper defined by cone_angle.

If cone_angle is not 0, radius is the initial helix radius at center. cone_angle > 0 increases the final radius. cone_angle < 0 decreases the final radius.

パラメータ:

pitch (float) -- distance between loops
height (float) -- helix height
radius (float) -- helix radius
center (VectorLike, optional) -- center point. Defaults to (0, 0, 0)
direction (VectorLike, optional) -- direction of central axis. Defaults to (0, 0, 1)
cone_angle (float, optional) -- conical angle from direction. Defaults to 0
lefthand (bool, optional) -- left handed helix. Defaults to False
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class IntersectingLine(start: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], direction: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], other: ~build123d.topology.composite.Curve | ~build123d.topology.one_d.Edge | ~build123d.topology.one_d.Wire, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Intersecting Line Object: Line

Create a straight line defined by a point/direction pair and another line to intersect.

パラメータ:

start (VectorLike) -- start point
direction (VectorLike) -- direction to make line
other (Edge) -- line object to intersect
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

Line Object: Jern Arc

Create a circular arc defined by a start point/tangent pair, radius and arc size or arc limit.

パラメータ:

start (VectorLike) -- start point
tangent (VectorLike) -- tangent at start point
radius (float) -- arc radius
arc_size (float | Shape | Axis | Location | Plane | VectorLike) --
angular size of arc (negative to change direction) or an arc limit.

When a limit object is provided instead of a numeric angular size, JernArc constructs the valid tangent arc(s) from the given start point and tangent, trims them at their first intersection with the limit, and returns the one requiring the shortest travel from the start. If neither valid arc intersects the limit, a ValueError is raised.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

変数:

start (Vector) -- start point
end_of_arc (Vector) -- end point of arc
center_point (Vector) -- center of arc

Line Object: Line

Create a straight line defined by two points.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of two points
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Two point not provided

Line Object: Polar Line

Create a straight line defined by a start point, length, and angle. The length can specify the DIAGONAL, HORIZONTAL, or VERTICAL component of the triangle defined by the angle.

Alternatively, the length parameter can contain a limit to the length of the line in the form of another object. If the PolarLine doesn't contact the limit an error will be generated.

サンプル

p = PolarLine(start=(2, 0), length=Axis.Y, angle=135)

パラメータ:

start (VectorLike) -- start point
length (float | Shape | Axis | Location | Plane | VectorLike) -- line length (float) or limit limit
angle (float, optional) -- angle from the local x-axis
direction (VectorLike, optional) -- vector direction to determine angle
length_mode (LengthMode, optional) -- how length defines the line. Defaults to LengthMode.DIAGONAL
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Either angle or direction must be provided
ValueError -- Polar line doesn't intersect length limit

class Polyline(*pts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], close: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Polyline

Create a sequence of straight lines defined by successive points.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of two or more points
close (bool, optional) -- close by generating an extra Edge. Defaults to False
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Two or more points not provided

class RadiusArc(start_point: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], end_point: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], radius: float, short_sagitta: bool = True, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Radius Arc

Create a circular arc defined by two points and a radius.

パラメータ:

start_point (VectorLike) -- start point
end_point (VectorLike) -- end point
radius (float) -- arc radius
short_sagitta (bool) -- If True selects the short sagitta (height of arc from chord), else the long sagitta crossing the center. Defaults to True
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Insufficient radius to connect end points

class SagittaArc(start_point: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], end_point: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], sagitta: float, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Sagitta Arc

Create a circular arc defined by two points and the sagitta (height of the arc from chord).

パラメータ:

start_point (VectorLike) -- start point
end_point (VectorLike) -- end point
sagitta (float) -- arc height from chord between points
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Spline(*pts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], tangents: ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]] | None = None, tangent_scalars: ~collections.abc.Iterable[float] | None = None, periodic: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Spline

Create a spline defined by a sequence of points, optionally constrained by tangents. Tangents and tangent scalars must have length of 2 for only the end points or a length of the number of points.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of two or more points
tangents (Iterable[VectorLike], optional) -- tangent directions. Defaults to None
tangent_scalars (Iterable[float], optional) -- tangent scales. Defaults to None
periodic (bool, optional) -- make the spline periodic (closed). Defaults to False
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class TangentArc(*pts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], tangent: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], tangent_from_first: bool = True, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Line Object: Tangent Arc

Create a circular arc defined by two points and a tangent.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of two points
tangent (VectorLike) -- tangent to constrain arc
tangent_from_first (bool, optional) -- apply tangent to first point. Applying tangent to end point will flip the orientation of the arc. Defaults to True
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Two points are required

Line Object: Three Point Arc

Create a circular arc defined by three points.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of three points
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Three points must be provided

class ArcArcTangentLine(**kwargs)[ソース]

Line Object: Arc Arc Tangent Line

Create a straight line tangent to two arcs.

パラメータ:

start_arc (Curve | Edge | Wire) -- starting arc, must be GeomType.CIRCLE
end_arc (Curve | Edge | Wire) -- ending arc, must be GeomType.CIRCLE
side (Side) -- side of arcs to place tangent arc center, LEFT or RIGHT. Defaults to Side.LEFT
keep (Keep) -- which tangent arc to keep, INSIDE or OUTSIDE. Defaults to Keep.INSIDE
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class ArcArcTangentArc(**kwargs)[ソース]

Line Object: Arc Arc Tangent Arc

Create an arc tangent to two arcs and a radius.

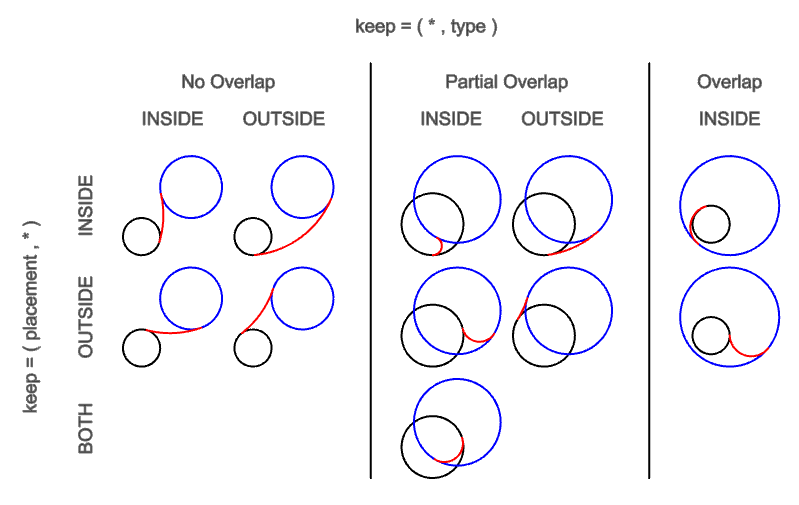

keep specifies tangent arc position with a Keep pair: (placement, type)

placement: start_arc is tangent INSIDE or OUTSIDE the tangent arc. BOTH is a special case for overlapping arcs with type INSIDE
type: tangent arc is INSIDE or OUTSIDE start_arc and end_arc

パラメータ:

start_arc (Curve | Edge | Wire) -- starting arc, must be GeomType.CIRCLE
end_arc (Curve | Edge | Wire) -- ending arc, must be GeomType.CIRCLE
radius (float) -- radius of tangent arc
side (Side) -- side of arcs to place tangent arc center, LEFT or RIGHT. Defaults to Side.LEFT
keep (Keep | tuple[Keep, Keep]) -- which tangent arc to keep, INSIDE or OUTSIDE. Defaults to (Keep.INSIDE, Keep.INSIDE)
short_sagitta (bool) -- If True selects the short sagitta (height of arc from chord), else the long sagitta crossing the center. Defaults to True
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class PointArcTangentLine(**kwargs)[ソース]

Line Object: Point Arc Tangent Line

Create a straight, tangent line from a point to a circular arc.

パラメータ:

point (VectorLike) -- intersection point for tangent
arc (Curve | Edge | Wire) -- circular arc to tangent, must be GeomType.CIRCLE
side (Side, optional) -- side of arcs to place tangent arc center, LEFT or RIGHT. Defaults to Side.LEFT
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class PointArcTangentArc(**kwargs)[ソース]

Line Object: Point Arc Tangent Arc

Create an arc defined by a point/tangent pair and another line which the other end is tangent to.

パラメータ:

point (VectorLike) -- starting point of tangent arc
direction (VectorLike) -- direction at starting point of tangent arc
arc (Union[Curve, Edge, Wire]) -- ending arc, must be GeomType.CIRCLE
side (Side, optional) -- select which arc to keep Defaults to Side.LEFT
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Arc must have GeomType.CIRCLE
ValueError -- Point is already tangent to arc
RuntimeError -- No tangent arc found

2D Objects

Arrow

Arrow with head and path for shaft

ArrowHead

Arrow head with multiple types

Circle

Circle defined by radius

DimensionLine

Dimension line

Ellipse

Ellipse defined by major and minor radius

ExtensionLine

Extension lines for distance or angles

Polygon

Polygon defined by points

Rectangle

Rectangle defined by width and height

RectangleRounded

Rectangle with rounded corners defined by width, height, and radius

RegularPolygon

RegularPolygon defined by radius and number of sides

SlotArc

SlotArc defined by arc and height

SlotCenterPoint

SlotCenterPoint defined by two points and a height

SlotCenterToCenter

SlotCenterToCenter defined by center separation and height

SlotOverall

SlotOverall defined by end-to-end length and height

TechnicalDrawing

A technical drawing with descriptions

Text

Text defined by string and font parameters

Trapezoid

Trapezoid defined by width, height and interior angles

Triangle

Triangle defined by one side & two other sides or interior angles

Reference

class BaseSketchObject(obj: ~build123d.topology.composite.Compound | ~build123d.topology.two_d.Face, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Base class for all BuildSketch objects

パラメータ:

face (Face) -- face to create
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Arrow(arrow_size: float, shaft_path: ~build123d.topology.one_d.Edge | ~build123d.topology.one_d.Wire, shaft_width: float, head_at_start: bool = True, head_type: ~build123d.build_enums.HeadType = <HeadType.CURVED>, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Arrow with shaft

パラメータ:

arrow_size (float) -- arrow head tip to tail length
shaft_path (Edge | Wire) -- line describing the shaft shape
shaft_width (float) -- line width of shaft
head_at_start (bool, optional) -- Defaults to True.
head_type (HeadType, optional) -- arrow head shape. Defaults to HeadType.CURVED.
mode (Mode, optional) -- _description_. Defaults to Mode.ADD.

class ArrowHead(size: float, head_type: ~build123d.build_enums.HeadType = <HeadType.CURVED>, rotation: float = 0, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: ArrowHead

パラメータ:

size (float) -- tip to tail length
head_type (HeadType, optional) -- arrow head shape. Defaults to HeadType.CURVED.
rotation (float, optional) -- rotation in degrees. Defaults to 0.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD.

class Circle(radius: float, arc_size: float = 360.0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Circle

Create a circle defined by radius.

パラメータ:

radius (float) -- circle radius
arc_size (float, optional) -- angular size of sector. Defaults to 360.
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class DimensionLine(path: ~build123d.topology.one_d.Wire | ~build123d.topology.one_d.Edge | list[~build123d.geometry.Vector | ~build123d.topology.zero_d.Vertex | tuple[float, float, float]], draft: ~drafting.Draft, sketch: ~build123d.topology.composite.Sketch | None = None, label: str | None = None, arrows: tuple[bool, bool] = (True, True), tolerance: float | tuple[float, float] | None = None, label_angle: bool = False, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: DimensionLine

Create a dimension line typically for internal measurements. Typically used for (but not restricted to) inside dimensions, a dimension line often as arrows on either side of a dimension or label.

There are three options depending on the size of the text and length of the dimension line: Type 1) The label and arrows fit within the length of the path Type 2) The text fit within the path and the arrows go outside Type 3) Neither the text nor the arrows fit within the path

パラメータ:

path (PathDescriptor) -- a very general type of input used to describe the path the dimension line will follow.
draft (Draft) -- instance of Draft dataclass
sketch (Sketch) -- the Sketch being created to check for possible overlaps. In builder mode the active Sketch will be used if None is provided.
label (str, optional) -- a text string which will replace the length (or arc length) that would otherwise be extracted from the provided path. Providing a label is useful when illustrating a parameterized input where the name of an argument is desired not an actual measurement. Defaults to None.
arrows (tuple[bool, bool], optional) -- a pair of boolean values controlling the placement of the start and end arrows. Defaults to (True, True).
tolerance (float | tuple[float, float], optional) -- an optional tolerance value to add to the extracted length value. If a single tolerance value is provided it is shown as ± the provided value while a pair of values are shown as separate + and - values. Defaults to None.
label_angle (bool, optional) -- a flag indicating that instead of an extracted length value, the size of the circular arc extracted from the path should be displayed in degrees.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD.

例外:

ValueError -- Only 2 points allowed for dimension lines
ValueError -- No output - no arrows selected

dimension: length of the dimension

class Ellipse(x_radius: float, y_radius: float, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Ellipse

Create an ellipse defined by x- and y- radii.

パラメータ:

x_radius (float) -- x radius of the ellipse (along the x-axis of plane)
y_radius (float) -- y radius of the ellipse (along the y-axis of plane)
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class ExtensionLine(border: ~build123d.topology.one_d.Wire | ~build123d.topology.one_d.Edge | list[~build123d.geometry.Vector | ~build123d.topology.zero_d.Vertex | tuple[float, float, float]], offset: float, draft: ~drafting.Draft, sketch: ~build123d.topology.composite.Sketch | None = None, label: str | None = None, arrows: tuple[bool, bool] = (True, True), tolerance: float | tuple[float, float] | None = None, label_angle: bool = False, measurement_direction: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Extension Line

Create a dimension line with two lines extending outward from the part to dimension. Typically used for (but not restricted to) outside dimensions, with a pair of lines extending from the edge of a part to a dimension line.

パラメータ:

border (PathDescriptor) -- a very general type of input defining the object to be dimensioned. Typically this value would be extracted from the part but is not restricted to this use.
offset (float) -- a distance to displace the dimension line from the edge of the object
draft (Draft) -- instance of Draft dataclass
label (str, optional) -- a text string which will replace the length (or arc length) that would otherwise be extracted from the provided path. Providing a label is useful when illustrating a parameterized input where the name of an argument is desired not an actual measurement. Defaults to None.
arrows (tuple[bool, bool], optional) -- a pair of boolean values controlling the placement of the start and end arrows. Defaults to (True, True).
tolerance (float | tuple[float, float], optional) -- an optional tolerance value to add to the extracted length value. If a single tolerance value is provided it is shown as ± the provided value while a pair of values are shown as separate + and - values. Defaults to None.
label_angle (bool, optional) -- a flag indicating that instead of an extracted length value, the size of the circular arc extracted from the path should be displayed in degrees. Defaults to False.
measurement_direction (VectorLike, optional) -- Vector line which to project the dimension against. Offset start point is the position of the start of border. Defaults to None.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD.

dimension: length of the dimension

class Polygon(*pts: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.NONE>, <Align.NONE>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Polygon

Create a polygon defined by given sequence of points.

Note: the order of the points defines the resulting normal of the Face in Algebra mode, where counter-clockwise order creates an upward normal while clockwise order a downward normal. In Builder mode, the Face is added with an upward normal.

パラメータ:

pts (VectorLike | Iterable[VectorLike]) -- sequence of points defining the vertices of the polygon
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.NONE, Align.NONE)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Rectangle(width: float, height: float, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Rectangle

Create a rectangle defined by width and height.

パラメータ:

width (float) -- rectangle width
height (float) -- rectangle height
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class RectangleRounded(width: float, height: float, radius: float, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Rectangle Rounded

Create a rectangle defined by width and height with filleted corners.

パラメータ:

width (float) -- rectangle width
height (float) -- rectangle height
radius (float) -- fillet radius
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class RegularPolygon(radius: float, side_count: int, major_radius: bool = True, rotation: float = 0, align: tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Regular Polygon

Create a regular polygon defined by radius and side count. Use major_radius to define whether the polygon circumscribes (along the vertices) or inscribes (along the sides) the radius circle.

パラメータ:

radius (float) -- construction radius
side_count (int) -- number of sides
major_radius (bool) -- If True the radius is the major radius (circumscribed circle), else the radius is the minor radius (inscribed circle). Defaults to True
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

apothem: float: radius of the inscribed circle or minor radius

radius: float: radius of the circumscribed circle or major radius

class SlotArc(arc: ~build123d.topology.one_d.Edge | ~build123d.topology.one_d.Wire, height: float, rotation: float = 0, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Slot Arc

Create a slot defined by a line and height. May be an arc, stright line, spline, etc.

パラメータ:

arc (Edge | Wire) -- center line of slot
height (float) -- diameter of end arcs
rotation (float, optional) -- angle to rotate object. Defaults to 0
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class SlotCenterPoint(center: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], point: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], height: float, rotation: float = 0, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Slot Center Point

Create a slot defined by the center of the slot and the center of one end arc. The slot will be symmetric about the center point.

パラメータ:

center (VectorLike) -- center point
point (VectorLike) -- center of arc point
height (float) -- diameter of end arcs
rotation (float, optional) -- angle to rotate object. Defaults to 0
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class SlotCenterToCenter(center_separation: float, height: float, rotation: float = 0, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Slot Center To Center

Create a slot defined by the distance between the centers of the two end arcs.

パラメータ:

center_separation (float) -- distance between arc centers
height (float) -- diameter of end arcs
rotation (float, optional) -- angle to rotate object. Defaults to 0
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class SlotOverall(width: float, height: float, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Slot Overall

Create a slot defined by the overall width and height.

パラメータ:

width (float) -- overall width of slot
height (float) -- diameter of end arcs
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class TechnicalDrawing(designed_by: str = 'build123d', design_date: ~datetime.date | None = None, page_size: ~build123d.build_enums.PageSize = <PageSize.A4>, title: str = 'Title', sub_title: str = 'Sub Title', drawing_number: str = 'B3D-1', sheet_number: int | None = None, drawing_scale: float = 1.0, nominal_text_size: float = 10.0, line_width: float = 0.5, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: TechnicalDrawing

The border of a technical drawing with external frame and text box.

パラメータ:

designed_by (str, optional) -- Defaults to "build123d".
design_date (date, optional) -- Defaults to date.today().
page_size (PageSize, optional) -- Defaults to PageSize.A4.
title (str, optional) -- drawing title. Defaults to "Title".
sub_title (str, optional) -- drawing sub title. Defaults to "Sub Title".
drawing_number (str, optional) -- Defaults to "B3D-1".
sheet_number (int, optional) -- Defaults to None.
drawing_scale (float, optional) -- displays as 1:value. Defaults to 1.0.
nominal_text_size (float, optional) -- size of title text. Defaults to 10.0.
line_width (float, optional) -- Defaults to 0.5.
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD.

margin = 5

page_sizes = {<PageSize.A0>: (1189, 841), <PageSize.A10>: (37, 26), <PageSize.A1>: (841, 594), <PageSize.A2>: (594, 420), <PageSize.A3>: (420, 297), <PageSize.A4>: (297, 210), <PageSize.A5>: (210, 148.5), <PageSize.A6>: (148.5, 105), <PageSize.A7>: (105, 74), <PageSize.A8>: (74, 52), <PageSize.A9>: (52, 37), <PageSize.LEDGER>: (431.79999999999995, 279.4), <PageSize.LEGAL>: (355.59999999999997, 215.89999999999998), <PageSize.LETTER>: (279.4, 215.89999999999998)}

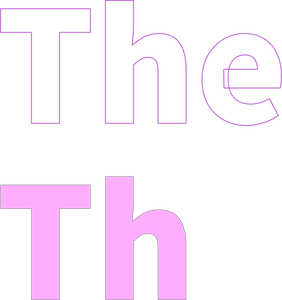

class Text(txt: str, font_size: float, font: str = 'Arial', font_path: ~os.PathLike[str] | str | None = None, font_style: ~build123d.build_enums.FontStyle = <FontStyle.REGULAR>, text_align: tuple[~build123d.build_enums.TextAlign, ~build123d.build_enums.TextAlign] = (<TextAlign.CENTER>, <TextAlign.CENTER>), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = None, path: ~build123d.topology.one_d.Edge | ~build123d.topology.one_d.Wire | None = None, position_on_path: float = 0.0, single_line_width: float | None = None, rotation: float = 0.0, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Text

Create text defined by text string and font size.

Fonts installed to the system can be specified by name and FontStyle. Fonts with subfamilies not in FontStyle should be specified with the subfamily name, e.g. "Arial Black". Alternatively, a specific font file can be specified with font_path.

Use available_fonts() to list available font names for font and FontStyles. Note: on Windows, fonts must be installed with "Install for all users" to be found by name.

Not all fonts have every FontStyle available, however ITALIC and BOLDITALIC will still italicize the font if the respective font file is not available.

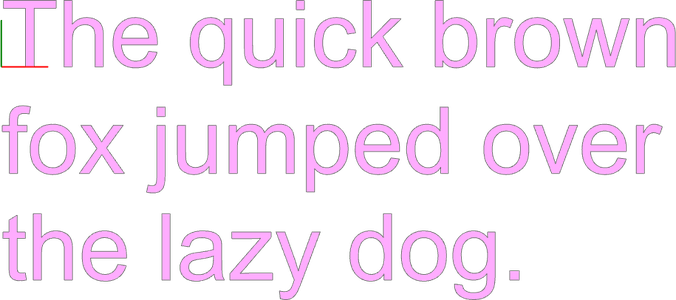

text_align specifies alignment of text inside the bounding box, while align the aligns the bounding box itself.

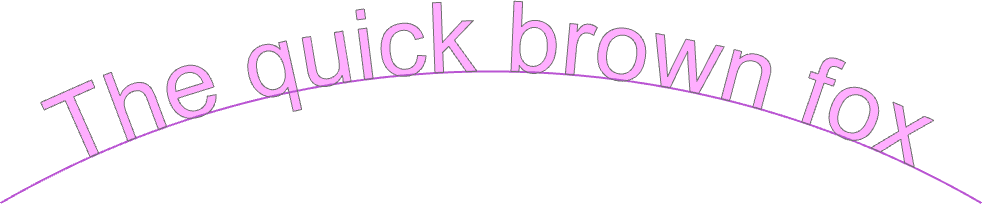

Optionally, the Text can be positioned on a non-linear edge or wire with a path and position_on_path.

パラメータ:

txt (str) -- text to render
font_size (float) -- size of the font in model units
font (str, optional) -- font name. Defaults to "Arial"
font_path (PathLike | str, optional) -- system path to font file. Defaults to None
font_style (Font_Style, optional) -- font style, REGULAR, BOLD, BOLDITALIC, or ITALIC. Defaults to Font_Style.REGULAR
text_align (tuple[TextAlign, TextAlign], optional) -- horizontal text align LEFT, CENTER, or RIGHT. Vertical text align BOTTOM, CENTER, TOP, or TOPFIRSTLINE. Defaults to (TextAlign.CENTER, TextAlign.CENTER)

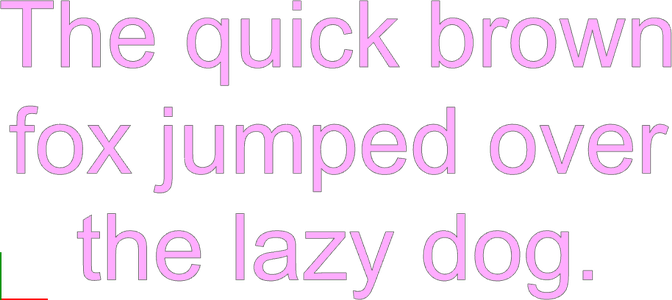

align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to None
path (Edge | Wire, optional) -- path for text to follow. Defaults to None
position_on_path (float, optional) -- the relative location on path to position the text, values must be between 0.0 and 1.0. Defaults to 0.0

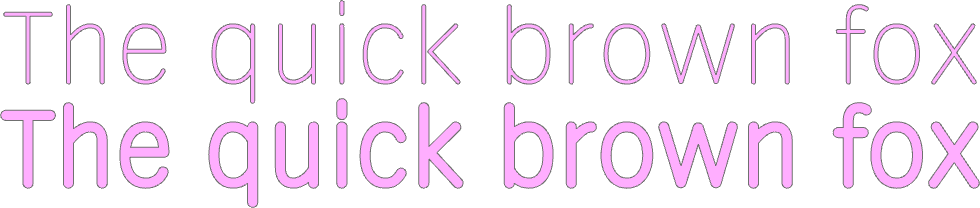

single_line_width (float, optional) -- width of outlined single line font. Defaults to 4% of font_size
rotation (float, optional) -- angle to rotate object. Defaults to 0
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Trapezoid(width: float, height: float, left_side_angle: float, right_side_angle: float | None = None, rotation: float = 0, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = (<Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Sketch Object: Trapezoid

Create a trapezoid defined by major width, height, and interior angle(s).

パラメータ:

width (float) -- trapezoid major width
height (float) -- trapezoid height
left_side_angle (float) -- bottom left interior angle
right_side_angle (float, optional) -- bottom right interior angle. If not provided, the trapezoid will be symmetric. Defaults to None
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- Give angles result in an invalid trapezoid

Sketch Object: Triangle

Create a triangle defined by one side length and any of two other side lengths or interior angles. The interior angles are opposite the side with the same designation (i.e. side 'a' is opposite angle 'A'). Side 'a' is the bottom side, followed by 'b' on the right, going counter-clockwise.

パラメータ:

a (float, optional) -- side 'a' length. Defaults to None
b (float, optional) -- side 'b' length. Defaults to None
c (float, optional) -- side 'c' length. Defaults to None
A (float, optional) -- interior angle 'A'. Defaults to None
B (float, optional) -- interior angle 'B'. Defaults to None
C (float, optional) -- interior angle 'C'. Defaults to None
rotation (float, optional) -- angle to rotate object. Defaults to 0
align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

例外:

ValueError -- One length and two other values were not provided

A: interior angle 'A' in degrees

B: interior angle 'B' in degrees

C: interior angle 'C' in degrees

a: length of side 'a'

b: length of side 'b'

c: length of side 'c'

edge_a: edge 'a'

edge_b: edge 'b'

edge_c: edge 'c'

vertex_A: vertex 'A'

vertex_B: vertex 'B'

vertex_C: vertex 'C'

3D Objects

Box

Box defined by length, width, height

Cone

Cone defined by radii and height

ConvexPolyhedron

Convex Polyhedron defined by points

CounterBoreHole

Counter bore hole defined by radii and depths

CounterSinkHole

Counter sink hole defined by radii and depth and angle

Cylinder

Cylinder defined by radius and height

Hole

Hole defined by radius and depth

Sphere

Sphere defined by radius and arc angles

Torus

Torus defined major and minor radii

Wedge

Wedge defined by lengths along multiple Axes

Reference

class BasePartObject(part: ~build123d.topology.composite.Part | ~build123d.topology.three_d.Solid, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = None, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Base class for all BuildPart objects & operations

パラメータ:

solid (Solid) -- object to create
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.ADD

class Box(length: float, width: float, height: float, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Box

Create a box defined by length, width, and height.

パラメータ:

length (float) -- box length
width (float) -- box width
height (float) -- box height
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class Cone(bottom_radius: float, top_radius: float, height: float, arc_size: float = 360, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Cone

Create a cone defined by bottom radius, top radius, and height.

パラメータ:

bottom_radius (float) -- bottom radius
top_radius (float) -- top radius, may be zero
height (float) -- cone height
arc_size (float, optional) -- angular size of cone. Defaults to 360
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class ConvexPolyhedron(points: ~collections.abc.Iterable[~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float]], rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = <Align.NONE>, mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: ConvexPolyhedron

Create a convex solid from the convex hull of the provided points.

パラメータ:

points (Iterable[VectorLike]) -- vertices of the polyhedron
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to Align.NONE
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class CounterBoreHole(radius: float, counter_bore_radius: float, counter_bore_depth: float, depth: float | None = None, mode: ~build123d.build_enums.Mode = <Mode.SUBTRACT>)[ソース]

Part Operation: Counter Bore Hole

Create a counter bore hole defined by radius, counter bore radius, counter bore and depth.

パラメータ:

radius (float) -- hole radius
counter_bore_radius (float) -- counter bore radius
counter_bore_depth (float) -- counter bore depth
depth (float, optional) -- hole depth, through part if None. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.SUBTRACT

class CounterSinkHole(radius: float, counter_sink_radius: float, depth: float | None = None, counter_sink_angle: float = 82, mode: ~build123d.build_enums.Mode = <Mode.SUBTRACT>)[ソース]

Part Operation: Counter Sink Hole

Create a countersink hole defined by radius, countersink radius, countersink angle, and depth.

パラメータ:

radius (float) -- hole radius
counter_sink_radius (float) -- countersink radius
depth (float, optional) -- hole depth, through part if None. Defaults to None
counter_sink_angle (float, optional) -- cone angle. Defaults to 82
mode (Mode, optional) -- combination mode. Defaults to Mode.SUBTRACT

class Cylinder(radius: float, height: float, arc_size: float = 360, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Cylinder

Create a cylinder defined by radius and height.

パラメータ:

radius (float) -- cylinder radius
height (float) -- cylinder height
arc_size (float, optional) -- angular size of cone. Defaults to 360.
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class Hole(radius: float, depth: float | None = None, mode: ~build123d.build_enums.Mode = <Mode.SUBTRACT>)[ソース]

Part Operation: Hole

Create a hole defined by radius and depth.

パラメータ:

radius (float) -- hole radius
depth (float, optional) -- hole depth, through part if None. Defaults to None
mode (Mode, optional) -- combination mode. Defaults to Mode.SUBTRACT

class Sphere(radius: float, arc_size1: float = -90, arc_size2: float = 90, arc_size3: float = 360, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Sphere

Create a sphere defined by a radius.

パラメータ:

radius (float) -- sphere radius
arc_size1 (float, optional) -- angular size of bottom hemisphere. Defaults to -90.
arc_size2 (float, optional) -- angular size of top hemisphere. Defaults to 90.
arc_size3 (float, optional) -- angular revolution about pole. Defaults to 360.
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class Torus(major_radius: float, minor_radius: float, minor_start_angle: float = 0, minor_end_angle: float = 360, major_angle: float = 360, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Torus

Create a torus defined by major and minor radii.

パラメータ:

major_radius (float) -- major torus radius
minor_radius (float) -- minor torus radius
minor_start_angle (float, optional) -- angle to start minor arc. Defaults to 0
minor_end_angle (float, optional) -- angle to end minor arc. Defaults to 360
major_angle (float, optional) -- angle to revolve minor arc. Defaults to 360
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

class Wedge(xsize: float, ysize: float, zsize: float, xmin: float, zmin: float, xmax: float, zmax: float, rotation: ~build123d.geometry.Rotation | tuple[float, float, float] = (0, 0, 0), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align, ~build123d.build_enums.Align] = (<Align.CENTER>, <Align.CENTER>, <Align.CENTER>), mode: ~build123d.build_enums.Mode = <Mode.ADD>)[ソース]

Part Object: Wedge

Create a wedge with a near face defined by xsize and z size, a far face defined by xmin to xmax and zmin to zmax, and a depth of ysize.

パラメータ:

xsize (float) -- length of near face along x-axis
ysize (float) -- length of part along y-axis
zsize (float) -- length of near face z-axis
xmin (float) -- minimum position far face along x-axis
zmin (float) -- minimum position far face along z-axis
xmax (float) -- maximum position far face along x-axis
zmax (float) -- maximum position far face along z-axis
rotation (RotationLike, optional) -- angles to rotate about axes. Defaults to (0, 0, 0)
align (Align | tuple[Align, Align, Align] | None, optional) -- align MIN, CENTER, or MAX of object. Defaults to (Align.CENTER, Align.CENTER, Align.CENTER)
mode (Mode, optional) -- combine mode. Defaults to Mode.ADD

Text

Create Text Object

Create text object or add to BuildSketch using Text:

text = "The quick brown fox jumped over the lazy dog."
Text(text, 10)

Specify font and style. Fonts have up to 4 font styles: REGULAR, BOLD, ITALIC, BOLDITALIC. All fonts can use ITALIC even if only REGULAR is defined.

Text(text, 10, "Arial", font_style=FontStyle.BOLD)

Find available fonts on system and available styles:

from pprint import pprint
pprint(available_fonts())

[
 ...
 Font(name='Arial', styles=('REGULAR', 'BOLD', 'BOLDITALIC', 'ITALIC')),
 Font(name='Arial Black', styles=('REGULAR',)),
 Font(name='Arial Narrow', styles=('REGULAR', 'BOLD', 'BOLDITALIC', 'ITALIC')),
 Font(name='Arial Rounded MT Bold', styles=('REGULAR',)),
 ...
]

Font faces like "Arial Black" or "Arial Narrow" must be specified by name rather than FontStyle:

Text(text, 10, "Arial Black")

Specify a font file directly by filename:

Text(text, 10, font_path="DejaVuSans.ttf")

Fonts added via font_path persist in the font list:

Text(text, 10, font_path="SourceSans3-VariableFont_wght.ttf")
pprint([f.name for f in available_fonts() if "Source Sans" in f.name])
Text(text, 10, "Source Sans 3 Medium")

['Source Sans 3',
 'Source Sans 3 Black',
 'Source Sans 3 ExtraBold',
 'Source Sans 3 ExtraLight',
 ...]

Add a font file to FontManager if a font is reused in the script or contains multiple font faces:

new_font_faces = FontManager().register_font("Roboto-VariableFont_wdth,wght.ttf")
pprint(new_font_faces)
Text(text, 10, "Roboto")
Text(text, 10, "Roboto Black")

['Roboto Thin',
 'Roboto ExtraLight',
 'Roboto Light',
 'Roboto',
  ...]

Placement

Multiline text has two methods of alignment. text_align aligns the text relative to its Location:

Text(text, 10, text_align=(TextAlign.LEFT, TextAlign.TOPFIRSTLINE))

align aligns the object bounding box relative to its Location after text alignment:

text = "The quick brown\nfox jumped over\nthe lazy dog."
Text(text, 10, align=(Align.MIN, Align.MIN))

Place text along an Edge or Wire with path and position_on_path:

text = "The quick brown fox"
path = RadiusArc((-50, 0), (50, 0), 100)
Text(
    text,
    10,
    path=path,
    position_on_path=.5,
    text_align=(TextAlign.CENTER, TextAlign.BOTTOM)
)

Single Line Fonts

"singleline" is a special font referencing Relief SingleLine CAD. Glyphs are represented as single lines rather than filled faces.

Text creates an outlined face by default. The outline width is controlled by single_line_width. This operation is slow with many glyphs.

Text(text, 10, "singleline")
Text(text, 10, "singleline", single_line_width=1)

Use Compound.make_text() to create unoutlined single-line text. Useful for routing, engraving, or drawing label paths.

Compound.make_text(text, 10, "singleline")

Common Issues

Missing Glyphs or Invalid Geometry

Modern variable-width fonts often contain glyphs with overlapping stroke outlines, which produce invalid geometry. ocp_vscode ignores invalid faces.

Text("The", 10, "Source Sans 3 Black")

FileNotFoundError

Ensure relative font_path specifications are relative to the current working directory.

Custom Objects

All of the objects presented above were created using one of three base object classes: BaseLineObject , BaseSketchObject , and BasePartObject . Users can use these base object classes to easily create custom objects that have all the functionality of the core objects.

Here is an example of a custom sketch object specially created as part of the design of this playing card storage box (see the playing_cards.py example):

class Club(BaseSketchObject):
    def __init__(
        self,
        height: float,
        rotation: float = 0,
        align: tuple[Align, Align] = (Align.CENTER, Align.CENTER),
        mode: Mode = Mode.ADD,
    ):
        with BuildSketch() as club:
            with BuildLine():
                l0 = Line((0, -188), (76, -188))
                b0 = Bezier(l0 @ 1, (61, -185), (33, -173), (17, -81))
                b1 = Bezier(b0 @ 1, (49, -128), (146, -145), (167, -67))
                b2 = Bezier(b1 @ 1, (187, 9), (94, 52), (32, 18))
                b3 = Bezier(b2 @ 1, (92, 57), (113, 188), (0, 188))
                mirror(about=Plane.YZ)
            make_face()
            scale(by=height / club.sketch.bounding_box().size.Y)
        super().__init__(obj=club.sketch, rotation=rotation, align=align, mode=mode)

Here the new custom object class is called Club and it's a sub-class of BaseSketchObject . The __init__ method contains all of the parameters used to instantiate the custom object, specially a height, rotation, align, and mode - your objects may contain a sub or super set of these parameters but should always contain a mode parameter such that it can be combined with a builder's object.

Next is the creation of the object itself, in this case a sketch of the club suit.

The final line calls the __init__ method of the super class - i.e. BaseSketchObject with its parameters.

That's it, now the Club object can be used anywhere a Circle would be used - with either the Algebra or Builder API.
