Direct API Reference

The Direct API is an interface layer between the primary user interface API (the Builders) and the OpenCascade (OCCT) API. This API is based on the CadQuery Direct API (thank you to all of the CadQuery contributors that made this possible) with the following major changes:

• PEP8 compliance

• New Axis class

• New ShapeList class enabling sorting and filtering of shape objects

• Literal strings replaced with Enums

Geometric Objects

The geometric classes defined by build123d are defined below. This parameters to the CAD objects described in the following section are frequently of these types.

class Axis(*args: Any, **kwargs: Any)

Axis defined by point and direction or by two points

パラメータ:

• origin (VectorLike) -- start point

• direction (VectorLike) -- direction

• end_point (VectorLike) -- point used with origin to define direction

• edge (Edge) -- origin & direction defined by start of edge

• location (Location) -- location to convert to axis

変数:

• position (Vector) -- the global position of the axis origin

• direction (Vector) -- the normalized direction vector

• wrapped (gp_Ax1) -- the OCP axis object

__copy__() → Axis

Return copy of self

__deepcopy__(_memo) → Axis

Return deepcopy of self

__neg__() → Axis

Flip direction operator -

angle_between(other: Axis) → float

calculate angle between axes

Computes the angular value, in degrees, between the direction of self and other between 0° and 360°.

パラメータ:

other (Axis) -- axis to compare to

戻り値:

angle between axes

戻り値の型:

float

property direction: Vector

The normalized direction of the Axis

intersect(*args, **kwargs)

Find intersection of axis and geometric object or shape

is_coaxial(other: Axis, angular_tolerance: float = 1e-05, linear_tolerance: float = 1e-05) → bool

are axes coaxial

True if the angle between self and other is lower or equal to angular_tolerance and the distance between self and other is lower or equal to linear_tolerance.

パラメータ:

• other (Axis) -- axis to compare to

• angular_tolerance (float, optional) -- max angular deviation. Defaults to 1e-5.

• linear_tolerance (float, optional) -- max linear deviation. Defaults to 1e-5.

戻り値:

axes are coaxial

戻り値の型:

bool

is_normal(other: Axis, angular_tolerance: float = 1e-05) → bool

are axes normal

Returns True if the direction of this and another axis are normal to each other. That is, if the angle between the two axes is equal to 90° within the angular_tolerance.

パラメータ:

• other (Axis) -- axis to compare to

• angular_tolerance (float, optional) -- max angular deviation. Defaults to 1e-5.

戻り値:

axes are normal

戻り値の型:

bool

is_opposite(other: Axis, angular_tolerance: float = 1e-05) → bool

are axes opposite

Returns True if the direction of this and another axis are parallel with opposite orientation. That is, if the angle between the two axes is equal to 180° within the angular_tolerance.

パラメータ:

• other (Axis) -- axis to compare to

• angular_tolerance (float, optional) -- max angular deviation. Defaults to 1e-5.

戻り値:

axes are opposite

戻り値の型:

bool

is_parallel(other: Axis, angular_tolerance: float = 1e-05) → bool

are axes parallel

Returns True if the direction of this and another axis are parallel with same orientation or opposite orientation. That is, if the angle between the two axes is equal to 0° or 180° within the angular_tolerance.

パラメータ:

• other (Axis) -- axis to compare to

• angular_tolerance (float, optional) -- max angular deviation. Defaults to 1e-5.

戻り値:

axes are parallel

戻り値の型:

bool

is_skew(other: Axis, tolerance: float = 1e-05) → bool

are axes skew

Returns True if this axis and another axis are skew, meaning they are neither parallel nor coplanar. Two axes are skew if they do not lie in the same plane and never intersect.

Mathematically, this means:

• The axes are not parallel (the cross product of their direction vectors is nonzero).

• The axes are not coplanar (the vector between their positions is not aligned with the plane spanned by their directions).

If either condition is false (i.e., the axes are parallel or coplanar), they are not skew.

パラメータ:

• other (Axis) -- axis to compare to

• tolerance (float, optional) -- max deviation. Defaults to 1e-5.

戻り値:

axes are skew

戻り値の型:

bool

located(new_location: Location)

relocates self to a new location possibly changing position and direction

property location: Location

Return self as Location

property position: Vector

The position or origin of the Axis

reverse() → Axis

Return a copy of self with the direction reversed

to_plane() → Plane

Return self as Plane

property wrapped

class BoundBox(*args, **kwargs)

A BoundingBox for a Shape

add(obj: tuple[float, float, float] | Vector | BoundBox, tol: float | None = None) → BoundBox

Returns a modified (expanded) bounding box

obj can be one of several things:

1. a 3-tuple corresponding to x,y, and z amounts to add

2. a vector, containing the x,y,z values to add

3. another bounding box, where a new box will be created that encloses both.

This bounding box is not changed.

パラメータ:

• obj -- tuple[float, float, float] | Vector | BoundBox]:

• tol -- float: (Default value = None)

Returns:

center() → Vector

Return center of the bounding box

property diagonal: float

body diagonal length (i.e. object maximum size)

static find_outside_box_2d(bb1: BoundBox, bb2: BoundBox) → BoundBox | None

Compares bounding boxes

Compares bounding boxes. Returns none if neither is inside the other. Returns the outer one if either is outside the other.

BoundBox.is_inside works in 3d, but this is a 2d bounding box, so it doesn't work correctly plus, there was all kinds of rounding error in the built-in implementation i do not understand.

パラメータ:

• bb1 -- BoundBox:

• bb2 -- BoundBox:

Returns:

classmethod from_topo_ds(shape: TopoDS_Shape, tolerance: float | None = None, optimal: bool = True) → BoundBox

Constructs a bounding box from a TopoDS_Shape

パラメータ:

• shape -- TopoDS_Shape:

• tolerance -- float: (Default value = None)

• optimal -- bool: This algorithm builds precise bounding box (Default value = True)

Returns:

is_inside(second_box: BoundBox) → bool

Is the provided bounding box inside this one?

パラメータ:

b2 -- BoundBox:

Returns:

property measure: float

Return the overall Lebesgue measure of the bounding box.

• For 1D objects: length

• For 2D objects: area

• For 3D objects: volume

overlaps(other: BoundBox, tolerance: float = 1e-06) → bool

Check if this bounding box overlaps with another.

パラメータ:

• other -- BoundBox to check overlap with

• tolerance -- Distance tolerance for overlap detection

戻り値:

True if bounding boxes overlap (share any volume), False otherwise

to_align_offset(align: Align | None | tuple[Align | None, Align | None] | tuple[Align | None, Align | None, Align | None]) → Vector

Amount to move object to achieve the desired alignment

class Color(*args, **kwargs)

Color object based on OCCT Quantity_ColorRGBA.

変数:

wrapped (Quantity_ColorRGBA) -- the OCP color object

__copy__() → Color

Return copy of self

__deepcopy__(_memo) → Color

Return deepcopy of self

classmethod categorical_set(color_count: int, starting_hue: str | tuple[str, float | int] | tuple[float | int, float | int, float | int] | tuple[float | int, float | int, float | int, float | int] | int | tuple[int, int] | Color | Quantity_ColorRGBA | float = 0.0, alpha: float | Iterable[float] = 1.0) → list[Color]

Generate a palette of evenly spaced colors.

Creates a list of visually distinct colors suitable for representing discrete categories (such as different parts, assemblies, or data series). Colors are evenly spaced around the hue circle and share consistent lightness and saturation levels, resulting in balanced perceptual contrast across all hues.

Produces palettes similar in appearance to the Tableau 10 and D3 Category10 color sets—both widely recognized standards in data visualization for their clarity and accessibility. These values have been empirically chosen to maintain consistent perceived brightness across hues while avoiding overly vivid or dark colors.

パラメータ:

• color_count (int) -- Number of colors to generate.

• starting_hue (ColorLike | float) -- Either a Color-like object or a hue value in the range [0.0, 1.0] that defines the starting color.

• alpha (float | Iterable[float]) -- Alpha value(s) for the colors. Can be a single float or an iterable of length color_count.

戻り値:

List of generated colors.

戻り値の型:

list[Color]

例外:

ValueError -- If starting_hue is out of range or alpha length mismatch.

class Location(*args: Any, **kwargs: Any)

Location in 3D space. Depending on usage can be absolute or relative.

This class wraps the TopLoc_Location class from OCCT. It can be used to move Shape objects in both relative and absolute manner. It is the preferred type to locate objects in build123d.

変数:

wrapped (TopLoc_Location) -- the OCP location object

__copy__() → Location

Lib/copy.py shallow copy

__deepcopy__(_memo) → Location

Lib/copy.py deep copy

__eq__(other: object) → bool

Compare Locations

__mul__(other: Location | Iterable[Location]) → Location | list[Location]

Combine locations

__neg__() → Location

Flip the orientation without changing the position operator -

__pow__(exponent: int) → Location

center() → Vector

Return center of the location - useful for sorting

intersect(*args, **kwargs)

Find intersection of location and geometric object or shape

inverse() → Location

Inverted location

mirror(mirror_plane: Plane) → Location

Return a new Location mirrored across the given plane.

This method reflects both the position and orientation of the current Location across the specified mirror_plane using affine vector mathematics.

Due to the mathematical properties of reflection:

• The true mirror of a right-handed coordinate system is a left-handed one.

However, build123d requires all coordinate systems to be right-handed. Therefore, this implementation: - Reflects the X and Z directions across the mirror plane - Recomputes the Y direction as: Y = X × Z

This ensures the resulting Location maintains a valid right-handed frame, while remaining as close as possible to the geometric mirror.

パラメータ:

mirror_plane (Plane) -- The plane to mirror across.

戻り値:

A new mirrored Location that preserves right-handedness.

戻り値の型:

Location

property orientation: Vector

Extract orientation/rotation component of self

戻り値:

orientation part of Location

戻り値の型:

Vector

property position: Vector

Extract Position component of self

戻り値:

Position part of Location

戻り値の型:

Vector

to_axis() → Axis

Convert the location into an Axis

to_tuple() → tuple[tuple[float, float, float], tuple[float, float, float]]

Convert the location to a translation, rotation tuple.

property wrapped: TopLoc_Location

property x_axis: Axis

Default X axis when used as a plane

property y_axis: Axis

Default Y axis when used as a plane

property z_axis: Axis

Default Z axis when used as a plane

class LocationEncoder(*, skipkeys=False, ensure_ascii=True, check_circular=True, allow_nan=True, sort_keys=False, indent=None, separators=None, default=None)

Custom JSON Encoder for Location values

Example:

data_dict = {
    "part1": {
        "joint_one": Location((1, 2, 3), (4, 5, 6)),
        "joint_two": Location((7, 8, 9), (10, 11, 12)),
    },
    "part2": {
        "joint_one": Location((13, 14, 15), (16, 17, 18)),
        "joint_two": Location((19, 20, 21), (22, 23, 24)),
    },
}
json_object = json.dumps(data_dict, indent=4, cls=LocationEncoder)
with open("sample.json", "w") as outfile:
    outfile.write(json_object)
with open("sample.json", "r") as infile:
    copy_data_dict = json.load(infile, object_hook=LocationEncoder.location_hook)

default(o: Location) → dict

Return a serializable object

static location_hook(obj) → dict

Convert Locations loaded from json to Location objects

サンプル

read_json = json.load(infile, object_hook=LocationEncoder.location_hook)

class Pos(*args, **kwargs)

A position only sub-class of Location

Rot

:py:class:`~geometry.Rotation`の別名です。

class Matrix(*args, **kwargs)

A 3d , 4x4 transformation matrix.

Used to move geometry in space.

The provided "matrix" parameter may be None, a gp_GTrsf, or a nested list of values.

If given a nested list, it is expected to be of the form:

[[m11, m12, m13, m14],

[m21, m22, m23, m24], [m31, m32, m33, m34]]

A fourth row may be given, but it is expected to be: [0.0, 0.0, 0.0, 1.0] since this is a transform matrix.

変数:

wrapped (gp_GTrsf) -- the OCP transformation function

__copy__() → Matrix

Return copy of self

__deepcopy__(_memo) → Matrix

Return deepcopy of self

inverse() → Matrix

Invert Matrix

multiply(other)

Matrix multiplication

rotate(axis: Axis, angle: float)

General rotate about axis by angle in degrees

transposed_list() → Sequence[float]

Needed by the cqparts gltf exporter

class Plane(*args: Any, **kwargs: Any)

A plane is positioned in space with a coordinate system such that the plane is defined by the origin, x_dir (X direction), y_dir (Y direction), and z_dir (Z direction) of this coordinate system, which is the "local coordinate system" of the plane. The z_dir is a vector normal to the plane. The coordinate system is right-handed.

A plane allows the use of local 2D coordinates, which are later converted to global, 3d coordinates when the operations are complete.

Planes can be created from faces as workplanes for feature creation on objects.

Name	x_dir	y_dir	z_dir
XY	+x	+y	+z
YZ	+y	+z	+x
ZX	+z	+x	+y
XZ	+x	+z	-y
YX	+y	+x	-z
ZY	+z	+y	-x
front	+x	+z	-y
back	-x	+z	+y
left	-y	+z	-x
right	+y	+z	+x
top	+x	+y	+z
bottom	+x	-y	-z
isometric	+x+y	-x+y+z	+x+y-z

パラメータ:

• gp_pln (gp_Pln) -- an OCCT plane object

• origin (tuple[float, float, float] | Vector) -- the origin in global coordinates

• x_dir (tuple[float, float, float] | Vector | None) -- an optional vector representing the X Direction. Defaults to None.

• y_dir (tuple[float, float, float] | Vector | None) -- optional Y direction. Mutually exclusive with z_dir. Requires x_dir.

• z_dir (tuple[float, float, float] | Vector | None) -- the normal direction for the plane. Defaults to (0, 0, 1).

変数:

• origin (Vector) -- global position of local (0,0,0) point

• x_dir (Vector) -- x direction

• y_dir (Vector) -- y direction

• z_dir (Vector) -- z direction

• forward_transform (Matrix) -- forward location transformation matrix

• reverse_transform (Matrix) -- reverse location transformation matrix

• wrapped (gp_Pln) -- the OCP plane object

例外:

• ValueError -- z_dir must be non null

• ValueError -- y_dir must be non null

• ValueError -- x_dir must be non null

• ValueError -- the specified x_dir is not orthogonal to the provided normal

• ValueError -- x_dir and y_dir must not be parallel

• ValueError -- the specified x_dir is not orthogonal to the provided normal

戻り値:

A plane

戻り値の型:

Plane

__copy__() → Plane

Return copy of self

__deepcopy__(_memo) → Plane

Return deepcopy of self

__eq__(other: object)

Are planes equal operator ==

__mul__(other: Location | Plane | Iterable[Location | Plane]) → Location | list[Location]

__neg__() → Plane

Reverse z direction of plane operator -

contains(obj: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | Axis, tolerance: float = 1e-06) → bool

Is this point or Axis fully contained in this plane?

パラメータ:

• obj (VectorLike | Axis) -- point or Axis to evaluate

• tolerance (float, optional) -- comparison tolerance. Defaults to TOLERANCE.

戻り値:

self contains point or Axis

戻り値の型:

bool

property forward_transform

forward location transformation matrix

from_local_coords(obj: tuple | Vector | Any | BoundBox)

Reposition the object relative from this plane

パラメータ:

• obj -- VectorLike | Shape | BoundBox an object to reposition. Note that

• classes. (type Any refers to all topological)

戻り値:

an object of the same type, but repositioned to world coordinates

static get_topods_face_normal(face: TopoDS_Face) → Vector

Find the normal at the center of a TopoDS_Face

intersect(*args, **kwargs)

Find intersection of plane and geometric object or shape

property location: Location

Return Location representing the origin and z direction

location_between(other: Plane) → Location

Return a location representing the translation from self to other

move(loc: Location | Plane) → Plane

Change the position & orientation of self by applying a relative location

パラメータ:

loc (Location | Plane) -- relative change

戻り値:

relocated self

戻り値の型:

Plane

moved(loc: Location | Plane) → Plane

Change the position & orientation of a copy of self by applying a relative location

パラメータ:

loc (Location | Plane) -- relative change

戻り値:

relocated plane

戻り値の型:

Plane

offset(amount: float) → Plane

Move the Plane by amount in the direction of z_dir

property origin: Vector

global position of local (0,0,0) point

reverse() → Plane

Reverse z direction of plane

property reverse_transform

reverse location transformation matrix

rotated(rotation: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 0), ordering: Extrinsic | Intrinsic | None = None) → Plane

Returns a copy of this plane, rotated about the specified axes

The origin of the workplane is unaffected by the rotation.

Rotations are done in order x, y, z. If you need a different order, specify ordering. e.g. Intrinsic.ZYX changes rotation to (z angle, y angle, x angle) and rotates in that order.

パラメータ:

• rotation (VectorLike, optional) -- (x angle, y angle, z angle). Defaults to (0, 0, 0)

• ordering (Intrinsic | Extrinsic, optional) -- order of rotations in Intrinsic or Extrinsic rotation mode. Defaults to Intrinsic.XYZ

戻り値:

a copy of this plane rotated as requested.

戻り値の型:

Plane

shift_origin(locator: Axis | VectorLike | Vertex) → Plane

shift plane origin

Creates a new plane with the origin moved within the plane to the point of intersection of the axis or at the given Vertex. The plane's x_dir and z_dir are unchanged.

パラメータ:

locator (Axis | VectorLike | Vertex) -- Either Axis that intersects the new plane origin or Vertex within Plane.

例外:

• ValueError -- Vertex isn't within plane

• ValueError -- Point isn't within plane

• ValueError -- Axis doesn't intersect plane

戻り値:

plane with new origin

戻り値の型:

Plane

to_gp_ax2() → gp_Ax2

Return gp_Ax2 version of the plane

to_gp_ax3() → gp_Ax3

Return gp_Ax3 version of the plane

to_local_coords(obj: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | Any | BoundBox)

Reposition the object relative to this plane

パラメータ:

• obj -- VectorLike | Shape | BoundBox an object to reposition. Note that

• classes. (type Any refers to all topological)

戻り値:

an object of the same type, but repositioned to local coordinates

property wrapped: gp_Pln

property x_dir: Vector

property y_dir: Vector

property z_dir: Vector

class Rotation(*args, **kwargs)

Subclass of Location used only for object rotation

変数:

• X (float) -- rotation in degrees about X axis

• Y (float) -- rotation in degrees about Y axis

• Z (float) -- rotation in degrees about Z axis

• enums, (optionally specify rotation ordering with Intrinsic or Extrinsic) -- defaults to Intrinsic.XYZ

class Vector(*args, **kwargs)

Create a 3-dimensional vector

パラメータ:

• x (float) -- x component

• y (float) -- y component

• z (float) -- z component

• vec (Vector | Sequence(float) | gp_Vec | gp_Pnt | gp_Dir | gp_XYZ) -- vector representations

Note that if no z value is provided it's assumed to be zero. If no values are provided the returned Vector has the value of 0, 0, 0.

変数:

wrapped (gp_Vec) -- the OCP vector object

property X: float

Get x value

property Y: float

Get y value

property Z: float

Get z value

__abs__() → float

Vector length operator abs()

__add__(vec: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Vector

Mathematical addition operator +

__copy__() → Vector

Return copy of self

__deepcopy__(_memo) → Vector

Return deepcopy of self

__eq__(other: object) → bool

Vectors equal operator ==

__mul__(scale: float) → Vector

Mathematical multiply operator *

__neg__() → Vector

Flip direction of vector operator -

__rmul__(scale: float) → Vector

Mathematical multiply operator *

__sub__(vec: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Vector

Mathematical subtraction operator -

__truediv__(denom: float) → Vector

Mathematical division operator /

add(vec: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Vector

Mathematical addition function

center() → Vector

戻り値:

The center of myself is myself. Provided so that vectors, vertices, and other shapes all support a common interface, when center() is requested for all objects on the stack.

cross(vec: Vector) → Vector

Mathematical cross function

distance_to_plane(plane: Plane) → float

Minimum unsigned distance between vector and plane

dot(vec: Vector) → float

Mathematical dot function

get_angle(vec: Vector) → float

Unsigned angle between vectors

get_signed_angle(vec: Vector, normal: Vector | None = None) → float

Signed Angle Between Vectors

Return the signed angle in degrees between two vectors with the given normal based on this math: angle = atan2((Va × Vb) ⋅ Vn, Va ⋅ Vb)

パラメータ:

• v (Vector) -- Second Vector

• normal (Vector, optional) -- normal direction. Defaults to None.

戻り値:

Angle between vectors

戻り値の型:

float

intersect(*args, **kwargs)

Find intersection of vector and geometric object or shape

property length: float

Vector length

multiply(scale: float) → Vector

Mathematical multiply function

normalized() → Vector

Scale to length of 1

project_to_line(line: Vector) → Vector

Returns a new vector equal to the projection of this Vector onto the line represented by Vector <line>

パラメータ:

line (Vector) -- project to this line

戻り値:

Returns the projected vector.

戻り値の型:

Vector

project_to_plane(plane: Plane) → Vector

Vector is projected onto the plane provided as input.

パラメータ:

args -- Plane object

Returns the projected vector.

plane: Plane:

Returns:

reverse() → Vector

Return a vector with the same magnitude but pointing in the opposite direction

rotate(axis: Axis, angle: float) → Vector

Rotate about axis

Rotate about the given Axis by an angle in degrees

パラメータ:

• axis (Axis) -- Axis of rotation

• angle (float) -- angle in degrees

戻り値:

rotated vector

戻り値の型:

Vector

signed_distance_from_plane(plane: Plane) → float

Signed distance from plane to point vector.

sub(vec: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Vector

Mathematical subtraction function

to_dir() → gp_Dir

Convert to OCCT gp_Dir object

to_pnt() → gp_Pnt

Convert to OCCT gp_Pnt object

to_tuple() → tuple[float, float, float]

Return tuple equivalent

transform(affine_transform: Matrix, is_direction: bool = False) → Vector

Apply affine transformation

パラメータ:

• affine_transform (Matrix) -- affine transformation matrix

• is_direction (bool, optional) -- Should self be transformed as a vector or direction? Defaults to False (vector)

戻り値:

transformed vector

戻り値の型:

Vector

property wrapped: gp_Vec

OCCT object

Topological Objects

The topological object classes defined by build123d are defined below.

Note that the Mixin1D and Mixin3D classes add supplementary functionality specific to 1D (Edge and Wire) and 3D (Compound and ~topology.Solid) objects respectively. Note that a Compound may be contain only 1D, 2D (Face) or 3D objects.

class Compound(obj: TopoDS_Compound | Iterable[Shape] | None = None, label: str = '', color: Color | None = None, material: str = '', joints: dict[str, Joint] | None = None, parent: Compound | None = None, children: Sequence[Shape] | None = None)

A Compound in build123d is a topological entity representing a collection of geometric shapes grouped together within a single structure. It serves as a container for organizing diverse shapes like edges, faces, or solids. This hierarchical arrangement facilitates the construction of complex models by combining simpler shapes. Compound plays a pivotal role in managing the composition and structure of intricate 3D models in computer-aided design (CAD) applications, allowing engineers and designers to work with assemblies of shapes as unified entities for efficient modeling and analysis.

classmethod cast(obj: TopoDS_Shape) → Vertex | Edge | Wire | Face | Shell | Solid | Compound

Returns the right type of wrapper, given a OCCT object

center(center_of: ~build123d.build_enums.CenterOf = <CenterOf.MASS>) → Vector

Return center of object

Find center of object

パラメータ:

center_of (CenterOf, optional) -- center option. Defaults to CenterOf.MASS.

例外:

• ValueError -- Center of GEOMETRY is not supported for this object

• NotImplementedError -- Unable to calculate center of mass of this object

戻り値:

center

戻り値の型:

Vector

compound() → Compound

Return the Compound

compounds() → ShapeList[Compound]

compounds - all the compounds in this Shape

do_children_intersect(include_parent: bool = False, tolerance: float = 1e-05) → tuple[bool, tuple[Shape | None, Shape | None], float]

Do Children Intersect

Determine if any of the child objects within a Compound/assembly intersect by intersecting each of the shapes with each other and checking for a common volume.

パラメータ:

• include_parent (bool, optional) -- check parent for intersections. Defaults to False.

• tolerance (float, optional) -- maximum allowable volume difference. Defaults to 1e-5.

戻り値:

do the object intersect, intersecting objects, volume of intersection

戻り値の型:

tuple[bool, tuple[Shape, Shape], float]

classmethod extrude(obj: Shell, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Compound

Extrude a Shell into a Compound.

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Edge

get_type(obj_type: type[Vertex] | type[Edge] | type[Face] | type[Shell] | type[Solid] | type[Wire]) → list[Vertex | Edge | Face | Shell | Solid | Wire]

Extract the objects of the given type from a Compound. Note that this isn't the same as Faces() etc. which will extract Faces from Solids.

パラメータ:

obj_type (Union[Vertex, Edge, Face, Shell, Solid, Wire]) -- Object types to extract

戻り値:

Extracted objects

戻り値の型:

list[Union[Vertex, Edge, Face, Shell, Solid, Wire]]

classmethod make_text(txt: str, font_size: float, font: str = 'Arial', font_path: ~os.PathLike[str] | str | None = None, font_style: ~build123d.build_enums.FontStyle = <FontStyle.REGULAR>, text_align: tuple[~build123d.build_enums.TextAlign, ~build123d.build_enums.TextAlign] = (<TextAlign.CENTER>, <TextAlign.CENTER>), align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = None, position_on_path: float = 0.0, text_path: ~topology.one_d.Edge | ~topology.one_d.Wire | None = None, single_line_width: float = 0.0) → Compound

Text that optionally follows a path.

The text that is created can be combined as with other sketch features by specifying a mode or rotated by the given angle. In addition, edges have been previously created with arc or segment, the text will follow the path defined by these edges. The start parameter can be used to shift the text along the path to achieve precise positioning.

パラメータ:

• txt (str) -- text to render

• font_size (float) -- size of the font in model units

• font (str, optional) -- font name. Defaults to "Arial"

• font_path (PathLike | str, optional) -- system path to font file. Defaults to None

• font_style (Font_Style, optional) -- font style, REGULAR, BOLD, BOLDITALIC, or ITALIC. Defaults to Font_Style.REGULAR

• text_align (tuple[TextAlign, TextAlign], optional) -- horizontal text align LEFT, CENTER, or RIGHT. Vertical text align BOTTOM, CENTER, TOP, or TOPFIRSTLINE. Defaults to (TextAlign.CENTER, TextAlign.CENTER)

• align (Align | tuple[Align, Align], optional) -- align MIN, CENTER, or MAX of object. Defaults to None

• position_on_path (float, optional) -- the relative location on path to position the text, values must be between 0.0 and 1.0. Defaults to 0.0

• text_path -- (Edge | Wire, optional): path for text to follow. Defaults to None Compound object containing multiple Shapes representing the text

• single_line_width (float) -- width of outlined single line font. Defaults to 0.0

Examples:

fox = Compound.make_text(
    txt="The quick brown fox jumped over the lazy dog",
    font_size=10,
    position_on_path=0.1,
    text_path=jump_edge,
)

classmethod make_triad(axes_scale: float) → Compound

The coordinate system triad (X, Y, Z axes)

order = 4.0

project_to_viewport(viewport_origin: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], viewport_up: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 1), look_at: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, focus: float | None = None) → tuple[ShapeList[Edge], ShapeList[Edge]]

Project a shape onto a viewport returning visible and hidden Edges.

パラメータ:

• viewport_origin (VectorLike) -- location of viewport

• viewport_up (VectorLike, optional) -- direction of the viewport y axis. Defaults to (0, 0, 1).

• look_at (VectorLike, optional) -- point to look at. Defaults to None (center of shape).

• focus (float, optional) -- the focal length for perspective projection Defaults to None (orthographic projection)

戻り値:

visible & hidden Edges

戻り値の型:

tuple[ShapeList[Edge],ShapeList[Edge]]

touch(other: Shape, tolerance: float = 1e-06) → ShapeList[Vertex | Edge | Face]

Distribute touch over compound elements.

Iterates over elements and collects touch results. Only Solid and Face elements produce boundary contacts; other shapes return empty.

パラメータ:

• other -- Shape to check boundary contacts with

• tolerance -- tolerance for contact detection

戻り値:

ShapeList of boundary contact geometry (empty if no contact)

unwrap(fully: bool = True) → Self | Shape

Strip unnecessary Compound wrappers

パラメータ:

fully (bool, optional) -- return base shape without any Compound wrappers (otherwise one Compound is left). Defaults to True.

戻り値:

base shape

戻り値の型:

Union[Self, Shape]

property volume: float

volume - the volume of this Compound

class Edge(obj: TopoDS_Edge | Axis | None | None = None, label: str = '', color: Color | None = None, parent: Compound | None = None)

An Edge in build123d is a fundamental element in the topological data structure representing a one-dimensional geometric entity within a 3D model. It encapsulates information about a curve, which could be a line, arc, or other parametrically defined shape. Edge is crucial in for precise modeling and manipulation of curves, facilitating operations like filleting, chamfering, and Boolean operations. It serves as a building block for constructing complex structures, such as wires and faces.

property arc_center: Vector

center of an underlying circle or ellipse geometry.

close() → Edge | Wire

Close an Edge

distribute_locations(count: int, start: float = 0.0, stop: float = 1.0, positions_only: bool = False) → list[Location]

Distribute Locations

Distribute locations along edge or wire.

パラメータ:

• self -- Wire:Edge:

• count (int) -- Number of locations to generate

• start (float) -- position along Edge|Wire to start. Defaults to 0.0.

• stop (float) -- position along Edge|Wire to end. Defaults to 1.0.

• positions_only (bool) -- only generate position not orientation. Defaults to False.

戻り値:

locations distributed along Edge|Wire

戻り値の型:

list[Location]

例外:

ValueError -- count must be two or greater

classmethod extrude(obj: Vertex, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge

Extrude a Vertex into an Edge.

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Edge

find_intersection_points(other: Axis | Edge | None = None, tolerance: float = 1e-06) → ShapeList[Vector]

Determine the points where a 2D edge crosses itself or another 2D edge

パラメータ:

• other (Axis | Edge) -- curve to compare with

• tolerance (float, optional) -- the precision of computing the intersection points. Defaults to TOLERANCE.

例外:

ValueError -- empty edge

戻り値:

list of intersection points

戻り値の型:

ShapeList[Vector]

find_tangent(angle: float) → list[float]

Find the parameter values of self where the tangent is equal to angle.

パラメータ:

angle (float) -- target angle in degrees

戻り値:

u values between 0.0 and 1.0

戻り値の型:

list[float]

geom_adaptor() → BRepAdaptor_Curve

Return the Geom Curve from this Edge

geom_equal(other: Edge, tol: float = 1e-06, num_interpolation_points: int = 5) → bool

Compare two edges for geometric equality within tolerance.

This compares the geometric properties of two edges, not their topological identity. Two independently created edges with the same geometry will return True.

パラメータ:

• other -- Edge to compare with

• tol -- Tolerance for numeric comparisons. Defaults to 1e-6.

• num_interpolation_points -- Number of points to sample for unknown curve types. Defaults to 5.

戻り値:

True if edges are geometrically equal within tolerance

戻り値の型:

bool

property is_infinite: bool

Check if edge is infinite (LINE with length > 1e100).

classmethod make_bezier(*cntl_pnts: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], weights: list[float] | None = None) → Edge

Create a rational (with weights) or non-rational bezier curve. The first and last control points represent the start and end of the curve respectively. If weights are provided, there must be one provided for each control point.

パラメータ:

• cntl_pnts (sequence[VectorLike]) -- points defining the curve

• weights (list[float], optional) -- control point weights list. Defaults to None.

例外:

• ValueError -- Too few control points

• ValueError -- Too many control points

• ValueError -- A weight is required for each control point

戻り値:

bezier curve

戻り値の型:

Edge

classmethod make_bspline(control_points: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]], knots: Iterable[float], degree: int, weights: Iterable[float] | None = None, periodic: bool = False) → Edge

Create an exact B-spline edge from control points and knot data.

パラメータ:

• control_points (Iterable[VectorLike]) -- Control points (poles) defining the spline shape.

• knots (Iterable[float]) -- Knot sequence for the spline. Repeated knot values are converted to unique knot values plus multiplicities.

• degree (int) -- Polynomial degree of the spline.

• weights (Iterable[float] | None, optional) -- Optional per-control-point weights for rational B-splines. Defaults to None.

• periodic (bool, optional) -- Whether to create a periodic spline. Defaults to False.

例外:

ValueError -- B-spline requires at least one knot.

戻り値:

the B-spline edge

戻り値の型:

Edge

classmethod make_circle(radius: float, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 360.0, end_angle: float = 360, angular_direction: ~build123d.build_enums.AngularDirection = <AngularDirection.COUNTER_CLOCKWISE>) → Edge

make circle

Create a circle centered on the origin of plane

パラメータ:

• radius (float) -- circle radius

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- start of arc angle. Defaults to 360.0.

• end_angle (float, optional) -- end of arc angle. Defaults to 360.

• angular_direction (AngularDirection, optional) -- arc direction. Defaults to AngularDirection.COUNTER_CLOCKWISE.

戻り値:

full or partial circle

戻り値の型:

Edge

classmethod make_constrained_arcs(tangency_one: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tangency_two: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, radius: float, sagitta: Sagitta = Sagitta.SHORT) → ShapeList[Edge]

classmethod make_constrained_arcs(tangency_one: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tangency_two: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, center_on: Axis | Edge, sagitta: Sagitta = Sagitta.SHORT) → ShapeList[Edge]

classmethod make_constrained_arcs(tangency_one: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tangency_two: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tangency_three: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, sagitta: Sagitta = Sagitta.SHORT) → ShapeList[Edge]

classmethod make_constrained_arcs(tangency_one: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, center: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → ShapeList[Edge]

classmethod make_constrained_arcs(tangency_one: tuple[Axis | Edge, Tangency] | Axis | Edge | Vertex | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, radius: float, center_on: Edge) → ShapeList[Edge]

classmethod make_constrained_lines(tangency_one: tuple[Edge, Tangency] | Axis | Edge, tangency_two: tuple[Edge, Tangency] | Axis | Edge) → ShapeList[Edge]

classmethod make_constrained_lines(tangency_one: tuple[Edge, Tangency] | Edge, tangency_two: Vector) → ShapeList[Edge]

classmethod make_constrained_lines(tangency_one: tuple[Edge, Tangency] | Edge, tangency_two: Axis, *, angle: float | None = None, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → ShapeList[Edge]

Create planar line(s) on XY subject to tangency/contact constraints.

Supported cases

1. Tangent to two curves

2. Tangent to one curve and passing through a given point

classmethod make_ellipse(x_radius: float, y_radius: float, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 360.0, end_angle: float = 360.0, angular_direction: ~build123d.build_enums.AngularDirection = <AngularDirection.COUNTER_CLOCKWISE>) → Edge

make ellipse

Makes an ellipse centered at the origin of plane.

パラメータ:

• x_radius (float) -- x radius of the ellipse (along the x-axis of plane)

• y_radius (float) -- y radius of the ellipse (along the y-axis of plane)

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- Defaults to 360.0.

• end_angle (float, optional) -- Defaults to 360.0.

• angular_direction (AngularDirection, optional) -- arc direction. Defaults to AngularDirection.COUNTER_CLOCKWISE.

戻り値:

full or partial ellipse

戻り値の型:

Edge

classmethod make_helix(pitch: float, height: float, radius: float, center: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 0), normal: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 1), angle: float = 0.0, lefthand: bool = False) → Wire

Make a helix with a given pitch, height and radius. By default a cylindrical surface is used to create the helix. If the :angle: is set (the apex given in degree) a conical surface is used instead.

パラメータ:

• pitch (float) -- distance per revolution along normal

• height (float) -- total height

• radius (float)

• center (VectorLike, optional) -- Defaults to (0, 0, 0).

• normal (VectorLike, optional) -- Defaults to (0, 0, 1).

• angle (float, optional) -- conical angle. Defaults to 0.0.

• lefthand (bool, optional) -- Defaults to False.

戻り値:

helix

戻り値の型:

Wire

classmethod make_hyperbola(x_radius: float, y_radius: float, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 360.0, end_angle: float = 360.0, angular_direction: ~build123d.build_enums.AngularDirection = <AngularDirection.COUNTER_CLOCKWISE>) → Edge

make hyperbola

Makes a hyperbola centered at the origin of plane.

パラメータ:

• x_radius (float) -- x radius of the hyperbola (along the x-axis of plane)

• y_radius (float) -- y radius of the hyperbola (along the y-axis of plane)

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- Defaults to 360.0.

• end_angle (float, optional) -- Defaults to 360.0.

• angular_direction (AngularDirection, optional) -- arc direction. Defaults to AngularDirection.COUNTER_CLOCKWISE.

戻り値:

full or partial hyperbola

戻り値の型:

Edge

classmethod make_line(point1: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], point2: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge

Create a line between two points

パラメータ:

• point1 -- VectorLike: that represents the first point

• point2 -- VectorLike: that represents the second point

戻り値:

A linear edge between the two provided points

classmethod make_mid_way(first: Edge, second: Edge, middle: float = 0.5) → Edge

make line between edges

Create a new linear Edge between the two provided Edges. If the Edges are parallel but in the opposite directions one Edge is flipped such that the mid way Edge isn't truncated.

パラメータ:

• first (Edge) -- first reference Edge

• second (Edge) -- second reference Edge

• middle (float, optional) -- factional distance between Edges. Defaults to 0.5.

戻り値:

linear Edge between two Edges

戻り値の型:

Edge

classmethod make_parabola(focal_length: float, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 0.0, end_angle: float = 90.0, angular_direction: ~build123d.build_enums.AngularDirection = <AngularDirection.COUNTER_CLOCKWISE>) → Edge

make parabola

Makes an parabola centered at the origin of plane.

パラメータ:

• focal_length (float) -- focal length the parabola (distance from the vertex to focus along the x-axis of plane)

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- Defaults to 0.0.

• end_angle (float, optional) -- Defaults to 90.0.

• angular_direction (AngularDirection, optional) -- arc direction. Defaults to AngularDirection.COUNTER_CLOCKWISE.

戻り値:

full or partial parabola

戻り値の型:

Edge

classmethod make_spline(points: list[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]], tangents: list[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]] | None = None, periodic: bool = False, parameters: list[float] | None = None, scale: bool = True, tol: float = 1e-06) → Edge

Spline

Interpolate a spline through the provided points.

パラメータ:

• points (list[VectorLike]) -- the points defining the spline

• tangents (list[VectorLike], optional) -- start and finish tangent. Defaults to None.

• periodic (bool, optional) -- creation of periodic curves. Defaults to False.

• parameters (list[float], optional) -- the value of the parameter at each interpolation point. (The interpolated curve is represented as a vector-valued function of a scalar parameter.) If periodic == True, then len(parameters) must be len(interpolation points) + 1, otherwise len(parameters) must be equal to len(interpolation points). Defaults to None.

• scale (bool, optional) -- whether to scale the specified tangent vectors before interpolating. Each tangent is scaled, so it's length is equal to the derivative of the Lagrange interpolated curve. I.e., set this to True, if you want to use only the direction of the tangent vectors specified by tangents , but not their magnitude. Defaults to True.

• tol (float, optional) -- tolerance of the algorithm (consult OCC documentation). Used to check that the specified points are not too close to each other, and that tangent vectors are not too short. (In either case interpolation may fail.). Defaults to 1e-6.

例外:

• ValueError -- Parameter for each interpolation point

• ValueError -- Tangent for each interpolation point

• ValueError -- B-spline interpolation failed

戻り値:

the spline

戻り値の型:

Edge

classmethod make_spline_approx(points: list[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]], tol: float = 0.001, smoothing: tuple[float, float, float] | None = None, min_deg: int = 1, max_deg: int = 6) → Edge

Approximate a spline through the provided points.

パラメータ:

• points (list[Vector])

• tol (float, optional) -- tolerance of the algorithm. Defaults to 1e-3.

• smoothing (Tuple[float, float, float], optional) -- optional tuple of 3 weights use for variational smoothing. Defaults to None.

• min_deg (int, optional) -- minimum spline degree. Enforced only when smoothing is None. Defaults to 1.

• max_deg (int, optional) -- maximum spline degree. Defaults to 6.

例外:

ValueError -- B-spline approximation failed

戻り値:

spline

戻り値の型:

Edge

classmethod make_tangent_arc(start: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tangent: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], end: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge

Tangent Arc

Makes a tangent arc from point start, in the direction of tangent and ends at end.

パラメータ:

• start (VectorLike) -- start point

• tangent (VectorLike) -- start tangent

• end (VectorLike) -- end point

戻り値:

circular arc

戻り値の型:

Edge

classmethod make_three_point_arc(point1: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], point2: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], point3: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge

Three Point Arc

Makes a three point arc through the provided points

パラメータ:

• point1 (VectorLike) -- start point

• point2 (VectorLike) -- middle point

• point3 (VectorLike) -- end point

戻り値:

a circular arc through the three points

戻り値の型:

Edge

order = 1.0

param_at(position: float) → float

Map a normalized arc-length position to the underlying OCCT parameter.

Returns the native OCCT curve parameter corresponding to the given normalized position (0.0 → start, 1.0 → end). For closed/periodic edges, OCCT may return a value outside the edge's nominal parameter range [param_min, param_max] (e.g., by adding/subtracting multiples of the period). If you require a value folded into the edge's range, apply a modulo with the parameter span.

パラメータ:

position (float) -- Normalized arc-length position along the shape, where 0.0 is the start and 1.0 is the end. Values outside [0.0, 1.0] are not validated and yield OCCT-dependent results.

戻り値:

OCCT parameter (for edges) or composite “edgeIndex + fraction” parameter (for wires), as described above.

戻り値の型:

float

param_at_point(point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → float

Return the normalized parameter (∈ [0.0, 1.0]) of the location on this edge closest to point.

This method always returns a normalized parameter across the edge's full OCCT parameter range, even though the underlying OCP/OCCT queries work in native (non-normalized) parameters. It is robust to several OCCT quirks:

1) Vertex snap (fast path) If point coincides (within tolerance) with one of the edge's vertices, that vertex's OCCT parameter is used and normalized to [0, 1]. Note: for a closed edge, a vertex may represent both start and end; the mapping is therefore ambiguous and either end may be chosen.

2) Projection via GeomAPI_ProjectPointOnCurve The OCCT projector's LowerDistanceParameter() can legitimately return a value outside the edge's [param_min, param_max] (e.g., periodic curves or implementation behavior). The result is wrapped back into range using a modulo by the parameter span and then normalized to [0, 1]. The projected answer is accepted only if re-evaluating the 3D point at that normalized parameter is within tolerance of the input point.

3) Fallback numeric search (robust path) If the projector fails the validation, a bounded 1D search is performed over [0, 1] using progressive subdivision and local minimization of the 3D distance ‖edge(u) - point‖. The first minimum found under geometric resolution is returned.

パラメータ:

point (VectorLike) -- A point expected to lie on this edge (within tolerance).

例外:

• ValueError -- If point is not on the edge within tolerance.

• ValueError -- Can't find param on empty edge

• RuntimeError -- If no parameter can be found (e.g., extremely pathological curves or numerical failure).

戻り値:

Normalized parameter in [0.0, 1.0] corresponding to the point's closest location on the edge.

戻り値の型:

float

project_to_shape(target_object: Shape, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, center: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → ShapeList[Edge]

Project Edge

Project an Edge onto a Shape generating new wires on the surfaces of the object one and only one of direction or center must be provided. Note that one or more wires may be generated depending on the topology of the target object and location/direction of projection.

To avoid flipping the normal of a face built with the projected wire the orientation of the output wires are forced to be the same as self.

パラメータ:

• target_object -- Object to project onto

• direction -- Parallel projection direction. Defaults to None.

• center -- Conical center of projection. Defaults to None.

• target_object -- Shape:

• direction -- VectorLike: (Default value = None)

• center -- VectorLike: (Default value = None)

戻り値:

Projected Edge(s)

例外:

ValueError -- Only one of direction or center must be provided

reversed(reconstruct: bool = False) → Edge

Return a copy of self with the opposite orientation.

パラメータ:

reconstruct (bool, optional) -- rebuild edge instead of setting OCCT flag. Defaults to False.

戻り値:

reversed

戻り値の型:

Edge

to_axis() → Axis

Translate a linear Edge to an Axis

to_wire() → Wire

Edge as Wire

trim(start: float | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], end: float | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge

Create a new edge by keeping only the section between start and end.

パラメータ:

• start (float | VectorLike) -- 0.0 <= start < 1.0 or point on edge

• end (float | VectorLike) -- 0.0 < end <= 1.0 or point on edge

例外:

• TypeError -- invalid input, must be float or VectorLike

• ValueError -- can't trim empty edge

戻り値:

trimmed edge

戻り値の型:

Edge

trim_infinite(half_length: float) → Edge

Trim an infinite line edge to a finite length.

OCCT's boolean operations struggle with very long edges (length > 1e100). This method trims such edges to a reasonable size centered at edge.center().

For non-infinite edges, returns self unchanged.

パラメータ:

half_length -- Half-length of the resulting edge

戻り値:

Trimmed edge if infinite, otherwise self

trim_to_length(start: float | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], length: float) → Edge

Create a new edge starting at the given normalized parameter of a given length.

パラメータ:

• start (float | VectorLike) -- 0.0 <= start < 1.0 or point on edge

• length (float) -- target length

例外:

ValueError -- can't trim empty edge

戻り値:

trimmed edge

戻り値の型:

Edge

trim_to_other(other: Shape | Axis | Location | Plane | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Edge | None

Return the shortest Edge of self trimmed by other or None if they don't intersect

class Face(obj: TopoDS_Face | Plane, label: str = '', color: Color | None = None, parent: Compound | None = None)

class Face(outer_wire: Wire, inner_wires: Iterable[Wire] | None = None, label: str = '', color: Color | None = None, parent: Compound | None = None)

A Face in build123d represents a 3D bounded surface within the topological data structure. It encapsulates geometric information, defining a face of a 3D shape. These faces are integral components of complex structures, such as solids and shells. Face enables precise modeling and manipulation of surfaces, supporting operations like trimming, filleting, and Boolean operations.

property area_without_holes: float

Calculate the total surface area of the face, including the areas of any holes.

This property returns the overall area of the face as if the inner boundaries (holes) were filled in.

戻り値:

The total surface area, including the area of holes. Returns 0.0 if the face is empty.

戻り値の型:

float

property axes_of_symmetry: list[Axis]

Computes and returns the axes of symmetry for a planar face.

The method determines potential symmetry axes by analyzing the face’s geometry:

• It first validates that the face is non-empty and planar.

• For faces with inner wires (holes), it computes the centroid of the holes and the face's overall center (COG).

  • If the holes' centroid significantly deviates from the COG (beyond a specified tolerance), the symmetry axis is taken along the line connecting these points; otherwise, each hole’s center is used to generate a candidate axis.

• For faces without holes, candidate directions are derived by sampling midpoints along the outer wire's edges.

  • If curved edges are present, additional candidate directions are obtained from an oriented bounding box (OBB) constructed around the face.

For each candidate direction, the face is split by a plane (defined using the candidate direction and the face’s normal). The top half of the face is then mirrored across this plane, and if the area of the intersection between the mirrored half and the bottom half matches the bottom half’s area within a small tolerance, the direction is accepted as an axis of symmetry.

戻り値:

A list of Axis objects, each defined by the face's

center and a direction vector, representing the symmetry axes of the face.

戻り値の型:

list[Axis]

例外:

• ValueError -- If the face or its underlying representation is empty.

• ValueError -- If the face is not planar.

property axis_of_rotation: None | Axis

Get the rotational axis of a cylinder or torus

center(center_of: ~build123d.build_enums.CenterOf = <CenterOf.GEOMETRY>) → Vector

Center of Face

Return the center based on center_of

パラメータ:

center_of (CenterOf, optional) -- centering option. Defaults to CenterOf.GEOMETRY.

戻り値:

center

戻り値の型:

Vector

property center_location: Location

Location at the center of face

chamfer_2d(distance: float, distance2: float, vertices: Iterable[Vertex], edge: Edge | None = None) → Face

Apply 2D chamfer to a face

パラメータ:

• distance (float) -- chamfer length

• distance2 (float) -- chamfer length

• vertices (Iterable[Vertex]) -- vertices to chamfer

• edge (Edge) -- identifies the side where length is measured. The vertices must be part of the edge

例外:

• ValueError -- Cannot chamfer at this location

• ValueError -- One or more vertices are not part of edge

戻り値:

face with a chamfered corner(s)

戻り値の型:

Face

classmethod extrude(obj: Edge, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Face

Extrude an Edge into a Face.

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Face

fillet_2d(radius: float, vertices: Iterable[Vertex]) → Face

Apply 2D fillet to a face

パラメータ:

• radius -- float:

• vertices -- Iterable[Vertex]:

Returns:

geom_adaptor() → Geom_Surface

Return the Geom Surface for this Face

property geometry: None | str

geometry of planar face

inner_wires() → ShapeList[Wire]

Extract the inner or hole wires from this Face

property is_circular_concave: bool

Determine whether a given face is concave relative to its underlying geometry for supported geometries: cylinder, sphere, torus.

戻り値:

True if concave; otherwise, False.

戻り値の型:

bool

property is_circular_convex: bool

Determine whether a given face is convex relative to its underlying geometry for supported geometries: cylinder, sphere, torus.

戻り値:

True if convex; otherwise, False.

戻り値の型:

bool

is_coplanar(plane: Plane) → bool

Is this planar face coplanar with the provided plane

is_inside(point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tolerance: float = 1e-06) → bool

Point inside Face

Returns whether or not the point is inside a Face within the specified tolerance. Points on the edge of the Face are considered inside.

パラメータ:

• point (VectorLike) -- tuple or Vector representing 3D point to be tested

• tolerance (float) -- tolerance for inside determination. Defaults to 1.0e-6.

• point -- VectorLike:

• tolerance -- float: (Default value = 1.0e-6)

戻り値:

indicating whether or not point is within Face

戻り値の型:

bool

property is_planar: Plane | None

Is the face planar even though its geom_type may not be PLANE - if so return Plane

property length: None | float

length of planar face

location_at(surface_point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, *, x_dir: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Location

location_at(u: float, v: float, *, x_dir: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Location

location_at

Get the location (origin and orientation) on the surface of the face.

This method supports two overloads:

1. location_at(u: float, v: float, *, x_dir: VectorLike | None = None) -> Location - Specifies the point in normalized UV parameter space of the face. - u and v are floats between 0.0 and 1.0. - Optionally override the local X direction using x_dir.

2. location_at(surface_point: VectorLike, *, x_dir: VectorLike | None = None) -> Location - Projects the given 3D point onto the face surface. - The point must be reasonably close to the face. - Optionally override the local X direction using x_dir.

If no arguments are provided, the location at the center of the face (u=0.5, v=0.5) is returned.

パラメータ:

• u (float) -- Normalized horizontal surface parameter (optional).

• v (float) -- Normalized vertical surface parameter (optional).

• surface_point (VectorLike) -- A 3D point near the surface (optional).

• x_dir (VectorLike, optional) -- Direction for the local X axis. If not given, the tangent in the U direction is used.

戻り値:

A full 3D placement at the specified point on the face surface.

戻り値の型:

Location

例外:

ValueError -- If only one of u or v is provided or invalid keyword args are passed.

classmethod make_bezier_surface(points: list[list[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]]], weights: list[list[float]] | None = None) → Face

Construct a Bézier surface from the provided 2d array of points.

パラメータ:

• points (list[list[VectorLike]]) -- a 2D list of control points

• weights (list[list[float]], optional) -- control point weights. Defaults to None.

例外:

• ValueError -- Too few control points

• ValueError -- Too many control points

• ValueError -- A weight is required for each control point

戻り値:

a potentially non-planar face

戻り値の型:

Face

classmethod make_gordon_surface(profiles: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | Edge], guides: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | Edge], tolerance: float = 0.0003) → Face

Constructs a Gordon surface from a network of profile and guide curves.

Requirements: 1. Profiles and guides may be defined as points or curves. 2. Only the first or last profile or guide may be a point. 3. At least one profile and one guide must be a non-point curve. 4. Each profile must intersect with every guide. 5. Both ends of every profile must lie on a guide. 6. Both ends of every guide must lie on a profile.

パラメータ:

• profiles (Iterable[VectorLike | Edge]) -- Profiles defined as points or edges.

• guides (Iterable[VectorLike | Edge]) -- Guides defined as points or edges.

• tolerance (float, optional) -- Tolerance used for surface construction and intersection calculations.

例外:

ValueError -- input Edge cannot be empty.

戻り値:

the interpolated Gordon surface

戻り値の型:

Face

make_holes(interior_wires: list[Wire]) → Face

Make Holes in Face

Create holes in the Face 'self' from interior_wires which must be entirely interior. Note that making holes in faces is more efficient than using boolean operations with solid object. Also note that OCCT core may fail unless the orientation of the wire is correct - use Wire(forward_wire.wrapped.Reversed()) to reverse a wire.

サンプル

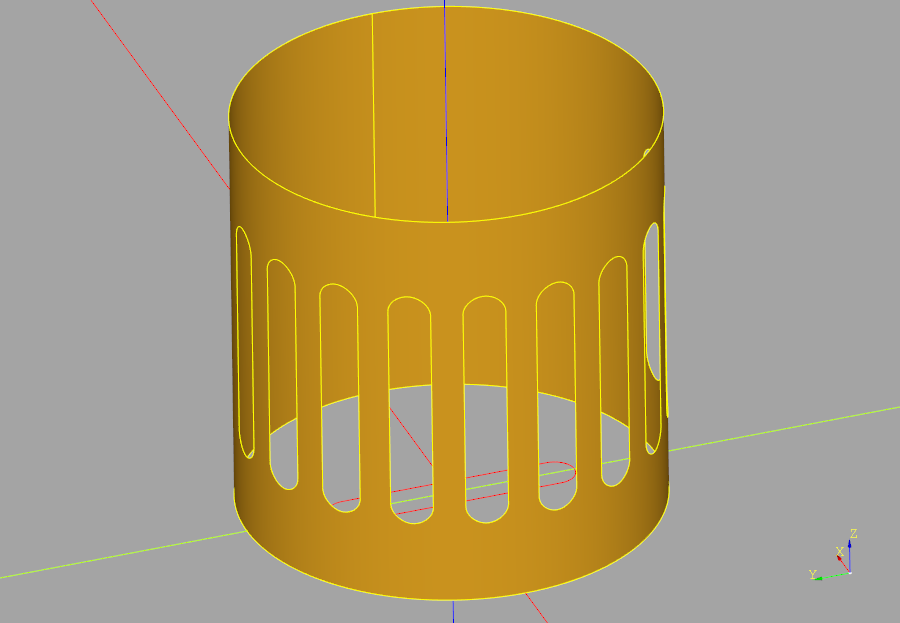

For example, make a series of slots on the curved walls of a cylinder.

パラメータ:

• interior_wires -- a list of hole outline wires

• interior_wires -- list[Wire]:

戻り値:

'self' with holes

戻り値の型:

Face

例外:

• RuntimeError -- adding interior hole in non-planar face with provided interior_wires

• RuntimeError -- resulting face is not valid

classmethod make_plane(plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Face

Create a unlimited size Face aligned with plane

classmethod make_rect(width: float, height: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Face

Make a Rectangle centered on center with the given normal

パラメータ:

• width (float, optional) -- width (local x).

• height (float, optional) -- height (local y).

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

戻り値:

The centered rectangle

戻り値の型:

Face

classmethod make_surface(exterior: Wire | Iterable[Edge], surface_points: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]] | None = None, interior_wires: Iterable[Wire] | None = None) → Face

Create Non-Planar Face

Create a potentially non-planar face bounded by exterior (wire or edges), optionally refined by surface_points with optional holes defined by interior_wires.

パラメータ:

• exterior (Union[Wire, list[Edge]]) -- Perimeter of face

• surface_points (list[VectorLike], optional) -- Points on the surface that refine the shape. Defaults to None.

• interior_wires (list[Wire], optional) -- Hole(s) in the face. Defaults to None.

例外:

• RuntimeError -- Internal error building face

• RuntimeError -- Error building non-planar face with provided surface_points

• RuntimeError -- Error adding interior hole

• RuntimeError -- Generated face is invalid

戻り値:

Potentially non-planar face

戻り値の型:

Face

classmethod make_surface_from_array_of_points(points: list[list[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]]], tol: float = 0.01, smoothing: tuple[float, float, float] | None = None, min_deg: int = 1, max_deg: int = 3) → Face

Approximate a spline surface through the provided 2d array of points. The first dimension correspond to points on the vertical direction in the parameter space of the face. The second dimension correspond to points on the horizontal direction in the parameter space of the face. The 2 dimensions are U,V dimensions of the parameter space of the face.

パラメータ:

• points (list[list[VectorLike]]) -- a 2D list of points, first dimension is V parameters second is U parameters.

• tol (float, optional) -- tolerance of the algorithm. Defaults to 1e-2.

• smoothing (Tuple[float, float, float], optional) -- optional tuple of 3 weights use for variational smoothing. Defaults to None.

• min_deg (int, optional) -- minimum spline degree. Enforced only when smoothing is None. Defaults to 1.

• max_deg (int, optional) -- maximum spline degree. Defaults to 3.

例外:

ValueError -- B-spline approximation failed

戻り値:

a potentially non-planar face defined by points

戻り値の型:

Face

classmethod make_surface_from_curves(edge1: Edge, edge2: Edge) → Face

classmethod make_surface_from_curves(wire1: Wire, wire2: Wire) → Face

make_surface_from_curves

Create a ruled surface out of two edges or two wires. If wires are used then these must have the same number of edges.

パラメータ:

• curve1 (Union[Edge,Wire]) -- side of surface

• curve2 (Union[Edge,Wire]) -- opposite side of surface

戻り値:

potentially non planar surface

戻り値の型:

Face

classmethod make_surface_patch(edge_face_constraints: Iterable[tuple[Edge, Face, ContinuityLevel]] | None = None, edge_constraints: Iterable[Edge] | None = None, point_constraints: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]] | None = None) → Face

Create a potentially non-planar face patch bounded by exterior edges which can be optionally refined using support faces to ensure e.g. tangent surface continuity. Also can optionally refine the surface using surface points.

パラメータ:

• edge_face_constraints (list[tuple[Edge, Face, ContinuityLevel]], optional) -- Edges defining perimeter of face with adjacent support faces subject to ContinuityLevel. Defaults to None.

• edge_constraints (list[Edge], optional) -- Edges defining perimeter of face without adjacent support faces. Defaults to None.

• point_constraints (list[VectorLike], optional) -- Points on the surface that refine the shape. Defaults to None.

例外:

• RuntimeError -- Error building non-planar face with provided constraints

• RuntimeError -- Generated face is invalid

戻り値:

Potentially non-planar face

戻り値の型:

Face

normal_at(surface_point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Vector

normal_at(u: float, v: float) → Vector

normal_at

Computes the normal vector at the desired location on the face.

パラメータ:

surface_point (VectorLike, optional) -- a point that lies on the surface where the normal. Defaults to None.

戻り値:

surface normal direction

戻り値の型:

Vector

order = 2.0

outer_wire() → Wire

Extract the perimeter wire from this Face

position_at(u: float, v: float) → Vector

Computes a point on the Face given u, v coordinates.

パラメータ:

• u (float) -- the horizontal coordinate in the parameter space of the Face, between 0.0 and 1.0

• v (float) -- the vertical coordinate in the parameter space of the Face, between 0.0 and 1.0

戻り値:

point on Face

戻り値の型:

Vector

project_to_shape(target_object: Shape, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → ShapeList[Face | Shell]

Project Face to target Object

Project a Face onto a Shape generating new Face(s) on the surfaces of the object.

A projection with no taper is illustrated below:

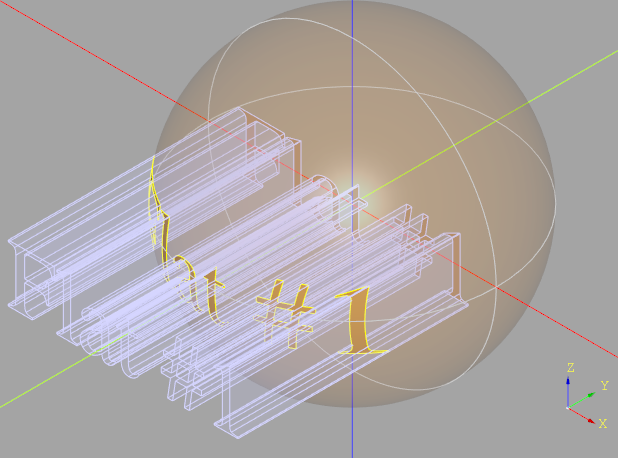

Note that an array of faces is returned as the projection might result in faces on the "front" and "back" of the object (or even more if there are intermediate surfaces in the projection path). faces "behind" the projection are not returned.

パラメータ:

• target_object (Shape) -- Object to project onto

• direction (VectorLike) -- projection direction

戻り値:

Face(s) projected on target object ordered by distance

戻り値の型:

ShapeList[Face]

property radii: None | tuple[float, float]

Return the major and minor radii of a torus otherwise None

property radius: None | float

Return the radius of a cylinder or sphere, otherwise None

classmethod revolve(profile: Edge, angle: float, axis: Axis) → Face

sweep

Revolve an Edge around an axis.

パラメータ:

• profile (Edge) -- the object to sweep

• angle (float) -- the angle to revolve through

• axis (Axis) -- rotation Axis

戻り値:

resulting face

戻り値の型:

Face

property seams: ShapeList[Edge]

Return the seams contained within this Face

property semi_angle: None | float

Return the semi angle of a cone, otherwise None

classmethod sew_faces(faces: Iterable[Face]) → list[ShapeList[Face]]

sew faces

Group contiguous faces and return them in a list of ShapeList

パラメータ:

faces (Iterable[Face]) -- Faces to sew together

例外:

RuntimeError -- OCCT SewedShape generated unexpected output

戻り値:

grouped contiguous faces

戻り値の型:

list[ShapeList[Face]]

classmethod sweep(profile: Curve | Edge | Wire, path: Curve | Edge | Wire, transition=<Transition.TRANSFORMED>) → Face

Sweep a 1D profile along a 1D path. Both the profile and path must be composed of only 1 Edge.

パラメータ:

• profile (Union[Curve,Edge,Wire]) -- the object to sweep

• path (Union[Curve,Edge,Wire]) -- the path to follow when sweeping

• transition (Transition, optional) -- handling of profile orientation at C1 path discontinuities. Defaults to Transition.TRANSFORMED.

例外:

ValueError -- Only 1 Edge allowed in profile & path

戻り値:

resulting face, may be non-planar

戻り値の型:

Face

to_arcs(tolerance: float = 0.001) → Face

Approximate planar face with arcs and straight line segments.

This is a utility used internally to convert or adapt a face for Boolean operations. Its purpose is not typically for general use, but rather as a helper within the Boolean kernel to ensure input faces are in a compatible and canonical form.

パラメータ:

tolerance (float, optional) -- Approximation tolerance. Defaults to 1e-3.

戻り値:

approximated face

戻り値の型:

Face

property uv_face: Face

Create a planar face from a face's parametric-space boundary.

Each boundary edge's pcurve on self is converted to a normal build123d Edge on the XY plane, where X is the surface U parameter and Y is the surface V parameter. The original outer/inner wire structure is kept so the result can be displayed with normal build123d/ocp-vscode tooling.

パラメータ:

source_face -- Planar or non-planar face to inspect.

戻り値:

A planar Face in UV parameter space.

property volume: float

volume - the volume of this Face, which is always zero

property width: None | float

width of planar face

wire() → Wire

Return the outerwire, generate a warning if inner_wires present

without_holes() → Face

Remove all of the holes from this face.

戻り値:

A new Face instance identical to the original but without any holes.

戻り値の型:

Face

wrap(planar_shape: Edge, surface_loc: Location, tolerance: float = 0.001, extension_factor: float = 0.1) → Edge

wrap(planar_shape: Wire, surface_loc: Location, tolerance: float = 0.001, extension_factor: float = 0.1) → Wire

wrap(planar_shape: Face, surface_loc: Location, tolerance: float = 0.001, extension_factor: float = 0.1) → Face

wrap

Wrap a planar 2D shape onto a 3D surface.

This method conforms a 2D shape defined on the XY plane (Edge, Wire, or Face) to the curvature of a non-planar 3D Face (the target surface), starting at a specified surface location. The operation attempts to preserve the original edge lengths and shape as closely as possible while minimizing the geometric distortion that naturally arises when mapping flat geometry onto curved surfaces.

The wrapping process follows the local orientation of the surface and progressively fits each edge along the curvature. To help ensure continuity, the first and last edges are extended and trimmed to close small gaps introduced by distortion. The final shape is tightly aligned to the surface geometry.

This method is useful for applying flat features—such as decorative patterns, cutouts, or boundary outlines—onto curved or freeform surfaces while retaining their original proportions.

パラメータ:

• planar_shape (Edge | Wire | Face) -- flat shape to wrap around surface

• surface_loc (Location) -- location on surface to wrap

• tolerance (float, optional) -- maximum allowed error. Defaults to 0.001

• extension_factor (float, optional) -- amount to extend the wrapped first and last edges to allow them to cross. Defaults to 0.1

例外:

ValueError -- Invalid planar shape

戻り値:

wrapped shape

戻り値の型:

Edge | Wire | Face

wrap_faces(faces: Iterable[Face], path: Wire | Edge, start: float = 0.0) → ShapeList[Face]

Wrap a sequence of 2D faces onto a 3D surface, aligned along a guiding path.

This method places multiple planar Face objects (defined in the XY plane) onto a curved 3D surface (self), following a given path (Wire or Edge) that lies on or closely follows the surface. Each face is spaced along the path according to its original horizontal (X-axis) position, preserving the relative layout of the input faces.

The wrapping process attempts to maintain the shape and size of each face while minimizing distortion. Each face is repositioned to the origin, then individually wrapped onto the surface starting at a specific point along the path. The face's new orientation is defined using the path's tangent direction and the surface normal at that point.

This is particularly useful for placing a series of features—such as embossed logos, engraved labels, or patterned tiles—onto a freeform or cylindrical surface, aligned along a reference edge or curve.

パラメータ:

• faces (Iterable[Face]) -- An iterable of 2D planar faces to be wrapped.

• path (Wire | Edge) -- A curve on the target surface that defines the alignment direction. The X-position of each face is mapped to a relative position along this path.

• start (float, optional) -- The relative starting point on the path (between 0.0 and 1.0) where the first face should be placed. Defaults to 0.0.

戻り値:

A list of wrapped face objects, aligned and conformed to the

surface.

戻り値の型:

ShapeList[Face]

class Mixin1D(obj: TopoDS_Shape | None = None, label: str = '', color: ColorLike | None = None, parent: Compound | None = None)

Methods to add to the Edge and Wire classes

__matmul__(position: float) → Vector

Position on wire operator @

__mod__(position: float) → Vector

Tangent on wire operator %

classmethod cast(obj: TopoDS_Shape) → Vertex | Edge | Wire

Returns the right type of wrapper, given a OCCT object

center(center_of: ~build123d.build_enums.CenterOf = <CenterOf.GEOMETRY>) → Vector

Center of object

Return the center based on center_of

パラメータ:

center_of (CenterOf, optional) -- centering option. Defaults to CenterOf.GEOMETRY.

戻り値:

center

戻り値の型:

Vector

common_plane(*lines: Edge | Wire | None, tolerance: float = 1e-06) → None | Plane

Find the plane containing all the edges/wires (including self). If there is no common plane return None. If the edges are coaxial, select one of the infinite number of valid planes.

パラメータ:

• lines (sequence of Edge | Wire) -- edges in common with self

• tolerance (float) -- amount lines can deviate from plane. Defaults to TOLERANCE.

戻り値:

Either the common plane or None

戻り値の型:

None | Plane

curvature_comb(count: int = 100, max_tooth_size: float | None = None) → ShapeList[Edge]

Build a curvature comb for a planar (XY) 1D curve.

A curvature comb is a set of short line segments (“teeth”) erected perpendicular to the curve that visualize the signed curvature κ(u). Tooth length is proportional to |κ| and the direction encodes the sign (left normal for κ>0, right normal for κ<0). This is useful for inspecting fairness and continuity (C0/C1/C2) of edges and wires.

パラメータ:

• count (int, optional) -- Number of uniformly spaced samples over the normalized parameter. Increase for a denser comb. Defaults to 100.

• max_tooth_size (float | None, optional) -- Maximum tooth height in model units. If None, set to 10% maximum curve dimension. Defaults to None.

例外:

• ValueError -- Empty curve.

• ValueError -- If the curve is not planar on Plane.XY.

戻り値:

A list of short Edge objects (lines) anchored on the curve and oriented along the left normal n̂ = normalize(t) × +Z.

戻り値の型:

ShapeList[Edge]

メモ

• On circles, κ = 1/R so tooth length is constant.

• On straight segments, κ = 0 so no teeth are drawn.

• At inflection points κ→0 and the tooth flips direction.

• At C0 corners the tangent is discontinuous; nearby teeth may jump. C1 yields continuous direction; C2 yields continuous magnitude as well.

サンプル

>>> comb = my_wire.curvature_comb(count=200, max_tooth_size=2.0)
>>> show(my_wire, Curve(comb))

derivative_at(position: float | ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float], order: int = 2, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>) → Vector

Derivative At

Generate a derivative along the underlying curve.

パラメータ:

• position (float | VectorLike) -- distance, parameter value or point

• order (int) -- derivative order. Defaults to 2

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

例外:

ValueError -- position must be a float or a point

戻り値:

position on the underlying curve

戻り値の型:

Vector

end_point() → Vector

The end point of this edge.

Note that circles may have identical start and end points.

classmethod extrude(obj: Shape, direction: VectorLike) → Edge | Face | Shell | Solid | Compound

Unused - only here because Mixin1D is a subclass of Shape

property is_closed: bool

Are the start and end points equal?

property is_forward: bool

Does the Edge/Wire loop forward or reverse

property is_interior: bool

Check if the edge is an interior edge.

An interior edge lies between surfaces that are part of the body (internal to the geometry) and does not form part of the exterior boundary.

戻り値:

True if the edge is an interior edge, False otherwise.

戻り値の型:

bool

property length: float

Edge or Wire length

location_at(distance: float, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>, frame_method: ~build123d.build_enums.FrameMethod = <FrameMethod.FRENET>, x_dir: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | None = None) → Location

Locations along curve

Generate a location along the underlying curve.

パラメータ:

• distance (float) -- distance or parameter value

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

• frame_method (FrameMethod, optional) -- moving frame calculation method. The FRENET frame can “twist” or flip unexpectedly, especially near flat spots. The CORRECTED frame behaves more like a “camera dolly” or sweep profile would — it's smoother and more stable. Defaults to FrameMethod.FRENET.

• x_dir (VectorLike, optional) -- override the x_dir to help with plane creation along a 1D shape. Must be perpendicular to shapes tangent. Defaults to None.

戻り値:

A Location object representing local coordinate system

at the specified distance.

戻り値の型:

Location

locations(distances: ~collections.abc.Iterable[float], position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>, frame_method: ~build123d.build_enums.FrameMethod = <FrameMethod.FRENET>, x_dir: ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] | None = None) → list[Location]

Locations along curve

Generate location along the curve

パラメータ:

• distances (Iterable[float]) -- distance or parameter values

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

• frame_method (FrameMethod, optional) -- moving frame calculation method. Defaults to FrameMethod.FRENET.

• x_dir (VectorLike, optional) -- override the x_dir to help with plane creation along a 1D shape. Must be perpendicular to shapes tangent. Defaults to None.

戻り値:

A list of Location objects representing local coordinate

systems at the specified distances.

戻り値の型:

list[Location]

normal() → Vector

Calculate the normal Vector. Only possible for planar curves.

戻り値:

normal vector

Args:

Returns:

offset_2d(distance: float, kind: ~build123d.build_enums.Kind = <Kind.ARC>, side: ~build123d.build_enums.Side = <Side.BOTH>, closed: bool = True) → Edge | Wire

2d Offset

Offsets a planar edge/wire

パラメータ:

• distance (float) -- distance from edge/wire to offset

• kind (Kind, optional) -- offset corner transition. Defaults to Kind.ARC.

• side (Side, optional) -- side to place offset. Defaults to Side.BOTH.

• closed (bool, optional) -- if Side!=BOTH, close the LEFT or RIGHT offset. Defaults to True.

例外:

• RuntimeError -- Multiple Wires generated

• RuntimeError -- Unexpected result type

戻り値:

offset wire

戻り値の型:

Wire

perpendicular_line(length: float, u_value: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Edge

Create a line on the given plane perpendicular to and centered on beginning of self

パラメータ:

• length (float) -- line length

• u_value (float) -- position along line between 0.0 and 1.0

• plane (Plane, optional) -- plane containing perpendicular line. Defaults to Plane.XY.

戻り値:

perpendicular line

戻り値の型:

Edge

position_at(position: float, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>) → Vector

Position At

Generate a position along the underlying Wire.

パラメータ:

• position (float) -- distance or parameter value

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

戻り値:

position on the underlying curve

戻り値の型:

Vector

positions(distances: ~collections.abc.Iterable[float] | None = None, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>, deflection: float | None = None) → list[Vector]

Positions along curve

Generate positions along the underlying curve

パラメータ:

• distances (Iterable[float] | None, optional) -- distance or parameter values. Defaults to None.

• position_mode (PositionMode, optional) -- position calculation mode only applies when using distances. Defaults to PositionMode.PARAMETER.

• deflection (float | None, optional) -- maximum deflection between the curve and the polygon that results from the computed points. Defaults to None.

戻り値:

positions along curve

戻り値の型:

list[Vector]

project(face: Face, direction: VectorLike, closest: bool = True) → Edge | Wire | ShapeList[Edge | Wire]

Project onto a face along the specified direction

パラメータ:

• face -- Face:

• direction -- VectorLike:

• closest -- bool: (Default value = True)

Returns:

project_to_viewport(viewport_origin: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], viewport_up: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 1), look_at: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, focus: float | None = None) → tuple[ShapeList[Edge], ShapeList[Edge]]

Project a shape onto a viewport returning visible and hidden Edges.

パラメータ:

• viewport_origin (VectorLike) -- location of viewport

• viewport_up (VectorLike, optional) -- direction of the viewport y axis. Defaults to (0, 0, 1).

• look_at (VectorLike, optional) -- point to look at. Defaults to None (center of shape).

• focus (float, optional) -- the focal length for perspective projection Defaults to None (orthographic projection)

戻り値:

visible & hidden Edges

戻り値の型:

tuple[ShapeList[Edge],ShapeList[Edge]]

property radius: float

Calculate the radius.

Note that when applied to a Wire, the radius is simply the radius of the first edge.

Args:

戻り値:

radius

例外:

ValueError -- if kernel can not reduce the shape to a circular edge

start_point() → Vector

The start point of this edge

Note that circles may have identical start and end points.

tangent_angle_at(location_param: float = 0.5, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → float

Compute the tangent angle at the specified location

パラメータ:

• location_param (float, optional) -- distance or parameter value. Defaults to 0.5.

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

• plane (Plane, optional) -- plane line was constructed on. Defaults to Plane.XY.

戻り値:

angle in degrees between 0 and 360

戻り値の型:

float

tangent_at(position: float | ~build123d.geometry.Vector | tuple[float, float] | tuple[float, float, float] | ~collections.abc.Sequence[float] = 0.5, position_mode: ~build123d.build_enums.PositionMode = <PositionMode.PARAMETER>) → Vector

Find the tangent at a given position on the 1D shape where the position is either a float (or int) parameter or a point that lies on the shape.

パラメータ:

• position (float | VectorLike) -- distance, parameter value, or point on shape. Defaults to 0.5.

• position_mode (PositionMode, optional) -- position calculation mode. Defaults to PositionMode.PARAMETER.

戻り値:

tangent value

戻り値の型:

Vector

property volume: float

volume - the volume of this Edge or Wire, which is always zero

class Mixin2D(obj: TopoDS_Shape | None = None, label: str = '', color: ColorLike | None = None, parent: Compound | None = None)

Additional methods to add to Face and Shell class

classmethod cast(obj: TopoDS_Shape) → Vertex | Edge | Wire | Face | Shell

Returns the right type of wrapper, given a OCCT object

classmethod extrude(obj: Shape, direction: VectorLike) → Edge | Face | Shell | Solid | Compound

Unused - only here because Mixin1D is a subclass of Shape

find_intersection_points(other: Axis, tolerance: float = 1e-06) → list[tuple[Vector, Vector]]

Find point and normal at intersection

Return both the point(s) and normal(s) of the intersection of the axis and the shape

パラメータ:

axis (Axis) -- axis defining the intersection line

戻り値:

Point and normal of intersection

戻り値の型:

list[tuple[Vector, Vector]]

abstract location_at(*args: Any, **kwargs: Any) → Location

A location from a face or shell

offset(amount: float) → Self

Return a copy of self moved along the normal by amount

project_to_viewport(viewport_origin: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], viewport_up: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 1), look_at: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, focus: float | None = None) → tuple[ShapeList[Edge], ShapeList[Edge]]

Project a shape onto a viewport returning visible and hidden Edges.

パラメータ:

• viewport_origin (VectorLike) -- location of viewport

• viewport_up (VectorLike, optional) -- direction of the viewport y axis. Defaults to (0, 0, 1).

• look_at (VectorLike, optional) -- point to look at. Defaults to None (center of shape).

• focus (float, optional) -- the focal length for perspective projection Defaults to None (orthographic projection)

戻り値:

visible & hidden Edges

戻り値の型:

tuple[ShapeList[Edge],ShapeList[Edge]]

split_by_perimeter(perimeter: Edge | Wire, keep: Literal[Keep.INSIDE, Keep.OUTSIDE]) → Face | Shell | ShapeList[Face] | None

split_by_perimeter(perimeter: Edge | Wire, keep: Literal[Keep.BOTH]) → tuple[Face | Shell | ShapeList[Face] | None, Face | Shell | ShapeList[Face] | None]

split_by_perimeter(perimeter: Edge | Wire) → Face | Shell | ShapeList[Face] | None

split_by_perimeter

Divide the faces of this object into those within the perimeter and those outside the perimeter.

Note: this method may fail if the perimeter intersects shape edges.

パラメータ:

• perimeter (Union[Edge,Wire]) -- closed perimeter

• keep (Keep, optional) -- which object(s) to return. Defaults to Keep.INSIDE.

例外:

• ValueError -- perimeter must be closed

• ValueError -- keep must be one of Keep.INSIDE|OUTSIDE|BOTH

戻り値:

Union[Face | Shell | ShapeList[Face] | None, Tuple[Face | Shell | ShapeList[Face] | None]: The result of the split operation.

• Keep.INSIDE: Returns the inside part as a Shell or Face, or None if no inside part is found.

• Keep.OUTSIDE: Returns the outside part as a Shell or Face, or None if no outside part is found.

• Keep.BOTH: Returns a tuple (inside, outside) where each element is either a Shell, Face, or None if no corresponding part is found.

touch(other: Shape, tolerance: float = 1e-06, found_faces: ShapeList | None = None, found_edges: ShapeList | None = None) → ShapeList

Find boundary contacts between this 2D shape and another shape.

Returns the highest-dimensional contact at each location, filtered to avoid returning lower-dimensional boundaries of higher-dimensional contacts.

For Face/Shell: - Face + Face → Vertex (shared corner or crossing point without edge/face overlap) - Face + Edge/Vertex → no touch (intersect already returns dim 0)

パラメータ:

• other -- Shape to find contacts with

• tolerance -- tolerance for contact detection

• found_faces -- pre-found faces to filter against (from Mixin3D.touch)

• found_edges -- pre-found edges to filter against (from Mixin3D.touch)

戻り値:

ShapeList of contact shapes (Vertex only for 2D+2D)

class Mixin3D(obj: TopoDS_Shape | None = None, label: str = '', color: ColorLike | None = None, parent: Compound | None = None)

Additional methods to add to 3D Shape classes

classmethod cast(obj: TopoDS_Shape) → Self

Returns the right type of wrapper, given a OCCT object

center(center_of: ~build123d.build_enums.CenterOf = <CenterOf.MASS>) → Vector

Return center of object

Find center of object

パラメータ:

center_of (CenterOf, optional) -- center option. Defaults to CenterOf.MASS.

例外:

• ValueError -- Center of GEOMETRY is not supported for this object

• NotImplementedError -- Unable to calculate center of mass of this object

戻り値:

center

戻り値の型:

Vector

chamfer(length: float, length2: float | None, edge_list: Iterable[Edge], face: Face | None = None) → Solid | Part

Chamfer

Chamfers the specified edges of this solid.

パラメータ:

• length (float) -- length > 0, the length (length) of the chamfer

• length2 (Optional[float]) -- length2 > 0, optional parameter for asymmetrical chamfer. Should be None if not required.

• edge_list (Iterable[Edge]) -- a list of Edge objects, which must belong to this solid

• face (Face, optional) -- identifies the side where length is measured. The edge(s) must be part of the face

戻り値:

Chamfered solid or 3D composite

戻り値の型:

Solid | Part

dprism(basis: Face | None, bounds: list[Face | Wire], depth: float | None = None, taper: float = 0, up_to_face: Face | None = None, thru_all: bool = True, additive: bool = True) → Solid

Make a prismatic feature (additive or subtractive)

パラメータ:

• basis (Optional[Face]) -- face to perform the operation on

• bounds (list[Union[Face,Wire]]) -- list of profiles

• depth (float, optional) -- depth of the cut or extrusion. Defaults to None.

• taper (float, optional) -- in degrees. Defaults to 0.

• up_to_face (Face, optional) -- a face to extrude until. Defaults to None.

• thru_all (bool, optional) -- cut thru_all. Defaults to True.

• additive (bool, optional) -- Defaults to True.

戻り値:

prismatic feature

戻り値の型:

Solid

classmethod extrude(obj: Shape, direction: VectorLike) → Edge | Face | Shell | Solid | Compound

Unused - only here because Mixin1D is a subclass of Shape

fillet(radius: float, edge_list: Iterable[Edge]) → Solid | Part

Fillet

Fillets the specified edges of this solid.

パラメータ:

• radius (float) -- float > 0, the radius of the fillet

• edge_list (Iterable[Edge]) -- a list of Edge objects, which must belong to this solid

戻り値:

Filleted solid or 3D composite

戻り値の型:

Solid | Part

find_intersection_points(other: Axis, tolerance: float = 1e-06) → list[tuple[Vector, Vector]]

Find point and normal at intersection

Return both the point(s) and normal(s) of the intersection of the axis and the shape

パラメータ:

axis (Axis) -- axis defining the intersection line

戻り値:

Point and normal of intersection

戻り値の型:

list[tuple[Vector, Vector]]

hollow(faces: ~collections.abc.Iterable[~topology.two_d.Face] | None, thickness: float, tolerance: float = 0.0001, kind: ~build123d.build_enums.Kind = <Kind.ARC>) → Solid

Hollow

Return the outer shelled solid of self.

パラメータ:

• faces (Optional[Iterable[Face]]) -- faces to be removed,

• list. (which must be part of the solid. Can be an empty)

• thickness (float) -- shell thickness - positive shells outwards, negative shells inwards.

• tolerance (float, optional) -- modelling tolerance of the method. Defaults to 0.0001.

• kind (Kind, optional) -- intersection type. Defaults to Kind.ARC.

例外:

ValueError -- Kind.TANGENT not supported

戻り値:

A hollow solid.

戻り値の型:

Solid

is_inside(point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], tolerance: float = 1e-06) → bool

Returns whether or not the point is inside a solid or compound object within the specified tolerance.

パラメータ:

• point -- tuple or Vector representing 3D point to be tested

• tolerance -- tolerance for inside determination, default=1.0e-6

• point -- VectorLike:

• tolerance -- float: (Default value = 1.0e-6)

戻り値:

bool indicating whether or not point is within solid

max_fillet(edge_list: Iterable[Edge], tolerance=0.1, max_iterations: int = 10) → float

Find Maximum Fillet Size

Find the largest fillet radius for the given Shape and edges with a recursive binary search.

サンプル

max_fillet_radius = my_shape.max_fillet(shape_edges) max_fillet_radius = my_shape.max_fillet(shape_edges, tolerance=0.5, max_iterations=8)

パラメータ:

• edge_list (Iterable[Edge]) -- a sequence of Edge objects, which must belong to this solid

• tolerance (float, optional) -- maximum error from actual value. Defaults to 0.1.

• max_iterations (int, optional) -- maximum number of recursive iterations. Defaults to 10.

例外:

• RuntimeError -- failed to find the max value

• ValueError -- the provided Shape is invalid

戻り値:

maximum fillet radius

戻り値の型:

float

offset_3d(openings: ~collections.abc.Iterable[~topology.two_d.Face] | None, thickness: float, tolerance: float = 0.0001, kind: ~build123d.build_enums.Kind = <Kind.ARC>) → Solid

Shell

Make an offset solid of self.

パラメータ:

• openings (Optional[Iterable[Face]]) -- faces to be removed, which must be part of the solid. Can be an empty list.

• thickness (float) -- offset amount - positive offset outwards, negative inwards

• tolerance (float, optional) -- modelling tolerance of the method. Defaults to 0.0001.

• kind (Kind, optional) -- intersection type. Defaults to Kind.ARC.

例外:

ValueError -- Kind.TANGENT not supported

戻り値:

A shelled solid.

戻り値の型:

Solid

project_to_viewport(viewport_origin: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], viewport_up: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 1), look_at: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, focus: float | None = None) → tuple[ShapeList[Edge], ShapeList[Edge]]

Project a shape onto a viewport returning visible and hidden Edges.

パラメータ:

• viewport_origin (VectorLike) -- location of viewport

• viewport_up (VectorLike, optional) -- direction of the viewport y axis. Defaults to (0, 0, 1).

• look_at (VectorLike, optional) -- point to look at. Defaults to None (center of shape).

• focus (float, optional) -- the focal length for perspective projection Defaults to None (orthographic projection)

戻り値:

visible & hidden Edges

戻り値の型:

tuple[ShapeList[Edge],ShapeList[Edge]]

class Shape(obj: TopoDS_Shape | None = None, label: str = '', color: ColorLike | None = None, parent: Compound | None = None)

Base class for all CAD objects such as Edge, Face, Solid, etc.

パラメータ:

• obj (TopoDS_Shape, optional) -- OCCT object. Defaults to None.

• label (str, optional) -- Defaults to ''.

• color (ColorLike, optional) -- Defaults to None.

• parent (Compound, optional) -- assembly parent. Defaults to None.

変数:

• wrapped (TopoDS_Shape) -- the OCP object

• label (str) -- user assigned label

• color (Color) -- object color

• (dict[str (joints) -- Joint]): dictionary of joints bound to this object (Solid only)

• children (Shape) -- list of assembly children of this object (Compound only)

• topo_parent (Shape) -- assembly parent of this object

__add__(other: None) → Self

__add__(other: Shape | Iterable[Shape]) → Self | Compound

fuse shape to self operator +

__and__(other: Shape | Iterable[Shape]) → None | Self | Compound

intersect shape with self operator &

__copy__() → Self

Return shallow copy or reference of self

Create an copy of this Shape that shares the underlying TopoDS_TShape.

Used when there is a need for many objects with the same CAD structure but at different Locations, etc. - for examples fasteners in a larger assembly. By sharing the TopoDS_TShape, the memory size of such assemblies can be greatly reduced.

Changes to the CAD structure of the base object will be reflected in all instances.

__deepcopy__(memo) → Self

Return deepcopy of self

__eq__(other) → bool

Check if two shapes are the same.

This method checks if the current shape is the same as the other shape. Two shapes are considered the same if they share the same TShape with the same Locations. Orientations may differ.

パラメータ:

other (Shape) -- The shape to compare with.

戻り値:

True if the shapes are the same, False otherwise.

戻り値の型:

bool

__hash__() → int

Return hash code

__rmul__(other: Plane | Location) → Self

__rmul__(other: Iterable[Plane | Location]) → list[Self]

right multiply for positioning operator *

__sub__(other: None) → Self

__sub__(other: Shape | Iterable[Shape]) → Self | Compound

cut shape from self operator -

property area: float

area -the surface area of all faces in this Shape

bounding_box(tolerance: float | None = None, optimal: bool = True) → BoundBox

Create a bounding box for this Shape.

パラメータ:

tolerance (float, optional) -- Defaults to None.

戻り値:

A box sized to contain this Shape

戻り値の型:

BoundBox

abstract classmethod cast(obj: TopoDS_Shape) → Self

Returns the right type of wrapper, given a OCCT object

clean() → Self

Remove internal edges

戻り値:

Original object with extraneous internal edges removed

戻り値の型:

Shape

closest_points(other: Shape | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → tuple[Vector, Vector]

Points on two shapes where the distance between them is minimal

property color: None | Color

Get the shape's color. If it's None, get the color of the nearest ancestor, assign it to this Shape and return this value.

static combined_center(objects: ~collections.abc.Iterable[~topology.shape_core.Shape], center_of: ~build123d.build_enums.CenterOf = <CenterOf.MASS>) → Vector

combined center

Calculates the center of a multiple objects.

パラメータ:

• objects (Iterable[Shape]) -- list of objects

• center_of (CenterOf, optional) -- centering option. Defaults to CenterOf.MASS.

例外:

ValueError -- CenterOf.GEOMETRY not implemented

戻り値:

center of multiple objects

戻り値の型:

Vector

composite_factories: ClassVar[dict[int | None, Callable[[Iterable[Shape]], Shape]]] = {1: <class 'topology.composite.Curve'>, 2: <class 'topology.composite.Sketch'>, 3: <class 'topology.composite.Part'>, None: <class 'topology.composite.Compound'>}

compound() → Compound

Return the Compound

compounds() → ShapeList[Compound]

compounds - all the compounds in this Shape

static compute_mass(obj: Shape) → float

Calculates the 'mass' of an object.

パラメータ:

• obj -- Compute the mass of this object

• obj -- Shape:

Returns:

copy_attributes_to(target: Shape, exceptions: Iterable[str] | None = None)

Copy common object attributes to target

Note that preset attributes of target will not be overridden.

パラメータ:

• target (Shape) -- object to gain attributes

• exceptions (Iterable[str], optional) -- attributes not to copy

例外:

ValueError -- invalid attribute

cut(*to_cut: Shape) → Self | Compound

Remove the positional arguments from this Shape.

パラメータ:

*to_cut -- Shape:

戻り値:

Resulting object may be of a different class than self

戻り値の型:

Self | Compound

distance(other: Shape) → float

Minimal distance between two shapes

パラメータ:

other -- Shape:

Returns:

distance_to(other: Shape | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → float

Minimal distance between two shapes

distance_to_with_closest_points(other: Shape | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → tuple[float, Vector, Vector]

Minimal distance between two shapes and the points on each shape

distances(*others: Shape) → Iterator[float]

Minimal distances to between self and other shapes

パラメータ:

*others -- Shape:

Returns:

downcast_LUT = {<TopAbs_ShapeEnum.TopAbs_COMPOUND: 0>: <built-in method Compound of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_COMPSOLID: 1>: <built-in method CompSolid of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_EDGE: 6>: <built-in method Edge of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_FACE: 4>: <built-in method Face of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_SHELL: 3>: <built-in method Shell of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_SOLID: 2>: <built-in method Solid of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_VERTEX: 7>: <built-in method Vertex of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_WIRE: 5>: <built-in method Wire of PyCapsule object>}

edge() → Edge

Return the Edge

edges() → ShapeList[Edge]

edges - all the edges in this Shape - subclasses may override

entities(topo_type: Literal['Vertex', 'Edge', 'Wire', 'Face', 'Shell', 'Solid', 'Compound']) → list[TopoDS_Shape]

Return all of the TopoDS sub entities of the given type

abstract classmethod extrude(obj: Shape, direction: VectorLike) → Edge | Face | Shell | Solid | Compound

Extrude a Shape in the provided direction. * Vertices generate Edges * Edges generate Faces * Wires generate Shells * Faces generate Solids * Shells generate Compounds

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Edge | Face | Shell | Solid | Compound

face() → Face

Return the Face

faces() → ShapeList[Face]

faces - all the faces in this Shape

faces_intersected_by_axis(axis: Axis, tol: float = 0.0001) → ShapeList[Face]

Line Intersection

Computes the intersections between the provided axis and the faces of this Shape

パラメータ:

• axis (Axis) -- Axis on which the intersection line rests

• tol (float, optional) -- Intersection tolerance. Defaults to 1e-4.

戻り値:

A list of intersected faces sorted by distance from axis.position

戻り値の型:

list[Face]

fix() → Self

fix - try to fix shape if not valid

fuse(*to_fuse: Shape, glue: bool = False, tol: float | None = None) → Self | Compound

Fuse a sequence of shapes into a single shape.

パラメータ:

• to_fuse (sequence Shape) -- shapes to fuse

• glue (bool, optional) -- performance improvement for some shapes. Defaults to False.

• tol (float, optional) -- tolerance. Defaults to None.

戻り値:

Resulting object may be of a different class than self

戻り値の型:

Self | Compound

geom_LUT_EDGE: dict[GeomAbs_CurveType, GeomType] = {<GeomAbs_CurveType.GeomAbs_BSplineCurve: 6>: <GeomType.BSPLINE>, <GeomAbs_CurveType.GeomAbs_BezierCurve: 5>: <GeomType.BEZIER>, <GeomAbs_CurveType.GeomAbs_Circle: 1>: <GeomType.CIRCLE>, <GeomAbs_CurveType.GeomAbs_Ellipse: 2>: <GeomType.ELLIPSE>, <GeomAbs_CurveType.GeomAbs_Hyperbola: 3>: <GeomType.HYPERBOLA>, <GeomAbs_CurveType.GeomAbs_Line: 0>: <GeomType.LINE>, <GeomAbs_CurveType.GeomAbs_OffsetCurve: 7>: <GeomType.OFFSET>, <GeomAbs_CurveType.GeomAbs_OtherCurve: 8>: <GeomType.OTHER>, <GeomAbs_CurveType.GeomAbs_Parabola: 4>: <GeomType.PARABOLA>}

geom_LUT_FACE: dict[GeomAbs_SurfaceType, GeomType] = {<GeomAbs_SurfaceType.GeomAbs_BSplineSurface: 6>: <GeomType.BSPLINE>, <GeomAbs_SurfaceType.GeomAbs_BezierSurface: 5>: <GeomType.BEZIER>, <GeomAbs_SurfaceType.GeomAbs_Cone: 2>: <GeomType.CONE>, <GeomAbs_SurfaceType.GeomAbs_Cylinder: 1>: <GeomType.CYLINDER>, <GeomAbs_SurfaceType.GeomAbs_OffsetSurface: 9>: <GeomType.OFFSET>, <GeomAbs_SurfaceType.GeomAbs_OtherSurface: 10>: <GeomType.OTHER>, <GeomAbs_SurfaceType.GeomAbs_Plane: 0>: <GeomType.PLANE>, <GeomAbs_SurfaceType.GeomAbs_Sphere: 3>: <GeomType.SPHERE>, <GeomAbs_SurfaceType.GeomAbs_SurfaceOfExtrusion: 8>: <GeomType.EXTRUSION>, <GeomAbs_SurfaceType.GeomAbs_SurfaceOfRevolution: 7>: <GeomType.REVOLUTION>, <GeomAbs_SurfaceType.GeomAbs_Torus: 4>: <GeomType.TORUS>}

property geom_type: GeomType

Gets the underlying geometry type.

戻り値:

The geometry type of the shape

戻り値の型:

GeomType

static get_shape_list(shape: Shape, entity_type: Literal['Vertex']) → ShapeList[Vertex]

static get_shape_list(shape: Shape, entity_type: Literal['Edge']) → ShapeList[Edge]

static get_shape_list(shape: Shape, entity_type: Literal['Wire']) → ShapeList[Wire]

static get_shape_list(shape: Shape, entity_type: Literal['Face']) → ShapeList[Face]

static get_shape_list(shape: Shape, entity_type: Literal['Shell']) → ShapeList[Shell]

static get_shape_list(shape: Shape, entity_type: Literal['Solid']) → ShapeList[Solid]

static get_shape_list(shape: Shape, entity_type: Literal['Compound']) → ShapeList[Compound]

Helper to extract entities of a specific type from a shape.

static get_single_shape(shape: Shape, entity_type: Literal['Vertex']) → Vertex

static get_single_shape(shape: Shape, entity_type: Literal['Edge']) → Edge

static get_single_shape(shape: Shape, entity_type: Literal['Wire']) → Wire

static get_single_shape(shape: Shape, entity_type: Literal['Face']) → Face

static get_single_shape(shape: Shape, entity_type: Literal['Shell']) → Shell

static get_single_shape(shape: Shape, entity_type: Literal['Solid']) → Solid

static get_single_shape(shape: Shape, entity_type: Literal['Compound']) → Compound

Return the single entity of the requested type.

例外:

ValueError -- if the number of matching entities is not exactly one.

get_top_level_shapes() → ShapeList[Shape]

Retrieve the first level of child shapes from the shape.

This method collects all the non-compound shapes directly contained in the current shape. If the wrapped shape is a TopoDS_Compound, it traverses its immediate children and collects all shapes that are not further nested compounds. Nested compounds are traversed to gather their non-compound elements without returning the nested compound itself.

戻り値:

A list of all first-level non-compound child shapes.

戻り値の型:

ShapeList[Shape]

サンプル

If the current shape is a compound containing both simple shapes (e.g., edges, vertices) and other compounds, the method returns a list of only the simple shapes directly contained at the top level.

property global_location: Location

The location of this Shape relative to the global coordinate system.

This property computes the composite transformation by traversing the hierarchy from the root of the assembly to this node, combining the location of each ancestor. It reflects the absolute position and orientation of the shape in world space, even when the shape is deeply nested within an assembly.

注釈

This is only meaningful when the Shape is part of an assembly tree where parent-child relationships define relative placements.

intersect(*to_intersect: Shape | Vector | Location | Axis | Plane, tolerance: float = 1e-06, include_touched: bool = False) → ShapeList | None

Find where bodies/interiors meet (overlap or crossing geometry).

This is the main entry point for intersection operations. Handles geometry conversion and delegates to subclass _intersect() implementations.

Semantics:

• Multiple arguments use AND (chaining): c.intersect(s1, s2) = c ∩ s1 ∩ s2

• Compound arguments use OR (distribution): c.intersect(Compound([s1, s2])) = (c ∩ s1) ∪ (c ∩ s2)

パラメータ:

• to_intersect -- Shape(s) or geometry objects to intersect with

• tolerance -- tolerance for intersection detection

• include_touched -- if True, include boundary contacts without interior overlap (only relevant when Solids are involved)

戻り値:

ShapeList of intersection results, or None if no intersection

inverse_shape_LUT = {'CompSolid': <TopAbs_ShapeEnum.TopAbs_COMPSOLID: 1>, 'Compound': <TopAbs_ShapeEnum.TopAbs_COMPOUND: 0>, 'Edge': <TopAbs_ShapeEnum.TopAbs_EDGE: 6>, 'Face': <TopAbs_ShapeEnum.TopAbs_FACE: 4>, 'Shell': <TopAbs_ShapeEnum.TopAbs_SHELL: 3>, 'Solid': <TopAbs_ShapeEnum.TopAbs_SOLID: 2>, 'Vertex': <TopAbs_ShapeEnum.TopAbs_VERTEX: 7>, 'Wire': <TopAbs_ShapeEnum.TopAbs_WIRE: 5>}

is_equal(other: Shape) → bool

Returns True if two shapes are equal, i.e. if they share the same TShape with the same Locations and Orientations. Also see is_same().

パラメータ:

other -- Shape:

Returns:

property is_manifold: bool

Check if each edge in the given Shape has exactly two faces associated with it (skipping degenerate edges). If so, the shape is manifold.

戻り値:

is the shape manifold or water tight

戻り値の型:

bool

property is_null: bool

Returns true if this shape is null. In other words, it references no underlying shape with the potential to be given a location and an orientation.

property is_planar_face: bool

Is the shape a planar face even though its geom_type may not be PLANE

is_same(other: Shape) → bool

Returns True if other and this shape are same, i.e. if they share the same TShape with the same Locations. Orientations may differ. Also see is_equal()

パラメータ:

other -- Shape:

Returns:

property is_valid: bool

Returns True if no defect is detected on the shape S or any of its subshapes. See the OCCT docs on BRepCheck_Analyzer::IsValid for a full description of what is checked.

locate(loc: Location) → Self

Apply a location in absolute sense to self

パラメータ:

loc -- Location:

Returns:

located(loc: Location) → Self

Apply a location in absolute sense to a copy of self

パラメータ:

loc (Location) -- new absolute location

戻り値:

copy of Shape at location

戻り値の型:

Shape

property location: Location

Get this Shape's Location

classmethod make_composite(shapes: Iterable[Shape], dimension: int | None = None) → Shape

Build the registered composite for a dimension.

property matrix_of_inertia: list[list[float]]

Compute the inertia matrix (moment of inertia tensor) of the shape.

The inertia matrix represents how the mass of the shape is distributed with respect to its reference frame. It is a 3×3 symmetric tensor that describes the resistance of the shape to rotational motion around different axes.

戻り値:

A 3×3 nested list representing the inertia matrix. The elements of the matrix are given as:

Ixx Ixy Ixz |

Ixy Iyy Iyz |

Ixz Iyz Izz |

where: - Ixx, Iyy, Izz are the moments of inertia about the X, Y, and Z axes. - Ixy, Ixz, Iyz are the products of inertia.

戻り値の型:

list[list[float]]

サンプル

>>> obj = MyShape()
>>> obj.matrix_of_inertia
[[1000.0, 50.0, 0.0],
[50.0, 1200.0, 0.0],
[0.0, 0.0, 300.0]]

メモ

• The inertia matrix is computed relative to the shape's center of mass.

• It is commonly used in structural analysis, mechanical simulations, and physics-based motion calculations.

mesh(tolerance: float, angular_tolerance: float = 0.1)

Generate triangulation if none exists.

パラメータ:

• tolerance -- float:

• angular_tolerance -- float: (Default value = 0.1)

Returns:

mirror(mirror_plane: Plane | None = None) → Self

Applies a mirror transform to this Shape. Does not duplicate objects about the plane.

パラメータ:

mirror_plane (Plane) -- The plane to mirror about. Defaults to Plane.XY

戻り値:

The mirrored shape

move(loc: Location) → Self

Apply a location in relative sense (i.e. update current location) to self

パラメータ:

loc -- Location:

Returns:

moved(loc: Location | Plane) → Self

Apply a location in relative sense (i.e. update current location) to a copy of self

パラメータ:

loc (Location | Plane) -- new location relative to current location

戻り値:

copy of Shape moved to relative location

戻り値の型:

Shape

property orientation: Vector

Get the orientation component of this Shape's Location

oriented_bounding_box() → OrientedBoundBox

Create an oriented bounding box for this Shape.

戻り値:

A box oriented and sized to contain this Shape

戻り値の型:

OrientedBoundBox

property position: Vector

Get the position component of this Shape's Location

property principal_properties: list[tuple[Vector, float]]

Compute the principal moments of inertia and their corresponding axes.

戻り値:

A list of tuples, where each tuple contains: - A Vector representing the axis of inertia. - A float representing the moment of inertia for that axis.

戻り値の型:

list[tuple[Vector, float]]

サンプル

>>> obj = MyShape()
>>> obj.principal_properties
[(Vector(1, 0, 0), 1200.0),
(Vector(0, 1, 0), 1000.0),
(Vector(0, 0, 1), 300.0)]

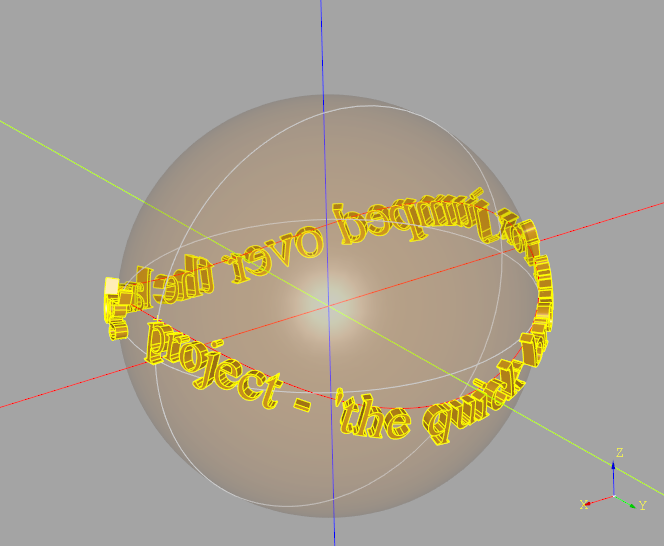

project_faces(faces: list[Face] | Compound, path: Wire | Edge, start: float = 0) → ShapeList[Face]

Projected Faces following the given path on Shape

Project by positioning each face of to the shape along the path and projecting onto the surface.

Note that projection may result in distortion depending on the shape at a position along the path.

パラメータ:

• faces (Union[list[Face], Compound]) -- faces to project

• path -- Path on the Shape to follow

• start -- Relative location on path to start the faces. Defaults to 0.

戻り値:

The projected faces

radius_of_gyration(axis: Axis) → float

Compute the radius of gyration of the shape about a given axis.

The radius of gyration represents the distance from the axis at which the entire mass of the shape could be concentrated without changing its moment of inertia. It provides insight into how mass is distributed relative to the axis and is useful in structural analysis, rotational dynamics, and mechanical simulations.

パラメータ:

axis (Axis) -- The axis about which the radius of gyration is computed. The axis should be defined in the same coordinate system as the shape.

戻り値:

The radius of gyration in the same units as the shape's dimensions.

戻り値の型:

float

サンプル

>>> obj = MyShape()
>>> axis = Axis((0, 0, 0), (0, 0, 1))
>>> obj.radius_of_gyration(axis)
5.47

メモ

• The radius of gyration is computed based on the shape’s mass properties.

• It is useful for evaluating structural stability and rotational behavior.

classmethod register_composite_factory(dimension: int | None, factory: Callable[[Iterable[Shape]], Shape]) → None

Register a composite constructor without importing it here.

relocate(loc: Location)

Change the location of self while keeping it geometrically similar

パラメータ:

loc (Location) -- new location to set for self

rotate(axis: Axis, angle: float, transform: bool = False) → Self

rotate a copy

Rotates a shape around an axis.

パラメータ:

• axis (Axis) -- rotation Axis

• angle (float) -- angle to rotate, in degrees

• transform (bool) -- regenerate the shape instead of just changing its location. Defaults to False.

戻り値:

a copy of the shape, rotated

scale(factor: float | tuple[float, float, float], about: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Self

Scale this shape about a point.

Non-uniform scaling may change the underlying geometry type to splines. When about isn't provided, the shape is scaled about its location.

パラメータ:

• factor (float | tuple[float, float, float]) -- uniform scale factor or three scale factors for the X, Y and Z directions.

• about (VectorLike, optional) -- point to scale about. Defaults to the shape's location position.

戻り値:

a copy of the scaled shape.

戻り値の型:

Shape

shape_LUT = {<TopAbs_ShapeEnum.TopAbs_COMPOUND: 0>: 'Compound', <TopAbs_ShapeEnum.TopAbs_COMPSOLID: 1>: 'CompSolid', <TopAbs_ShapeEnum.TopAbs_EDGE: 6>: 'Edge', <TopAbs_ShapeEnum.TopAbs_FACE: 4>: 'Face', <TopAbs_ShapeEnum.TopAbs_SHELL: 3>: 'Shell', <TopAbs_ShapeEnum.TopAbs_SOLID: 2>: 'Solid', <TopAbs_ShapeEnum.TopAbs_VERTEX: 7>: 'Vertex', <TopAbs_ShapeEnum.TopAbs_WIRE: 5>: 'Wire'}

shape_properties_LUT: dict[TopAbs_ShapeEnum, Callable[[TopoDS_Shape, GProp_GProps], None] | None] = {<TopAbs_ShapeEnum.TopAbs_COMPOUND: 0>: <built-in method VolumeProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_COMPSOLID: 1>: <built-in method VolumeProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_EDGE: 6>: <built-in method LinearProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_FACE: 4>: <built-in method SurfaceProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_SHELL: 3>: <built-in method SurfaceProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_SOLID: 2>: <built-in method VolumeProperties_s of PyCapsule object>, <TopAbs_ShapeEnum.TopAbs_VERTEX: 7>: None, <TopAbs_ShapeEnum.TopAbs_WIRE: 5>: <built-in method LinearProperties_s of PyCapsule object>}

property shape_type: Literal['Vertex', 'Edge', 'Wire', 'Face', 'Shell', 'Solid', 'Compound']

Return the shape type string for this class

shell() → Shell

Return the Shell

shells() → ShapeList[Shell]

shells - all the shells in this Shape

show_topology(limit_class: Literal['Compound', 'Edge', 'Face', 'Shell', 'Solid', 'Vertex', 'Wire'] = 'Vertex', show_center: bool | None = None) → str

Display internal topology

Display the internal structure of a Compound 'assembly' or Shape. Example:

>>> c1.show_topology()

c1 is the root         Compound at 0x7f4a4cafafa0, Location(...))
├──                    Solid    at 0x7f4a4cafafd0, Location(...))
├── c2 is 1st compound Compound at 0x7f4a4cafaee0, Location(...))
│   ├──                Solid    at 0x7f4a4cafad00, Location(...))
│   └──                Solid    at 0x7f4a11a52790, Location(...))
└── c3 is 2nd          Compound at 0x7f4a4cafad60, Location(...))
    ├──                Solid    at 0x7f4a11a52700, Location(...))
    └──                Solid    at 0x7f4a11a58550, Location(...))

パラメータ:

• limit_class -- type of displayed leaf node. Defaults to 'Vertex'.

• show_center (bool, optional) -- If None, shows the Location of Compound 'assemblies' and the bounding box center of Shapes. True or False forces the display. Defaults to None.

戻り値:

tree representation of internal structure

戻り値の型:

str

solid() → Solid

Return the Solid

solids() → ShapeList[Solid]

solids - all the solids in this Shape

split(tool: TrimmingTool, keep: Literal[Keep.TOP, Keep.BOTTOM]) → Self | list[Self] | None

split(tool: TrimmingTool, keep: Literal[Keep.ALL]) → list[Self]

split(tool: TrimmingTool, keep: Literal[Keep.BOTH]) → tuple[Self | list[Self] | None, Self | list[Self] | None]

split(tool: TrimmingTool, keep: Literal[Keep.INSIDE, Keep.OUTSIDE]) → None

split(tool: TrimmingTool) → Self | list[Self] | None

split

Split this shape by the provided plane or face.

パラメータ:

• surface (Plane | Face) -- surface to segment shape

• keep (Keep, optional) -- which object(s) to save. Defaults to Keep.TOP.

戻り値:

result of split

戻り値の型:

Shape

戻り値:

Self | list[Self] | None, Tuple[Self | list[Self] | None]: The result of the split operation.

• Keep.TOP: Returns the top as a Self or list[Self], or None if no top is found.

• Keep.BOTTOM: Returns the bottom as a Self or list[Self], or None if no bottom is found.

• Keep.BOTH: Returns a tuple (inside, outside) where each element is either a Self or list[Self], or None if no corresponding part is found.

split_by_perimeter(perimeter: Edge | Wire, keep: Literal[Keep.INSIDE, Keep.OUTSIDE]) → Face | Shell | ShapeList[Face] | None

split_by_perimeter(perimeter: Edge | Wire, keep: Literal[Keep.BOTH]) → tuple[Face | Shell | ShapeList[Face] | None, Face | Shell | ShapeList[Face] | None]

split_by_perimeter(perimeter: Edge | Wire) → Face | Shell | ShapeList[Face] | None

split_by_perimeter

Divide the faces of this object into those within the perimeter and those outside the perimeter.

Note: this method may fail if the perimeter intersects shape edges.

パラメータ:

• perimeter (Union[Edge,Wire]) -- closed perimeter

• keep (Keep, optional) -- which object(s) to return. Defaults to Keep.INSIDE.

例外:

• ValueError -- perimeter must be closed

• ValueError -- keep must be one of Keep.INSIDE|OUTSIDE|BOTH

戻り値:

Union[Face | Shell | ShapeList[Face] | None, Tuple[Face | Shell | ShapeList[Face] | None]: The result of the split operation.

• Keep.INSIDE: Returns the inside part as a Shell or Face, or None if no inside part is found.

• Keep.OUTSIDE: Returns the outside part as a Shell or Face, or None if no outside part is found.

• Keep.BOTH: Returns a tuple (inside, outside) where each element is either a Shell, Face, or None if no corresponding part is found.

property static_moments: tuple[float, float, float]

Compute the static moments (first moments of mass) of the shape.

The static moments represent the weighted sum of the coordinates with respect to the mass distribution, providing insight into the center of mass and mass distribution of the shape.

戻り値:

The static moments (Mx, My, Mz), where: - Mx is the first moment of mass about the YZ plane. - My is the first moment of mass about the XZ plane. - Mz is the first moment of mass about the XY plane.

戻り値の型:

tuple[float, float, float]

サンプル

>>> obj = MyShape()
>>> obj.static_moments
(150.0, 200.0, 50.0)

tessellate(tolerance: float, angular_tolerance: float = 0.1) → tuple[list[Vector], list[tuple[int, int, int]]]

General triangulated approximation

to_splines(degree: int = 3, tolerance: float = 0.001, nurbs: bool = False) → Self

A shape-processing utility that forces all geometry in a shape to be converted into BSplines. It's useful when working with tools or export formats that require uniform geometry, or for downstream processing that only understands BSpline representations.

パラメータ:

• degree (int, optional) -- Maximum degree. Defaults to 3.

• tolerance (float, optional) -- Approximation tolerance. Defaults to 1e-3.

• nurbs (bool, optional) -- Use rational splines. Defaults to False.

戻り値:

Approximated shape

戻り値の型:

Self

touch(other: Shape, tolerance: float = 1e-06) → ShapeList

Find boundary contacts between this shape and another.

Base implementation returns empty ShapeList. Subclasses (Mixin2D, Mixin3D, Compound) override this to provide actual touch detection.

パラメータ:

• other -- Shape to find contacts with

• tolerance -- tolerance for contact detection

戻り値:

ShapeList of contact shapes (empty for base implementation)

transform_geometry(t_matrix: Matrix) → Self

Apply affine transform

WARNING: transform_geometry will sometimes convert lines and circles to splines, but it also has the ability to handle skew and stretching transformations.

If your transformation is only translation and rotation, it is safer to use transform_shape(), which doesn't change the underlying type of the geometry, but cannot handle skew transformations.

パラメータ:

t_matrix (Matrix) -- affine transformation matrix

戻り値:

a copy of the object, but with geometry transformed

戻り値の型:

Shape

transform_shape(t_matrix: Matrix) → Self

Apply affine transform without changing type

Transforms a copy of this Shape by the provided 3D affine transformation matrix. Note that not all transformation are supported - primarily designed for translation and rotation. See :transform_geometry: for more comprehensive transformations.

パラメータ:

t_matrix (Matrix) -- affine transformation matrix

戻り値:

copy of transformed shape with all objects keeping their type

戻り値の型:

Shape

transformed(rotate: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 0), offset: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] = (0, 0, 0)) → Self

Transform Shape

Rotate and translate the Shape by the three angles (in degrees) and offset.

パラメータ:

• rotate (VectorLike, optional) -- 3-tuple of angles to rotate, in degrees. Defaults to (0, 0, 0).

• offset (VectorLike, optional) -- 3-tuple to offset. Defaults to (0, 0, 0).

戻り値:

transformed object

戻り値の型:

Shape

translate(vector: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], transform: bool = False) → Self

Translates this shape through a transformation.

パラメータ:

• vector (VectorLike) -- relative movement vector

• transform (bool) -- regenerate the shape instead of just changing its location Defaults to False.

戻り値:

object with a relative move applied

vertex() → Vertex

Return the Vertex

vertices() → ShapeList[Vertex]

vertices - all the vertices in this Shape

wire() → Wire

Return the Wire

wires() → ShapeList[Wire]

wires - all the wires in this Shape

property wrapped

OCP TopoDS object

class ShapeList(iterable=(), /)

Subclass of list with custom filter and sort methods appropriate to CAD

__and__(other: ShapeList) → ShapeList[T]

Intersect two ShapeLists operator &

__getitem__(key: SupportsIndex) → T

__getitem__(key: slice) → ShapeList[T]

Return slices of ShapeList as ShapeList

__gt__(sort_by: Axis | SortBy = Axis((0, 0, 0), (0, 0, 1))) → ShapeList[T]

Sort operator >

__lshift__(group_by: Axis | SortBy = Axis((0, 0, 0), (0, 0, 1))) → ShapeList[T]

Group and select smallest group operator <<

__lt__(sort_by: Axis | SortBy = Axis((0, 0, 0), (0, 0, 1))) → ShapeList[T]

Reverse sort operator <

__or__(filter_by: Axis | GeomType = Axis((0, 0, 0), (0, 0, 1))) → ShapeList[T]

Filter by axis or geomtype operator |

__rshift__(group_by: Axis | SortBy = Axis((0, 0, 0), (0, 0, 1))) → ShapeList[T]

Group and select largest group operator >>

__sub__(other: ShapeList) → ShapeList[T]

Differences between two ShapeLists operator -

center() → Vector

The average of the center of objects within the ShapeList

compound() → Compound

Return the Compound

compounds() → ShapeList[Compound]

compounds - all the compounds in this ShapeList

edge() → Edge

Return the Edge

edges() → ShapeList[Edge]

edges - all the edges in this ShapeList

expand() → ShapeList

Expand by dissolving compounds, wires, and shells, filtering nulls.

戻り値:

ShapeList with compounds dissolved to children, wires to edges, shells to faces, and nulls filtered out

face() → Face

Return the Face

faces() → ShapeList[Face]

faces - all the faces in this ShapeList

filter_by(filter_by: Callable[[T], bool] | Axis | Plane | GeomType | property, reverse: bool = False, tolerance: float = 1e-05) → ShapeList[T]

filter by

Either: - filter objects of type planar Face or linear Edge by their normal or tangent (respectively) and sort the results by the given axis, or - filter the objects by the provided type. Note that not all types apply to all objects.

パラメータ:

• filter_by (Callable[[T], bool] | Axis | Plane | GeomType) -- function, axis, plane, or geom type to filter and possibly sort by. Filtering by a plane returns faces/edges parallel to that plane.

• reverse (bool, optional) -- invert the geom type filter. Defaults to False.

• tolerance (float, optional) -- maximum deviation from axis. Defaults to 1e-5.

例外:

ValueError -- Invalid filter_by type

戻り値:

filtered list of objects

戻り値の型:

ShapeList

filter_by_position(axis: Axis, minimum: float, maximum: float, inclusive: tuple[bool, bool] = (True, True)) → ShapeList[T]

filter by position

Filter and sort objects by the position of their centers along given axis. min and max values can be inclusive or exclusive depending on the inclusive tuple.

パラメータ:

• axis (Axis) -- axis to sort by

• minimum (float) -- minimum value

• maximum (float) -- maximum value

• inclusive (tuple[bool, bool], optional) -- include min,max values. Defaults to (True, True).

戻り値:

filtered object list

戻り値の型:

ShapeList

property first: T

First element in the ShapeList

group_by(group_by: Callable[[T], K] | Axis | Edge | Wire | SortBy | property = Axis((0, 0, 0), (0, 0, 1)), reverse: bool = False, tol_digits: int = 6) → GroupBy[T, K]

group by

Group objects by provided criteria and then sort the groups according to the criteria. Note that not all group_by criteria apply to all objects.

パラメータ:

• (Callable[[T] (group_by) -- optional): group and sort criteria. Defaults to Axis.Z.

• property (K] | Axis | Edge | Wire | SortBy |) -- optional): group and sort criteria. Defaults to Axis.Z.

:param : optional): group and sort criteria. Defaults to Axis.Z. :param reverse: flip order of sort. Defaults to False. :type reverse: bool, optional :param tol_digits: Tolerance for building the group keys by

round(key, tol_digits)

戻り値:

sorted groups of ShapeLists

戻り値の型:

GroupBy[T, K]

property last: T

Last element in the ShapeList

shell() → Shell

Return the Shell

shells() → ShapeList[Shell]

shells - all the shells in this ShapeList

solid() → Solid

Return the Solid

solids() → ShapeList[Solid]

solids - all the solids in this ShapeList

sort_by(sort_by: Callable[[T], K] | Axis | Edge | Wire | SortBy | property = Axis((0, 0, 0), (0, 0, 1)), reverse: bool = False) → ShapeList[T]

sort by

Sort objects by provided criteria. Note that not all sort_by criteria apply to all objects.

パラメータ:

• (Callable[[T] (sort_by) -- optional): sort criteria. Defaults to Axis.Z.

• property (K] | Axis | Edge | Wire | SortBy |) -- optional): sort criteria. Defaults to Axis.Z.

:param : optional): sort criteria. Defaults to Axis.Z. :param reverse: flip order of sort. Defaults to False. :type reverse: bool, optional

例外:

• ValueError -- Cannot sort by an empty axis

• ValueError -- Cannot sort by an empty object

• ValueError -- Invalid sort_by criteria provided

戻り値:

sorted list of objects

戻り値の型:

ShapeList

sort_by_distance(other: Shape | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], reverse: bool = False) → ShapeList[T]

Sort by distance

Sort by minimal distance between objects and other

パラメータ:

• other (Union[Shape,VectorLike]) -- reference object

• reverse (bool, optional) -- flip order of sort. Defaults to False.

戻り値:

Sorted shapes

戻り値の型:

ShapeList

vertex() → Vertex

Return the Vertex

vertices() → ShapeList[Vertex]

vertices - all the vertices in this ShapeList

wire() → Wire

Return the Wire

wires() → ShapeList[Wire]

wires - all the wires in this ShapeList

class Shell(obj: TopoDS_Shell | Face | Iterable[Face] | None = None, label: str = '', color: Color | None = None, parent: Compound | None = None)

A Shell is a fundamental component in build123d's topological data structure representing a connected set of faces forming a closed surface in 3D space. As part of a geometric model, it defines a watertight enclosure, commonly encountered in solid modeling. Shells group faces in a coherent manner, playing a crucial role in representing complex shapes with voids and surfaces. This hierarchical structure allows for efficient handling of surfaces within a model, supporting various operations and analyses.

center() → Vector

Center of mass of the shell

classmethod extrude(obj: Wire, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Shell

Extrude a Wire into a Shell.

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Edge

location_at(surface_point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], *, x_dir: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Location

Get the location (origin and orientation) on the surface of the shell.

パラメータ:

• surface_point (VectorLike) -- A 3D point near the surface.

• x_dir (VectorLike, optional) -- Direction for the local X axis. If not given, the tangent in the U direction is used.

戻り値:

A full 3D placement at the specified point on the shell surface.

戻り値の型:

Location

classmethod make_loft(objs: Iterable[Vertex | Wire], ruled: bool = False) → Shell

make loft

Makes a loft from a list of wires and vertices. Vertices can appear only at the beginning or end of the list, but cannot appear consecutively within the list nor between wires. Wires may be closed or opened.

パラメータ:

• objs (list[Vertex, Wire]) -- wire perimeters or vertices

• ruled (bool, optional) -- stepped or smooth. Defaults to False (smooth).

例外:

ValueError -- Too few wires

戻り値:

Lofted object

戻り値の型:

Shell

order = 2.5

classmethod revolve(profile: Curve | Wire, angle: float, axis: Axis) → Face

sweep

Revolve a 1D profile around an axis.

パラメータ:

• profile (Curve | Wire) -- the object to revolve

• angle (float) -- the angle to revolve through

• axis (Axis) -- rotation Axis

戻り値:

resulting shell

戻り値の型:

Shell

classmethod sweep(profile: Curve | Edge | Wire, path: Curve | Edge | Wire, transition=<Transition.TRANSFORMED>) → Shell

Sweep a 1D profile along a 1D path

パラメータ:

• profile (Union[Curve, Edge, Wire]) -- the object to sweep

• path (Union[Curve, Edge, Wire]) -- the path to follow when sweeping

• transition (Transition, optional) -- handling of profile orientation at C1 path discontinuities. Defaults to Transition.TRANSFORMED.

戻り値:

resulting Shell, may be non-planar

戻り値の型:

Shell

property volume: float

volume - the volume of this Shell if manifold, otherwise zero

class Solid(obj: TopoDS_Solid | Shell | None = None, label: str = '', color: Color | None = None, material: str = '', joints: dict[str, Joint] | None = None, parent: Compound | None = None)

A Solid in build123d represents a three-dimensional solid geometry in a topological structure. A solid is a closed and bounded volume, enclosing a region in 3D space. It comprises faces, edges, and vertices connected in a well-defined manner. Solid modeling operations, such as Boolean operations (union, intersection, and difference), are often performed on Solid objects to create or modify complex geometries.

draft(faces: Iterable[Face], neutral_plane: Plane, angle: float) → Solid

Apply a draft angle to the given faces of the solid.

パラメータ:

• faces -- Faces to which the draft should be applied.

• neutral_plane -- Plane defining the neutral direction and position.

• angle -- Draft angle in degrees.

戻り値:

Solid with the specified draft angles applied.

例外:

RuntimeError -- If draft application fails on any face or during build.

classmethod extrude(obj: Face, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Solid

Extrude a Face into a Solid.

パラメータ:

direction (VectorLike) -- direction and magnitude of extrusion

例外:

• ValueError -- Unsupported class

• RuntimeError -- Generated invalid result

戻り値:

extruded shape

戻り値の型:

Edge

classmethod extrude_linear_with_rotation(section: Face | Wire, center: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], normal: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], angle: float, inner_wires: list[Wire] | None = None) → Solid

Extrude with Rotation

Creates a 'twisted prism' by extruding, while simultaneously rotating around the extrusion vector.

パラメータ:

• section (Union[Face,Wire]) -- cross section

• vec_center (VectorLike) -- the center point about which to rotate

• vec_normal (VectorLike) -- a vector along which to extrude the wires

• angle (float) -- the angle to rotate through while extruding

• inner_wires (list[Wire], optional) -- holes - only used if section is of type Wire. Defaults to None.

戻り値:

extruded object

戻り値の型:

Solid

classmethod extrude_taper(profile: Face, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], taper: float, flip_inner: bool = True) → Solid

Extrude a cross section with a taper

Extrude a cross section into a prismatic solid in the provided direction.

Note that two difference algorithms are used. If direction aligns with the profile normal (which must be positive), the taper is positive and the profile contains no holes the OCP LocOpe_DPrism algorithm is used as it generates the most accurate results. Otherwise, a loft is created between the profile and the profile with a 2D offset set at the appropriate direction.

パラメータ:

• section (Face]) -- cross section

• normal (VectorLike) -- a vector along which to extrude the wires. The length of the vector controls the length of the extrusion.

• taper (float) -- taper angle in degrees.

• flip_inner (bool, optional) -- outer and inner geometry have opposite tapers to allow for part extraction when injection molding.

戻り値:

extruded cross section

戻り値の型:

Solid

classmethod extrude_until(profile: Face, target: Compound | Solid, direction: VectorLike, until: Until = <Until.NEXT>) → Solid

Extrude profile in the provided direction until it encounters a bounding surface on the target. The termination surface is chosen according to the until option:

• Until.NEXT — Extrude forward until the first intersecting surface.

• Until.LAST — Extrude forward through all intersections, stopping at

the farthest surface. * Until.PREVIOUS — Reverse the extrusion direction and stop at the first intersecting surface behind the profile. * Until.FIRST — Reverse the direction and stop at the farthest surface behind the profile.

When Until.PREVIOUS or Until.FIRST are used, the extrusion direction is automatically inverted before execution.

注釈

The bounding surface on the target must be large enough to completely cover the extruded profile at the contact region. Partial overlaps may yield open or invalid solids.

パラメータ:

• profile (Face) -- The face to extrude.

• target (Union[Compound, Solid]) -- The object that limits the extrusion.

• direction (VectorLike) -- Extrusion direction.

• until (Until, optional) -- Surface selection mode controlling which intersection to stop at. Defaults to Until.NEXT.

例外:

ValueError -- If the provided profile does not intersect the target.

戻り値:

The extruded and limited solid.

戻り値の型:

Solid

classmethod from_bounding_box(bbox: BoundBox | OrientedBoundBox) → Solid

A box of the same dimensions and location

classmethod make_box(length: float, width: float, height: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Solid

make box

Make a box at the origin of plane extending in positive direction of each axis.

パラメータ:

• length (float)

• width (float)

• height (float)

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

戻り値:

Box

戻り値の型:

Solid

classmethod make_cone(base_radius: float, top_radius: float, height: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), angle: float = 360) → Solid

make cone

Make a cone with given radii and height

パラメータ:

• base_radius (float)

• top_radius (float)

• height (float)

• plane (Plane) -- base plane. Defaults to Plane.XY.

• angle (float, optional) -- arc size. Defaults to 360.

戻り値:

Full or partial cone

戻り値の型:

Solid

classmethod make_cylinder(radius: float, height: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), angle: float = 360) → Solid

make cylinder

Make a cylinder with a given radius and height with the base center on plane origin.

パラメータ:

• radius (float)

• height (float)

• plane (Plane) -- base plane. Defaults to Plane.XY.

• angle (float, optional) -- arc size. Defaults to 360.

戻り値:

Full or partial cylinder

戻り値の型:

Solid

classmethod make_loft(objs: Iterable[Vertex | Wire], ruled: bool = False) → Solid

make loft

Makes a loft from a list of wires and vertices. Vertices can appear only at the beginning or end of the list, but cannot appear consecutively within the list nor between wires.

パラメータ:

• objs (list[Vertex, Wire]) -- wire perimeters or vertices

• ruled (bool, optional) -- stepped or smooth. Defaults to False (smooth).

例外:

ValueError -- Too few wires

戻り値:

Lofted object

戻り値の型:

Solid

classmethod make_sphere(radius: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), angle1: float = -90, angle2: float = 90, angle3: float = 360) → Solid

Sphere

Make a full or partial sphere - with a given radius center on the origin or plane.

パラメータ:

• radius (float)

• plane (Plane) -- base plane. Defaults to Plane.XY.

• angle1 (float, optional) -- Defaults to -90.

• angle2 (float, optional) -- Defaults to 90.

• angle3 (float, optional) -- Defaults to 360.

戻り値:

sphere

戻り値の型:

Solid

classmethod make_torus(major_radius: float, minor_radius: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 0, end_angle: float = 360, major_angle: float = 360) → Solid

make torus

Make a torus with a given radii and angles

パラメータ:

• major_radius (float)

• minor_radius (float)

• plane (Plane) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- start major arc. Defaults to 0.

• end_angle (float, optional) -- end major arc. Defaults to 360.

戻り値:

Full or partial torus

戻り値の型:

Solid

classmethod make_wedge(delta_x: float, delta_y: float, delta_z: float, min_x: float, min_z: float, max_x: float, max_z: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Solid

Make a wedge

パラメータ:

• delta_x (float)

• delta_y (float)

• delta_z (float)

• min_x (float)

• min_z (float)

• max_x (float)

• max_z (float)

• plane (Plane) -- base plane. Defaults to Plane.XY.

戻り値:

wedge

戻り値の型:

Solid

order = 3.0

classmethod revolve(section: Face | Wire, angle: float, axis: Axis, inner_wires: list[Wire] | None = None) → Solid

Revolve

Revolve a cross section about the given Axis by the given angle.

パラメータ:

• section (Union[Face,Wire]) -- cross section

• angle (float) -- the angle to revolve through

• axis (Axis) -- rotation Axis

• inner_wires (list[Wire], optional) -- holes - only used if section is of type Wire. Defaults to [].

戻り値:

the revolved cross section

戻り値の型:

Solid

classmethod sweep(section: ~topology.two_d.Face | ~topology.one_d.Wire, path: ~topology.one_d.Wire | ~topology.one_d.Edge, inner_wires: list[~topology.one_d.Wire] | None = None, make_solid: bool = True, is_frenet: bool = False, mode: ~build123d.geometry.Vector | ~topology.one_d.Wire | ~topology.one_d.Edge | None = None, transition: ~build123d.build_enums.Transition = <Transition.TRANSFORMED>) → Solid

Sweep

Sweep the given cross section into a prismatic solid along the provided path

The is_frenet parameter controls how the profile orientation changes as it follows along the sweep path. If is_frenet is False, the orientation of the profile is kept consistent from point to point. The resulting shape has the minimum possible twisting. Unintuitively, when a profile is swept along a helix, this results in the orientation of the profile slowly creeping (rotating) as it follows the helix. Setting is_frenet to True prevents this.

If is_frenet is True the orientation of the profile is based on the local curvature and tangency vectors of the path. This keeps the orientation of the profile consistent when sweeping along a helix (because the curvature vector of a straight helix always points to its axis). However, when path is not a helix, the resulting shape can have strange looking twists sometimes. For more information, see Frenet Serret formulas http://en.wikipedia.org/wiki/Frenet%E2%80%93Serret_formulas.

パラメータ:

• section (Union[Face, Wire]) -- cross section to sweep

• path (Union[Wire, Edge]) -- sweep path

• inner_wires (list[Wire]) -- holes - only used if section is a wire

• make_solid (bool, optional) -- return Solid or Shell. Defaults to True.

• is_frenet (bool, optional) -- Frenet mode. Defaults to False.

• mode (Union[Vector, Wire, Edge, None], optional) -- additional sweep mode parameters. Defaults to None.

• transition (Transition, optional) -- handling of profile orientation at C1 path discontinuities. Defaults to Transition.TRANSFORMED.

戻り値:

the swept cross section

戻り値の型:

Solid

classmethod sweep_multi(profiles: Iterable[Wire | Face], path: Wire | Edge, make_solid: bool = True, is_frenet: bool = False, binormal: Vector | Wire | Edge | None = None) → Solid

Multi section sweep

Sweep through a sequence of profiles following a path.

The is_frenet parameter controls how the profile orientation changes as it follows along the sweep path. If is_frenet is False, the orientation of the profile is kept consistent from point to point. The resulting shape has the minimum possible twisting. Unintuitively, when a profile is swept along a helix, this results in the orientation of the profile slowly creeping (rotating) as it follows the helix. Setting is_frenet to True prevents this.

If is_frenet is True the orientation of the profile is based on the local curvature and tangency vectors of the path. This keeps the orientation of the profile consistent when sweeping along a helix (because the curvature vector of a straight helix always points to its axis). However, when path is not a helix, the resulting shape can have strange looking twists sometimes. For more information, see Frenet Serret formulas http://en.wikipedia.org/wiki/Frenet%E2%80%93Serret_formulas.

パラメータ:

• profiles (Iterable[Union[Wire, Face]]) -- list of profiles

• path (Union[Wire, Edge]) -- The wire to sweep the face resulting from the wires over

• make_solid (bool, optional) -- Solid or Shell. Defaults to True.

• is_frenet (bool, optional) -- Select frenet mode. Defaults to False.

• binormal (Union[Vector, Wire, Edge, None], optional) -- additional sweep mode parameters. Defaults to None.

戻り値:

swept object

戻り値の型:

Solid

classmethod thicken(surface: Face | Shell, depth: float, normal_override: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → Solid

Thicken Face or Shell

Create a solid from a potentially non planar face or shell by thickening along the normals.

Non-planar faces are thickened both towards and away from the center of the sphere.

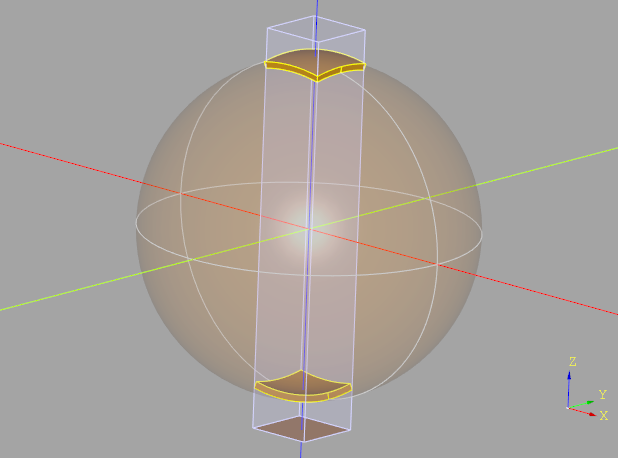

パラメータ:

• depth (float) -- Amount to thicken face(s), can be positive or negative.

• normal_override (Vector, optional) -- Face only. The normal_override vector can be used to indicate which way is 'up', potentially flipping the face normal direction such that many faces with different normals all go in the same direction (direction need only be +/- 90 degrees from the face normal). Defaults to None.

例外:

RuntimeError -- Opencascade internal failures

戻り値:

The resulting Solid object

戻り値の型:

Solid

touch(other: Shape, tolerance: float = 1e-06, found_solids: ShapeList | None = None) → ShapeList[Vertex | Edge | Face]

Find where this Solid's boundary contacts another shape.

Returns geometry where boundaries contact without interior overlap: - Solid + Solid → Face + Edge + Vertex (all boundary contacts) - Solid + Face/Shell → Face + Edge + Vertex (boundary contacts) - Solid + Edge/Wire → Vertex (edge endpoints on solid boundary) - Solid + Vertex → Vertex if on boundary - Solid + Compound → distributes over compound elements

パラメータ:

• other -- Shape to check boundary contacts with

• tolerance -- tolerance for contact detection

• found_solids -- pre-found intersection solids to filter against

戻り値:

ShapeList of boundary contact geometry (empty if no contact)

property volume: float

volume - the volume of this Solid

class Wire(obj: TopoDS_Wire, label: str = '', color: Color | None = None, parent: Compound | None = None)

class Wire(edge: Edge, label: str = '', color: Color | None = None, parent: Compound | None = None)

class Wire(wire: Wire, label: str = '', color: Color | None = None, parent: Compound | None = None)

class Wire(wire: Curve, label: str = '', color: Color | None = None, parent: Compound | None = None)

class Wire(edges: Iterable[Edge], sequenced: bool = False, label: str = '', color: Color | None = None, parent: Compound | None = None)

A Wire in build123d is a topological entity representing a connected sequence of edges forming a continuous curve or path in 3D space. Wires are essential components in modeling complex objects, defining boundaries for surfaces or solids. They store information about the connectivity and order of edges, allowing precise definition of paths within a 3D model.

chamfer_2d(distance: float, distance2: float, vertices: Iterable[Vertex], edge: Edge | None = None) → Wire

Apply 2D chamfer to a wire

パラメータ:

• distance (float) -- chamfer length

• distance2 (float) -- chamfer length

• vertices (Iterable[Vertex]) -- vertices to chamfer

• edge (Edge) -- identifies the side where length is measured. The vertices must be part of the edge

戻り値:

chamfered wire

戻り値の型:

Wire

close() → Wire

Close a Wire

classmethod combine(wires: Iterable[Wire | Edge], tol: float = 1e-09) → ShapeList[Wire]

Combine a list of wires and edges into a list of Wires.

パラメータ:

• wires (Iterable[Wire | Edge]) -- unsorted

• tol (float, optional) -- tolerance. Defaults to 1e-9.

戻り値:

Wires

戻り値の型:

ShapeList[Wire]

edges() → ShapeList[Edge]

edges - all the edges in this Shape

classmethod extrude(obj: Shape, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Wire

extrude - invalid operation for Wire

fillet_2d(radius: float, vertices: Iterable[Vertex]) → Wire

Apply 2D fillet to a wire

パラメータ:

• radius (float)

• vertices (Iterable[Vertex]) -- vertices to fillet

例外:

• RuntimeError -- Internal error

• ValueError -- empty wire

戻り値:

filleted wire

戻り値の型:

Wire

fix_degenerate_edges(precision: float) → Wire

Fix a Wire that contains degenerate (very small) edges

パラメータ:

precision (float) -- minimum value edge length

戻り値:

fixed wire

戻り値の型:

Wire

geom_adaptor() → BRepAdaptor_CompCurve

Return the Geom Comp Curve for this Wire

geom_equal(other: Wire, tol: float = 1e-06, num_interpolation_points: int = 5) → bool

Compare two wires for geometric equality within tolerance.

This compares the geometric properties of two wires by comparing their constituent edges pairwise. Two independently created wires with the same geometry will return True.

パラメータ:

• other -- Wire to compare with

• tol -- Tolerance for numeric comparisons. Defaults to 1e-6.

• num_interpolation_points -- Number of points to sample for unknown curve types. Defaults to 5.

戻り値:

True if wires are geometrically equal within tolerance

戻り値の型:

bool

classmethod make_circle(radius: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Wire

Makes a circle centered at the origin of plane

パラメータ:

• radius (float) -- circle radius

• plane (Plane) -- base plane. Defaults to Plane.XY

戻り値:

a circle

戻り値の型:

Wire

classmethod make_convex_hull(edges: Iterable[Edge], tolerance: float = 0.001) → Wire

Create a wire of minimum length enclosing all of the provided edges.

Note that edges can't overlap each other.

パラメータ:

• edges (Iterable[Edge]) -- edges defining the convex hull

• tolerance (float) -- allowable error as a fraction of each edge length. Defaults to 1e-3.

例外:

ValueError -- edges overlap

戻り値:

convex hull perimeter

戻り値の型:

Wire

classmethod make_ellipse(x_radius: float, y_radius: float, plane: ~build123d.geometry.Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1)), start_angle: float = 360.0, end_angle: float = 360.0, angular_direction: ~build123d.build_enums.AngularDirection = <AngularDirection.COUNTER_CLOCKWISE>, closed: bool = True) → Wire

make ellipse

Makes an ellipse centered at the origin of plane.

パラメータ:

• x_radius (float) -- x radius of the ellipse (along the x-axis of plane)

• y_radius (float) -- y radius of the ellipse (along the y-axis of plane)

• plane (Plane, optional) -- base plane. Defaults to Plane.XY.

• start_angle (float, optional) -- _description_. Defaults to 360.0.

• end_angle (float, optional) -- _description_. Defaults to 360.0.

• angular_direction (AngularDirection, optional) -- arc direction. Defaults to AngularDirection.COUNTER_CLOCKWISE.

• closed (bool, optional) -- close the arc. Defaults to True.

戻り値:

an ellipse

戻り値の型:

Wire

classmethod make_polygon(vertices: Iterable[Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]], close: bool = True) → Wire

Create an irregular polygon by defining vertices

パラメータ:

• vertices (Iterable[VectorLike])

• close (bool, optional) -- close the polygon. Defaults to True.

戻り値:

an irregular polygon

戻り値の型:

Wire

classmethod make_rect(width: float, height: float, plane: Plane = Plane((0, 0, 0), (1, 0, 0), (0, 0, 1))) → Wire

Make Rectangle

Make a Rectangle centered on center with the given normal

パラメータ:

• width (float) -- width (local x)

• height (float) -- height (local y)

• plane (Plane, optional) -- plane containing rectangle. Defaults to Plane.XY.

戻り値:

The centered rectangle

戻り値の型:

Wire

order = 1.5

static order_chamfer_edges(reference_edge: Edge | None, edges: tuple[Edge, Edge]) → tuple[Edge, Edge]

Order the edges of a chamfer relative to a reference Edge

order_edges() → ShapeList[Edge]

Return the edges in self ordered by wire direction and orientation

param_at(position: float) → float

Return the OCCT comp-curve parameter corresponding to the given wire position. This is not the edge composite parameter; it is the parameter of the wire’s BRepAdaptor_CompCurve.

param_at_point(point: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → float

Return the normalized wire parameter for the point closest to this wire.

This method projects the given point onto the wire, finds the nearest edge, and accumulates arc lengths to determine the fractional position along the entire wire. The result is normalized to the interval [0.0, 1.0], where:

• 0.0 corresponds to the start of the wire

• 1.0 corresponds to the end of the wire

Unlike the edge version of this method, the returned value is not an OCCT curve parameter, but a normalized parameter across the wire as a whole.

パラメータ:

point (VectorLike) -- The point to project onto the wire.

例外:

ValueError -- Can't find point on empty wire

戻り値:

Normalized parameter in [0.0, 1.0] representing the relative position of the projected point along the wire.

戻り値の型:

float

project_to_shape(target_object: Shape, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None, center: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float] | None = None) → ShapeList[Wire]

Project Wire

Project a Wire onto a Shape generating new wires on the surfaces of the object one and only one of direction or center must be provided. Note that one or more wires may be generated depending on the topology of the target object and location/direction of projection.

To avoid flipping the normal of a face built with the projected wire the orientation of the output wires are forced to be the same as self.

パラメータ:

• target_object -- Object to project onto

• direction -- Parallel projection direction. Defaults to None.

• center -- Conical center of projection. Defaults to None.

• target_object -- Shape:

• direction -- VectorLike: (Default value = None)

• center -- VectorLike: (Default value = None)

戻り値:

Projected wire(s)

例外:

ValueError -- Only one of direction or center must be provided

stitch(other: Wire) → Wire

Attempt to stitch wires

パラメータ:

other (Wire) -- wire to combine

例外:

ValueError -- Can't stitch empty wires

戻り値:

stitched wires

戻り値の型:

Wire

to_wire() → Wire

Return Wire - used as a pair with Edge.to_wire when self is Wire | Edge

trim(start: float | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float], end: float | Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Wire

Trim a wire between [start, end] normalized over total length.

パラメータ:

• start (float | VectorLike) -- normalized start position (0.0 to <1.0) or point

• end (float | VectorLike) -- normalized end position (>0.0 to 1.0) or point

戻り値:

trimmed Wire

戻り値の型:

Wire

class Vertex

class Vertex(ocp_vx: TopoDS_Vertex)

class Vertex(X: float, Y: float, Z: float)

class Vertex(v: Iterable[float])

A Vertex in build123d represents a zero-dimensional point in the topological data structure. It marks the endpoints of edges within a 3D model, defining precise locations in space. Vertices play a crucial role in defining the geometry of objects and the connectivity between edges, facilitating accurate representation and manipulation of 3D shapes. They hold coordinate information and are essential for constructing complex structures like wires, faces, and solids.

__add__(other: Vertex | Vector | tuple[float, float, float]) → Vertex

Add

Add to a Vertex with a Vertex, Vector or Tuple

パラメータ:

other -- Value to add

例外:

TypeError -- other not in [Tuple,Vector,Vertex]

戻り値:

Result

サンプル

part.faces(">z").vertices("<y and <x").val() + (0, 0, 15)

which creates a new Vertex 15 above one extracted from a part. One can add or subtract a Vertex , Vector or tuple of float values to a Vertex.

__sub__(other: Vertex | Vector | tuple) → Vertex

Subtract

Subtract a Vertex with a Vertex, Vector or Tuple from self

パラメータ:

other -- Value to add

例外:

TypeError -- other not in [Tuple,Vector,Vertex]

戻り値:

Result

サンプル

part.faces(">z").vertices("<y and <x").val() - Vector(10, 0, 0)

classmethod cast(obj: TopoDS_Shape) → Self

Returns the right type of wrapper, given a OCCT object

center() → Vector

The center of a vertex is itself!

classmethod extrude(obj: Shape, direction: Vector | tuple[float, float] | tuple[float, float, float] | Sequence[float]) → Vertex

extrude - invalid operation for Vertex

order = 0.0

split(tool: TrimmingTool, keep: Keep = <Keep.TOP>)

split - not implemented

to_tuple() → tuple[float, float, float]

Return vertex as three tuple of floats

transform_shape(t_matrix: Matrix) → Vertex

Apply affine transform without changing type

Transforms a copy of this Vertex by the provided 3D affine transformation matrix. Note that not all transformation are supported - primarily designed for translation and rotation. See :transform_geometry: for more comprehensive transformations.

パラメータ:

t_matrix (Matrix) -- affine transformation matrix

戻り値:

copy of transformed shape with all objects keeping their type

戻り値の型:

Vertex

vertex() → Vertex

Return the Vertex

vertices() → ShapeList[Vertex]

vertices - all the vertices in this Shape

property volume: float

volume - the volume of this Vertex, which is always zero

class Curve(obj: TopoDS_Compound | Iterable[Shape] | None = None, label: str = '', color: Color | None = None, material: str = '', joints: dict[str, Joint] | None = None, parent: Compound | None = None, children: Sequence[Shape] | None = None)

A Compound containing 1D objects - aka Edges

__matmul__(position: float) → Vector

Position on curve operator @ - only works if continuous

__mod__(position: float) → Vector

Tangent on wire operator % - only works if continuous

wires() → ShapeList[Wire]

A list of wires created from the edges

class Part(obj: TopoDS_Compound | Iterable[Shape] | None = None, label: str = '', color: Color | None = None, material: str = '', joints: dict[str, Joint] | None = None, parent: Compound | None = None, children: Sequence[Shape] | None = None)

A Compound containing 3D objects - aka Solids

class Sketch(obj: TopoDS_Compound | Iterable[Shape] | None = None, label: str = '', color: Color | None = None, material: str = '', joints: dict[str, Joint] | None = None, parent: Compound | None = None, children: Sequence[Shape] | None = None)

A Compound containing 2D objects - aka Faces

Import/Export

Methods and functions specific to exporting and importing build123d objects are defined below.

import_brep(file_name: PathLike | str | bytes) → Shape

Import shape from a BREP file

パラメータ:

file_name (Union[PathLike, str, bytes]) -- brep file

例外:

ValueError -- file not found

戻り値:

build123d object

戻り値の型:

Shape

import_step(filename: PathLike | str | bytes) → Compound

Extract shapes from a STEP file and return them as a Compound object.

パラメータ:

file_name (Union[PathLike, str, bytes]) -- file path of STEP file to import

例外:

ValueError -- can't open file

戻り値:

contents of STEP file

戻り値の型:

Compound

import_stl(file_name: ~os.PathLike | str | bytes, model_unit: ~build123d.build_enums.Unit = <Unit.MM>) → Face

Extract shape from an STL file and return it as a Face reference object.

Note that importing with this method and creating a reference is very fast while creating an editable model (with Mesher) may take minutes depending on the size of the STL file.

パラメータ:

• file_name (Union[PathLike, str, bytes]) -- file path of STL file to import

• model_unit (Unit, optional) -- the default unit used when creating the model. For example, Blender defaults to Unit.M. Defaults to Unit.MM.

例外:

• ValueError -- Could not import file

• ValueError -- Invalid model_unit

戻り値:

STL model

戻り値の型:

Face

import_svg(svg_file: str | ~pathlib.Path | ~typing.TextIO, *, flip_y: bool = True, align: ~build123d.build_enums.Align | tuple[~build123d.build_enums.Align, ~build123d.build_enums.Align] | None = <Align.MIN>, ignore_visibility: bool = False, label_by: ~typing.Literal['id', 'class', 'inkscape:label'] | str = 'id', is_inkscape_label: bool | None = None) → ShapeList[Wire | Face]

パラメータ:

• svg_file (Union[str, Path, TextIO]) -- svg file

• flip_y (bool, optional) -- flip objects to compensate for svg orientation. Defaults to True.

• align (Align | tuple[Align, Align] | None, optional) -- alignment of the SVG's viewbox, if None, the viewbox's origin will be at (0,0,0). Defaults to Align.MIN.

• ignore_visibility (bool, optional) -- Defaults to False.

• label_by (str, optional) -- XML attribute to use for imported shapes' label property. Defaults to "id". Use inkscape:label to read labels set from Inkscape's "Layers and Objects" panel.

例外:

ValueError -- unexpected shape type

戻り値:

objects contained in svg

戻り値の型:

ShapeList[Union[Wire, Face]]

import_svg_as_buildline_code(file_name: PathLike | str | bytes, precision: int = 6) → tuple[str, str]

translate_to_buildline_code

Translate the contents of the given svg file into executable build123d/BuildLine code.

パラメータ:

• file_name (PathLike | str | bytes]) -- svg file name

• precision (int) -- # digits to round values to. Defaults to # digits in TOLERANCE

戻り値:

code, builder instance name

戻り値の型:

tuple[str, str]

Joint Object

Base Joint class which is used to position Solid and Compound objects relative to each other are defined below. The Joints section contains the class description of the derived Joint classes.

class Joint(label: str, parent: BuildPart | Solid | Compound)

Abstract Base Joint class - used to join two components together

パラメータ:

parent (Union[Solid, Compound]) -- object that joint to bound to

変数:

• label (str) -- user assigned label

• parent (Shape) -- object joint is bound to

• connected_to (Joint) -- joint that is connect to this joint

abstract connect_to(*args, **kwargs)

All derived classes must provide a connect_to method

abstract property location: Location

Location of joint

abstract relative_to(*args, **kwargs) → Location

Return relative location to another joint

abstract property symbol: Compound

A CAD object positioned in global space to illustrate the joint
